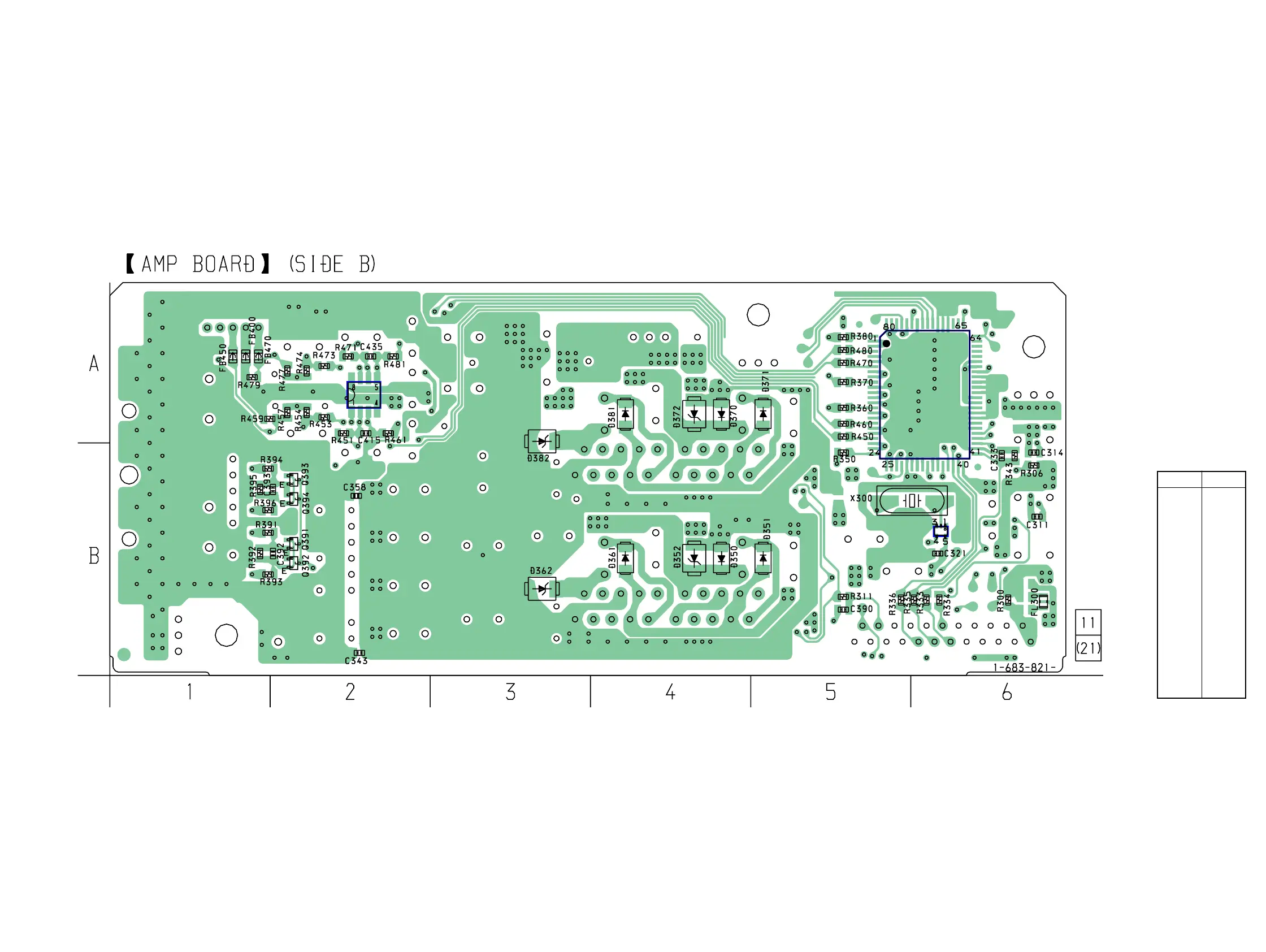

6-16. Printed Wiring Board AMP Section (Side B)
IC301
IC300
IC401
• See page 25 for Circuit Boards Location.
Ref. No. Location
D350 B-4
D351 B-5
D352 B-4
D361 B-4
D362 B-3
D370 A-4
D371 A-5
D372 A-4
D381 A-4
D382 A-3
IC300 A-6
IC301 B-6
IC401 A-2
Q391 B-2
Q392 B-2
Q393 B-2
Q394 B-2
• Semiconductor
Location
