54
HCD-L1
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

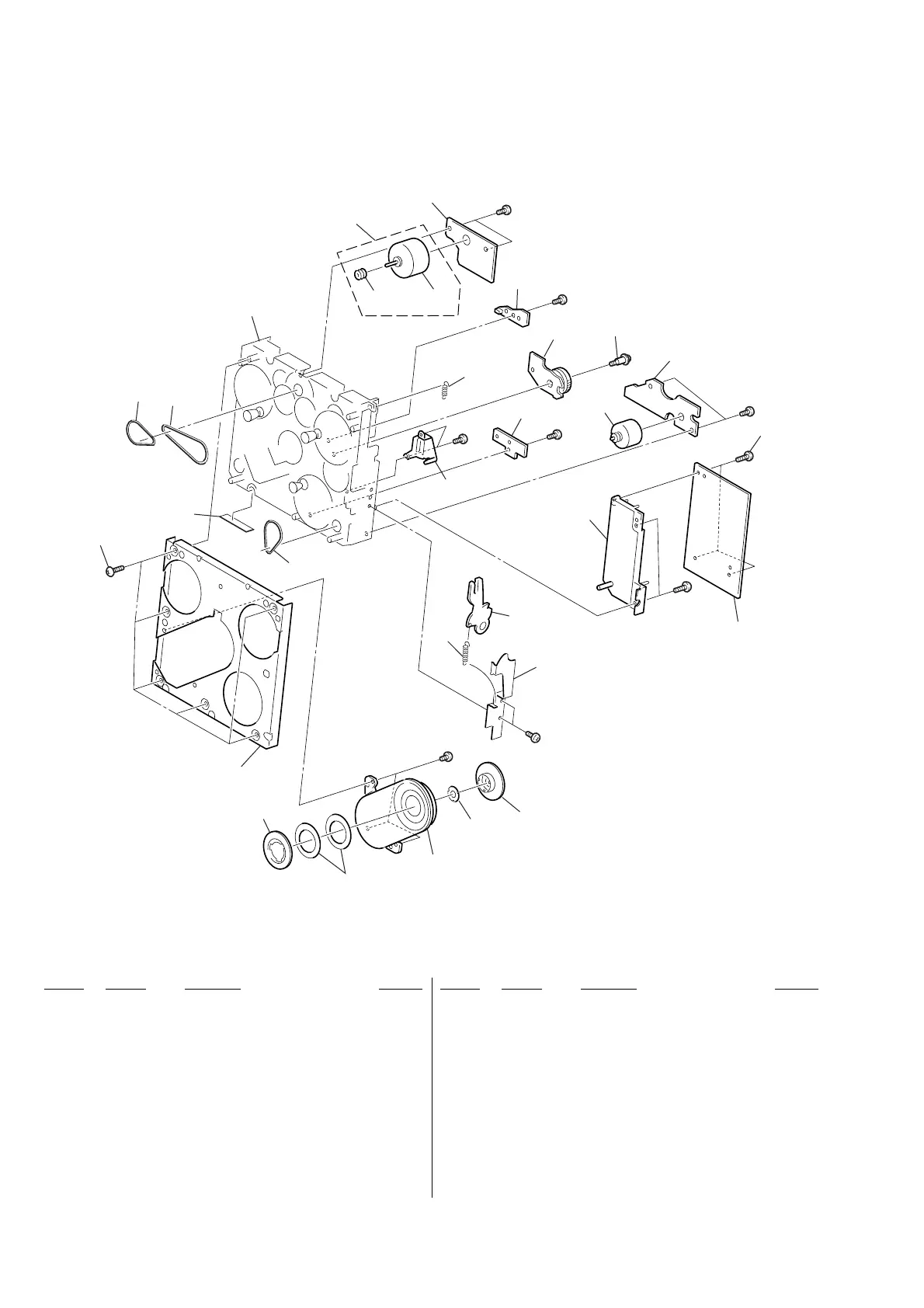

7-4. Mechanism Section(CDM71A)-1
not supplied
not supplied
not
supplied
M711
M701
not supplied
not supplied
not supplied not supplied
403
413
404
405
418
406
409
401
408
419
410
401
412
412
411
415
417
416
402
#5
#5
#5
#5
#5
#3
#5
#4
414
mechanism section
(CDM71A)-2
401 4-951-620-01 SCREW (2.6X8), +BVTP
402 4-237-947-01 BELT (ROLLER) (L)
403 A-4735-610-A MOTOR (LD) ASSY
404 1-683-912-12 D.SENSOR BOARD
405 1-683-914-11 ENCODER BOARD
406 4-238-836-01 SPRING (71M), TENSION
408 1-683-913-12 L.SENSOR BOARD
409 A-4728-106-A CD BOARD, COMPLETE
410 4-238-835-02 SPRING (71L), TENSION
411 4-237-428-01 SHEET (MG)
412 4-237-427-01 BELT (CDM71)
413 1-683-915-12 L.MOTOR BOARD
414 A-4728-283-A C MOTOR BOARD ,COMPLETE
415 4-237-426-02 COVER (AT)
416 4-237-425-02 PULLEY (AT)
417 4-237-416-02 HOLDER (AT)
418 4-239-618-01 SCREW (+PWH,2X6), STEP TAPPING
419 4-239-574-01 COVER (ENCODER)
M701 1-763-790-11 MOTOR, DC
M702 A-4735-611-A MOTOR (CK) ASSY
#4 7-685-860-04 SCREW +BVTT2.6X4 (S)
#5 7-685-133-19 SCREW +BTP2.6X6 TYPE2 N-S
