2626
HCD-L1

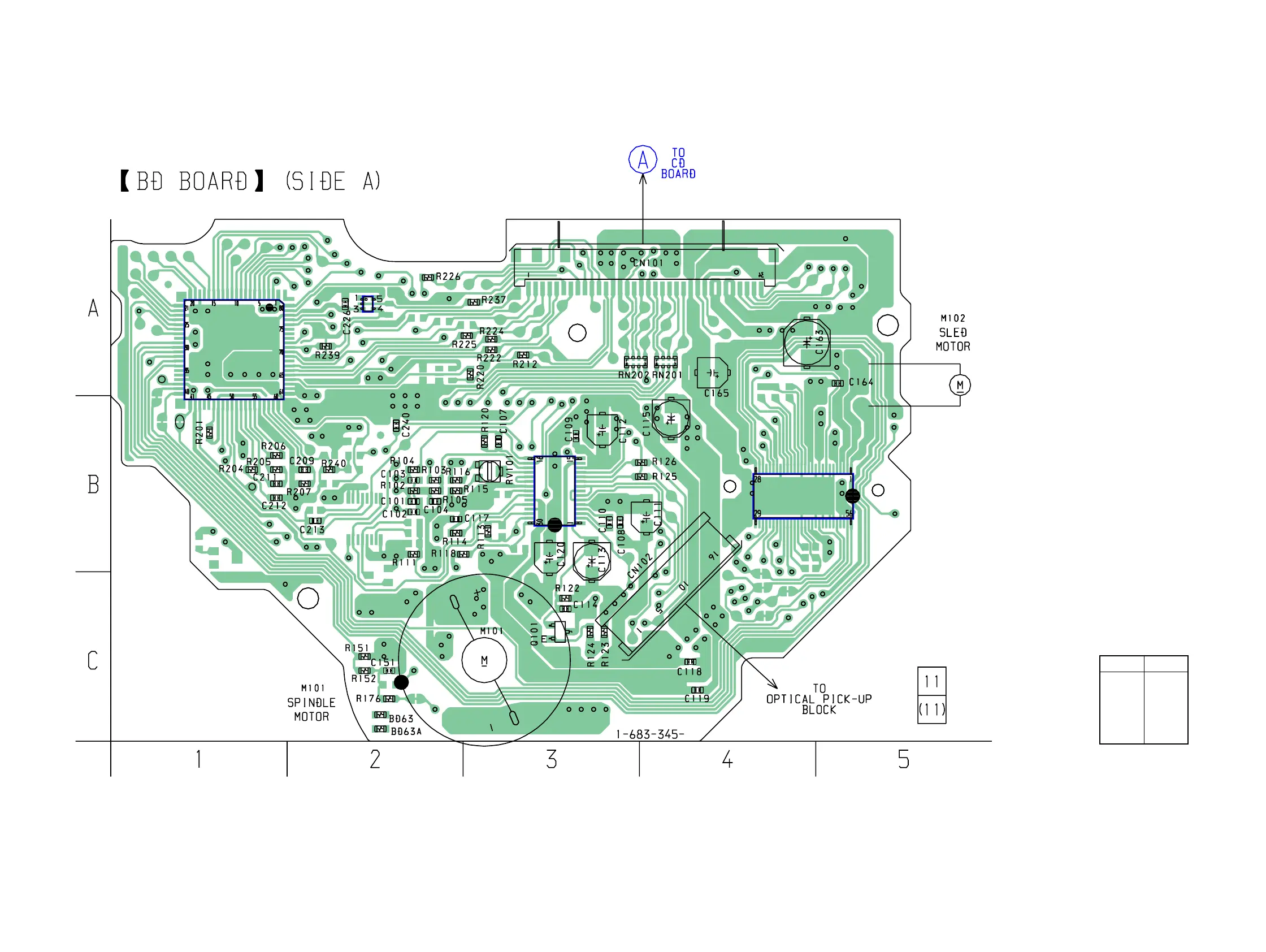

6-3. Printed Wiring Board BD Section (Side A)
(Page 31)
IC101
IC106
IC103
IC102
(BLK)
(RED)
TP(RFAC)
TP(DVC)
TP(TE)
Ref. No. Location
IC101 A-1
IC102 B-4
IC103 B-3
IC106 A-2
Q101 C-3
• Semiconductor
Location
• See page 25 for Circuit Boards Location.
