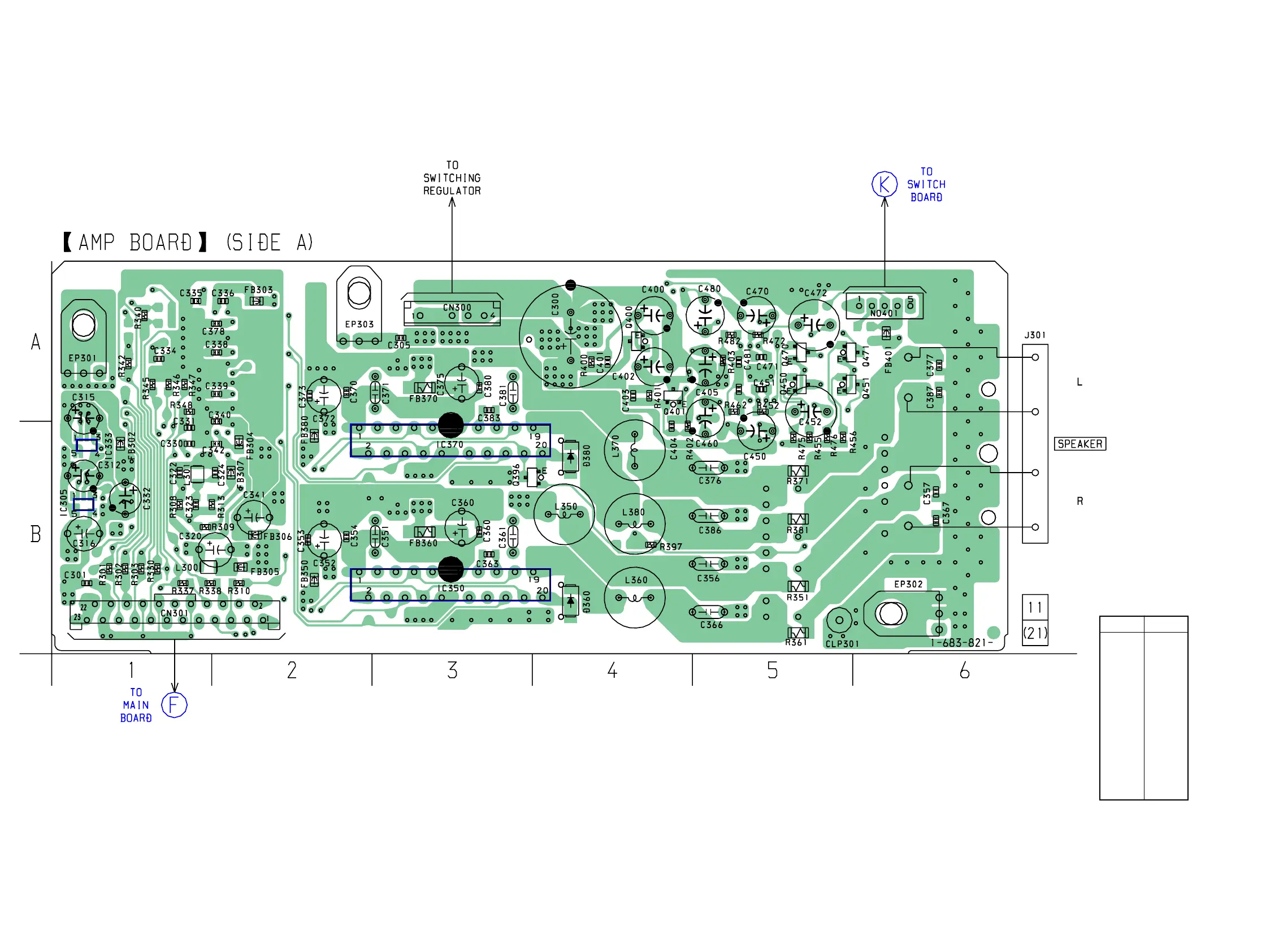

6-15. Printed Wiring Board AMP Section (Side A)
• See page 25 for Circuit Boards Location.
Ref. No. Location
D360 B-4
D380 B-4
IC305 B-1
IC333 B-1
IC350 B-3
IC370 B-3
Q396 B-4
Q400 A-4
Q401 A-4
Q450 A-5
Q451 A-5
Q470 A-5
Q471 A-5
• Semiconductor
Location
(Page 44)
(Page 34)
