3535
HCD-L1

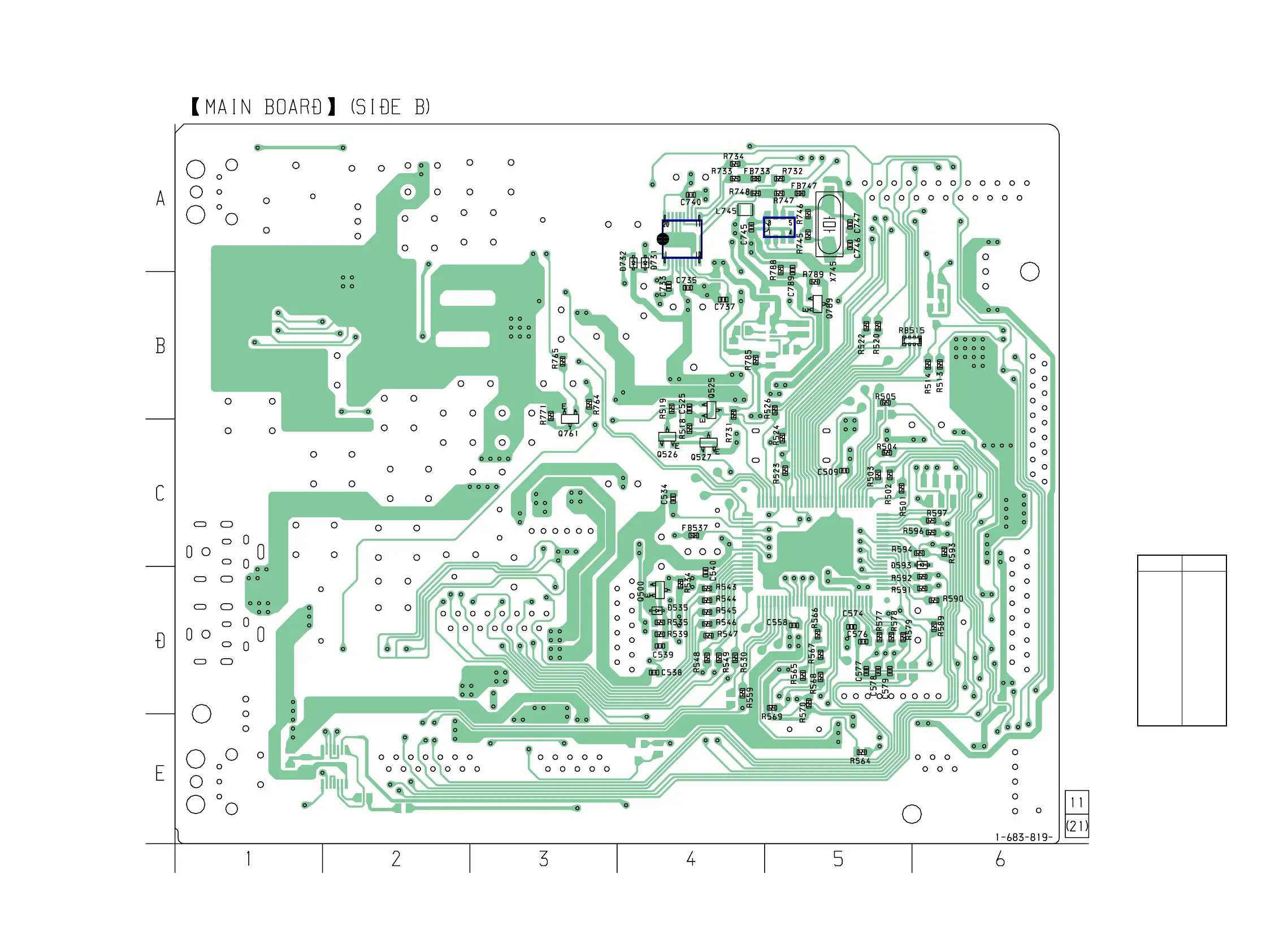

6-12. Printed Wiring Board MAIN Section (Side B)
• See page 25 for Circuit Boards Location.
Ref. No. Location
D535 D-4
D593 C-6
D731 A-4
D732 A-4
IC731 A-4
IC745 A-5
Q500 D-4
Q525 B-4
Q526 C-4
Q527 C-4
Q761 B-3
Q789 B-5
• Semiconductor
Location
IC731
IC745
