44
44
HCD-L1
6-21.
Printed

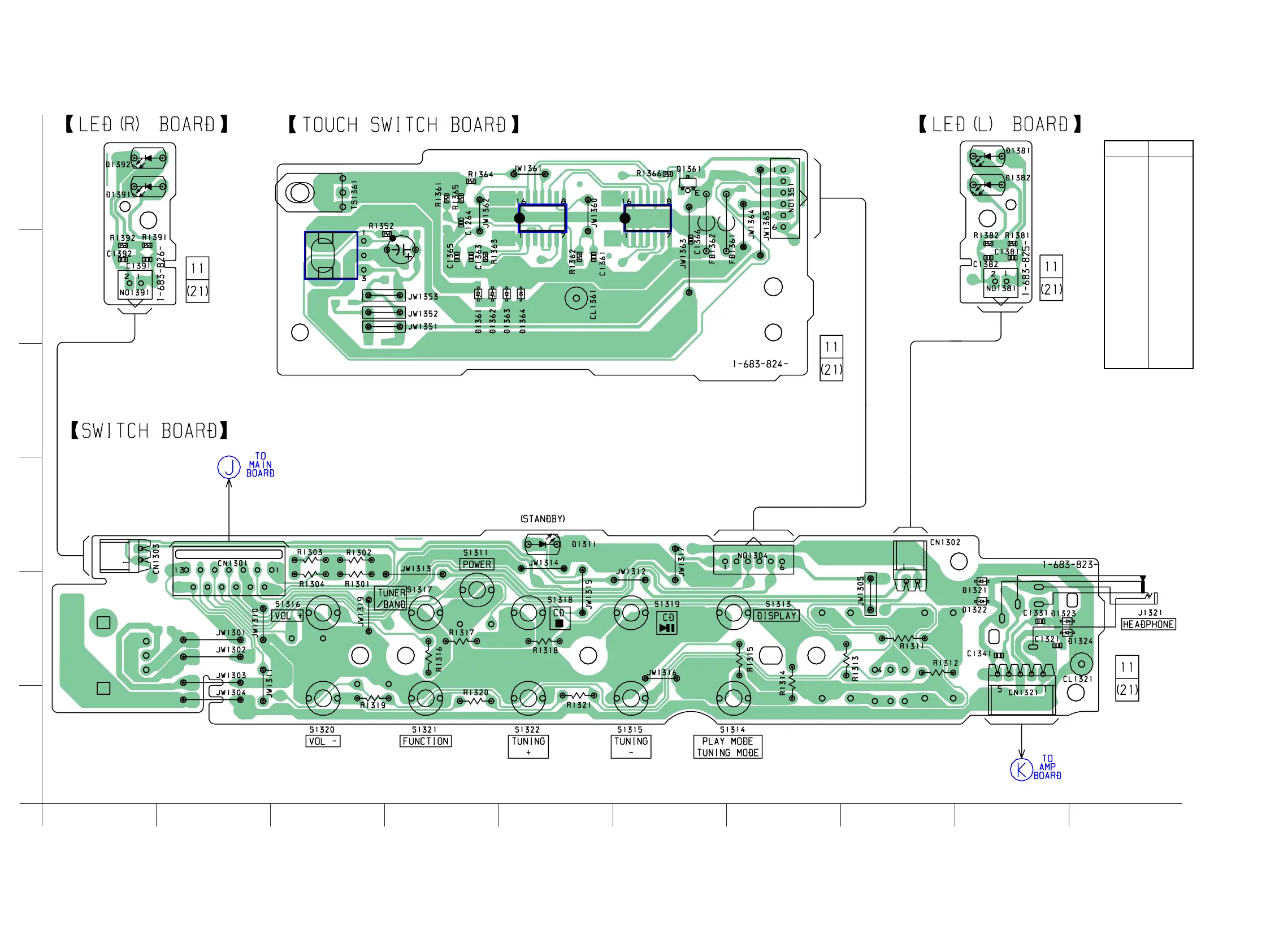

Wiring Board SWITCH Section
• See page 25 f
or Circuit Boards Location.
Ref.
No.
Location
D1311
D-5
D1321
E-9
D1322
E-9
D1323
E-9
D1326
E-9
D1361
B-4
D1362
B-4
D1363
B-5
D1364
B-5
D1381
A-9
D1382
A-9
D1391
A-1
D1392
A-1
IC1351
B-3
IC1361
A-5
IC1362
A-6
Q1361
A-6
•
Semiconductor
Location
12
A
B
C
D
E
F
3456789
1
0
/
(Page 34)
(Page 38)
IC1351
IC1361
IC1362
g
43
45
Table of Contents
Default Chapter
3
Table of Contents
3
1 Servicing Notes
4
2 General
5
3 Disassembly
8
Bottom Plate,Case
9
Front Panel Section
9
POWER Board, AM/FM Tuner
10
MAIN Board
10
AMP Board, Regurator
11
Door Panel, LED Board (R), Indicator
11
LED Board (L)
12
FL (L1) Board
12
SWITCH Board, TOUCH SWITCH Board
13
CD Board
13
CD-Mechanism (CDM71A)
14
L.MOTOR Board
14
ENCODER Board, D.sensor Board
15
RTL Pulley Assy
15
BD Board
16
C.MOTOR Board, L.SENSOR Board
16
Base Unit
17
Holder Assy, Sled Motor Assy
17
RTR Pulley Assy
18
SPT Pulley Assy
18
4 Test Mode
19
5 Electrical Adjustments
22
6 Diagrams
23
Block Diagrams CD Section
23
MAIN Section
24
Circuit Boards Location
25
Printed Wiring Board BD Section (Side A)
26
Printed Wiring Board BD Section (Side B)
27
Schematic Diagram BD Section
28
Schematic Diagram CD Section
29
Printed Wiring Board CD Section (Side A)
30
Printed Wiring Board CD Section (Side B)
31
Printed Wiring Board MOTOR Section
32
Schematic Diagram MOTOR Section
33
Printed Wiring Board MAIN Section (Side A)
34
Printed Wiring Board MAIN Section (Side B)
35
Schematic Diagram MAIN Section (1/2)
36
Schematic Diagram MAIN Section (2/2)
37
Printed Wiring Board AMP Section (Side A)
38
Printed Wiring Board AMP Section (Side B)
39
Schematic Diagram AMP Section
40
IC Block Diagrams
41
Printed Wiring Board DISPLAY Section
42
Schematic Diagram DISPLAY Section
43
Printed Wiring Board SWTICH Section
44
Schematic Diagram SWTICH Section
45
Printed Wiring Board POWER Section
46
Schematic Diagram POWER Section
47
IC Pin Function Description
48
7 Exploded Views
51
Case Section
51
Chassis Section
52
Front Panel Section
53
Mechanism Section(CDM71A)-1
54
Mechanism Section(CDM71A)-2
55
Base Unit Section (BU-31BD63A)
56
8 Electrical Parts List
57
