Sony SRG-A40 User Manual

15
Installation and Connection

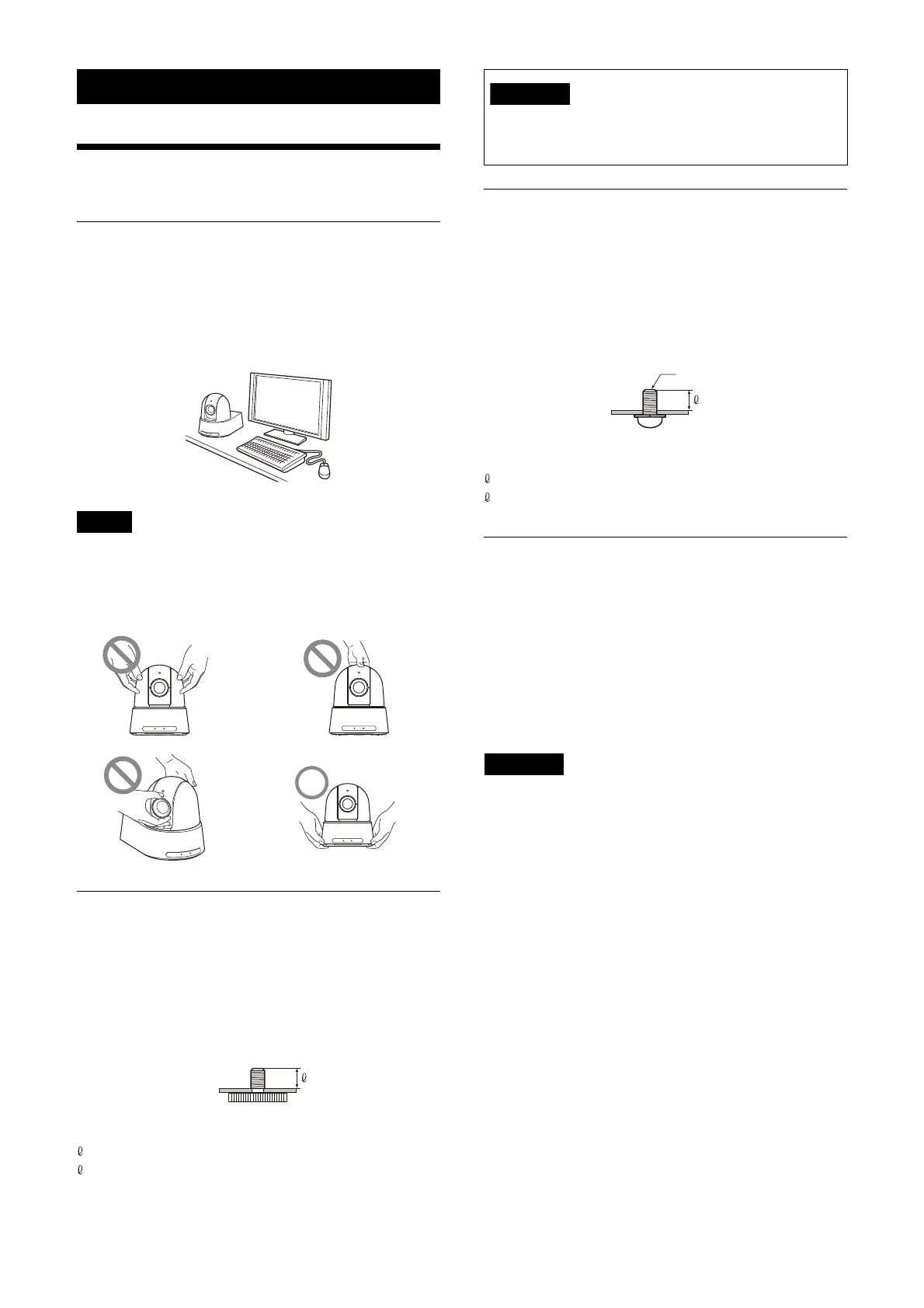

Installing the Camera
Installing the camera on a desk
Place the camera on a flat surface.
If you place the camera on an inclined surface,
mak
e sure that the inclination is less than ±15
degrees to guarantee pan/tilt performance, and
take measures to prevent it from falling.
Notes
• Do not grasp the camera head when carrying
the camera.
• Do not turn the camera head by hand. Doing so
may r
esult in a camera malfunction.
Attaching the Camera to a Tripod
Attach a tripod to the screw hole used for
attaching a tripod on the bottom of the camera.
The tripod must be set up on a flat surface and its
scr
ews tightened firmly by hand.
Use a tripod with screws of the following
sp
ecifications.
= 4.5 to 7 mm
= 0.18 to 0.27 inches
Installing the Camera Using the
M3 Fixing Screw Holes
Attach the camera using 4 M3 fixing screw holes
located on the bottom of the camera.
Attach the camera to a fitting with a flat surface
u
sing M3 screws with the following
specifications.
= 3 to 6 mm
= 0.12 to 0.25 inches
Installing the camera on the
ceiling
Using the supplied ceiling bracket (A)/(B), wire
rope, and screws, you can attach the camera to
the ceiling. When you install the camera, always
install it on a level ceiling. If you install it on a
sloping or uneven ceiling, make sure that the
place where you install it is within ±15 degrees of
the horizontal surface.
CAUTION
• Entrust installation to an experienced
contractor or installer when installing the
camera on ceilings or other high locations.
• When installing the camera in a high location,
b
e sure that the location and installation
components (excluding the supplied
accessories) are strong enough to support the
camera and the mounting bracket, and install
the camera securely. If the components are not
strong enough, the camera may fall and cause
serious injury.
• Always install the supplied wire rope to prevent
the
camera from falling.
• If you install the camera in a high location,
che
ck it periodically (at least once a year) to
ensure that the connection has not loosened.
Depending on your state of use, perform this
periodic check more frequently.
CAUTION
Installation of the camera using the tripod screws and
screw holes should not be done for installation on a
ceiling or a shelf, etc., in a high position.
M3 screw

Sony SRG-A40 Specifications

General

Megapixel	8.5 MP
Camera type	Single camera
Sensor type	CMOS
White balance	Auto, Indoor, One push, Outdoor
Zoom capability	Yes
Gain control type	Auto/Manual
Focal length range	4.4 - 88 mm
Optical sensor size	1/2.5 \
Aperture range (F-F)	2 - 3.8
Light exposure modes	Auto, Manual
Minimum illumination	1.6 lx
Maximum working distance (tele)	800 mm
Minimum working distance (wide)	80 mm
Maximum frame rate	60 fps
Video formats supported	H.264, H.265
Maximum video resolution	3840 x 2160 pixels
Supported graphics resolutions	640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Pan range	-170 - 170 °
Product color	White
Pan speed (max)	300 °/sec
Tilt angle range	-20 - 90 °
Tilt speed (max)	126 °/sec
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Supported protocols	IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT
Multi-stream capability	3
Audio channels	2
Ethernet LAN (RJ-45) ports	1
DC input voltage	19.5 V
Power source type	DC, PoE
Power consumption (typical)	80 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Number of screws	6

Weight and Dimensions

Depth	200 mm
Width	156.7 mm
Height	184 mm
Weight	2000 g
