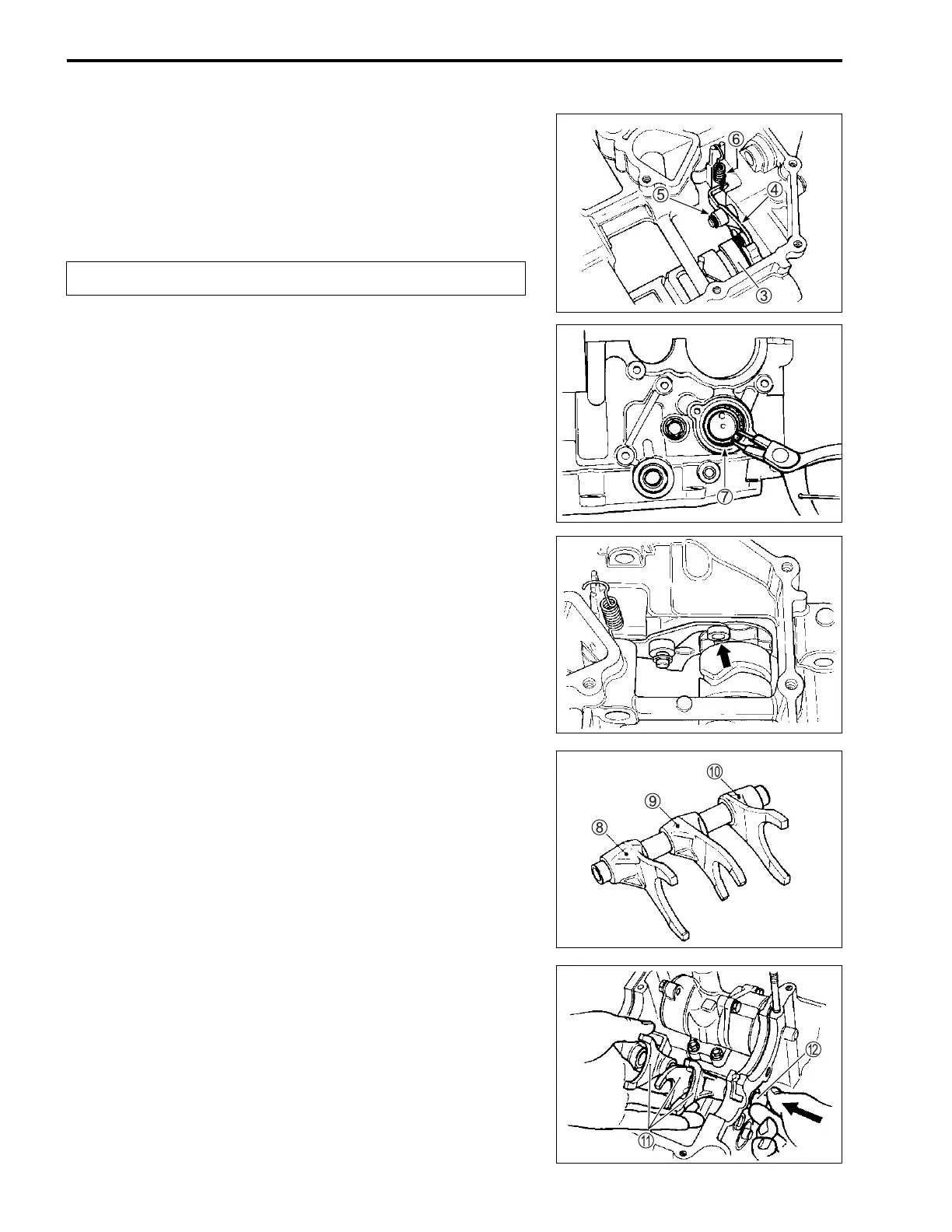

3-64 ENGINE
• Install the gearshift cam
3 and its related parts.
4 Gearshift cam stopper
5 Circlip
6 Spring
7 Circlip
$
• Position the gearshift cam in the neutral position as shown.
This will allow the gearshift forks and transmission gears to be
installed easily.
• Install the gearshift forks into the crankcase in the correct
position and direction.
8 For the 6th (top) driven gear
9 For the 3rd/4th drive gear
0 For the 5th driven gear
• Hold the gearshift forks
A by hand when installing the gear-
shift fork shaft
B.
Always use new circlips (
5 and
7).
