5-38 CHASSIS

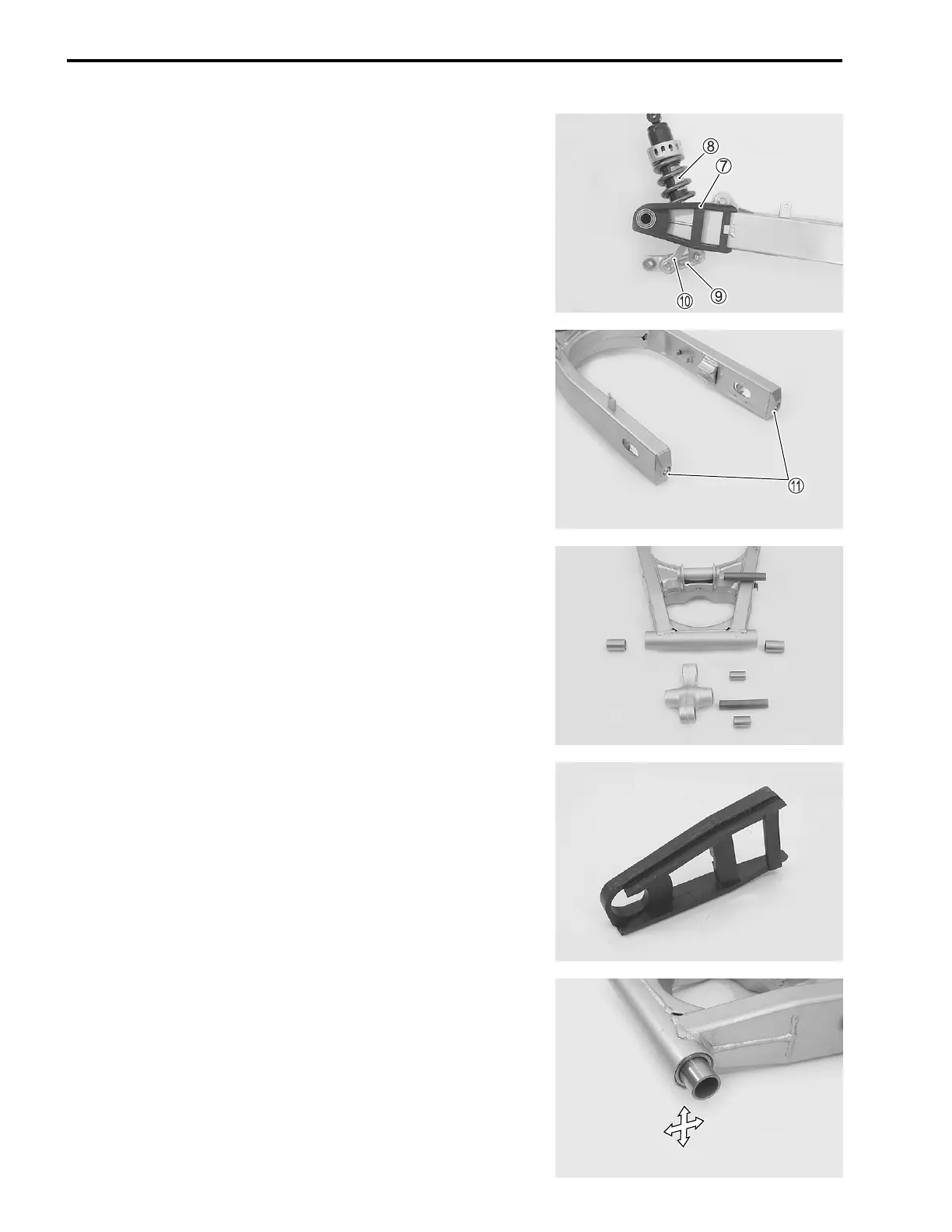

• Remove the chain buffer

7, rear shock absorber

8, cushion
lever

9 and cushion rods

0.
• Remove the chain adjusters

A.
INSPECTION AND DISASSEMBLY
SPACERS
• Remove the spacers from the swingarm and cushion lever.
• Inspect the spacers for any flaws or other damage. If any
defects are found, replace the spacer with a new one.
CHAIN BUFFER
• Inspect the chain buffer for wear and damage. If any defects
are found, replace the chain buffer with a new one.
SWINGARM BEARINGS
• Insert the spacers into bearings, check the play by moving the
spacers up and down.
If excessive play is noted, replace the bearing with a new one.
