5-54 CHASSIS

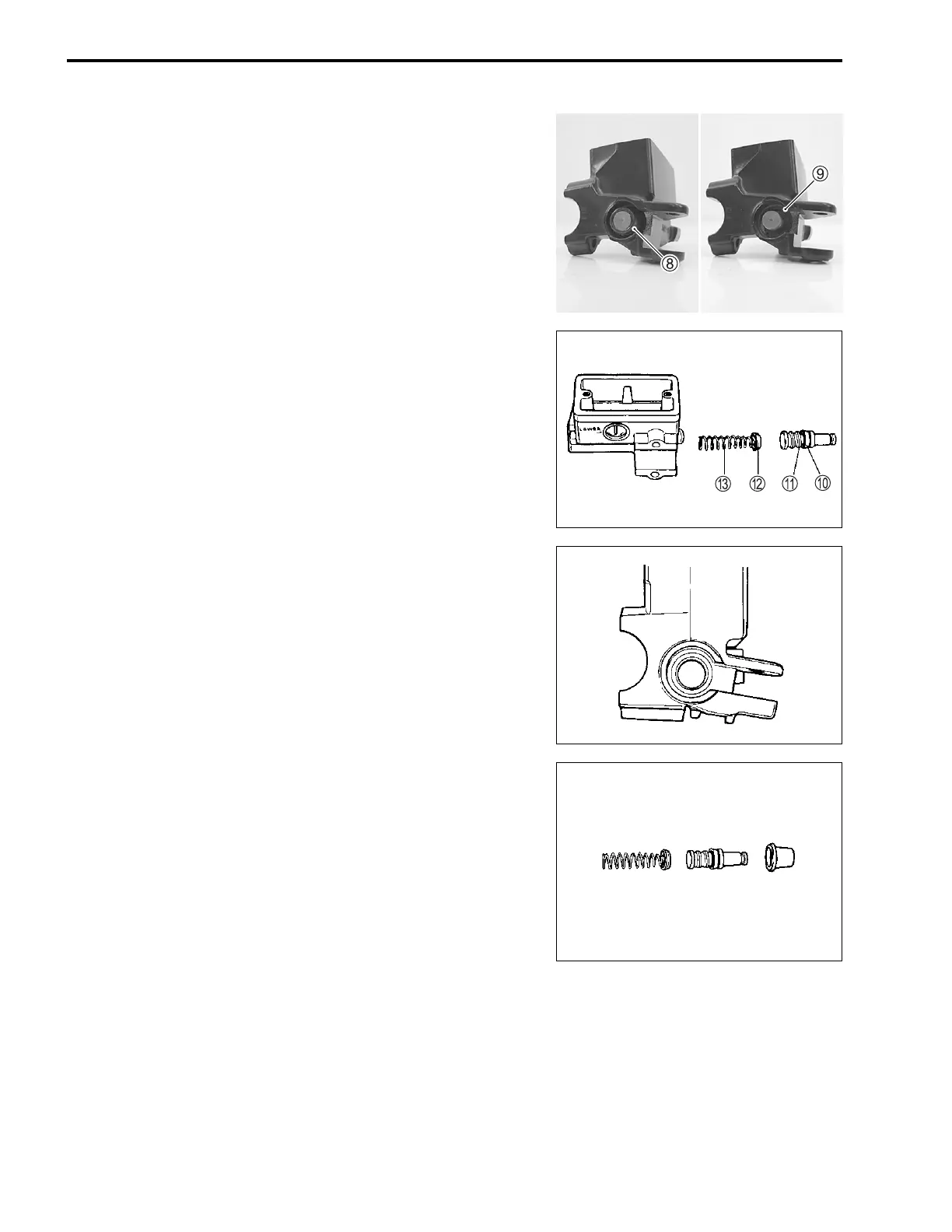

• Pull out the dust boot

8 and remove the snap ring

9.
% 09900-06108: Snap ring pliers
• Remove the piston/secondary cup, primary cup and spring.

0 Secondary cup

A Piston

B Primary cup

C Spring
MASTER CYLINDER INSPECTION
MASTER CYLINDER
Inspect the master cylinder bore for any scratches or other dam-
age.
PISTON
Inspect the piston surface for any scratches or other damage.
RUBBER PARTS
Inspect the primary cup, secondary cup and dust boot for wear
or damage.
