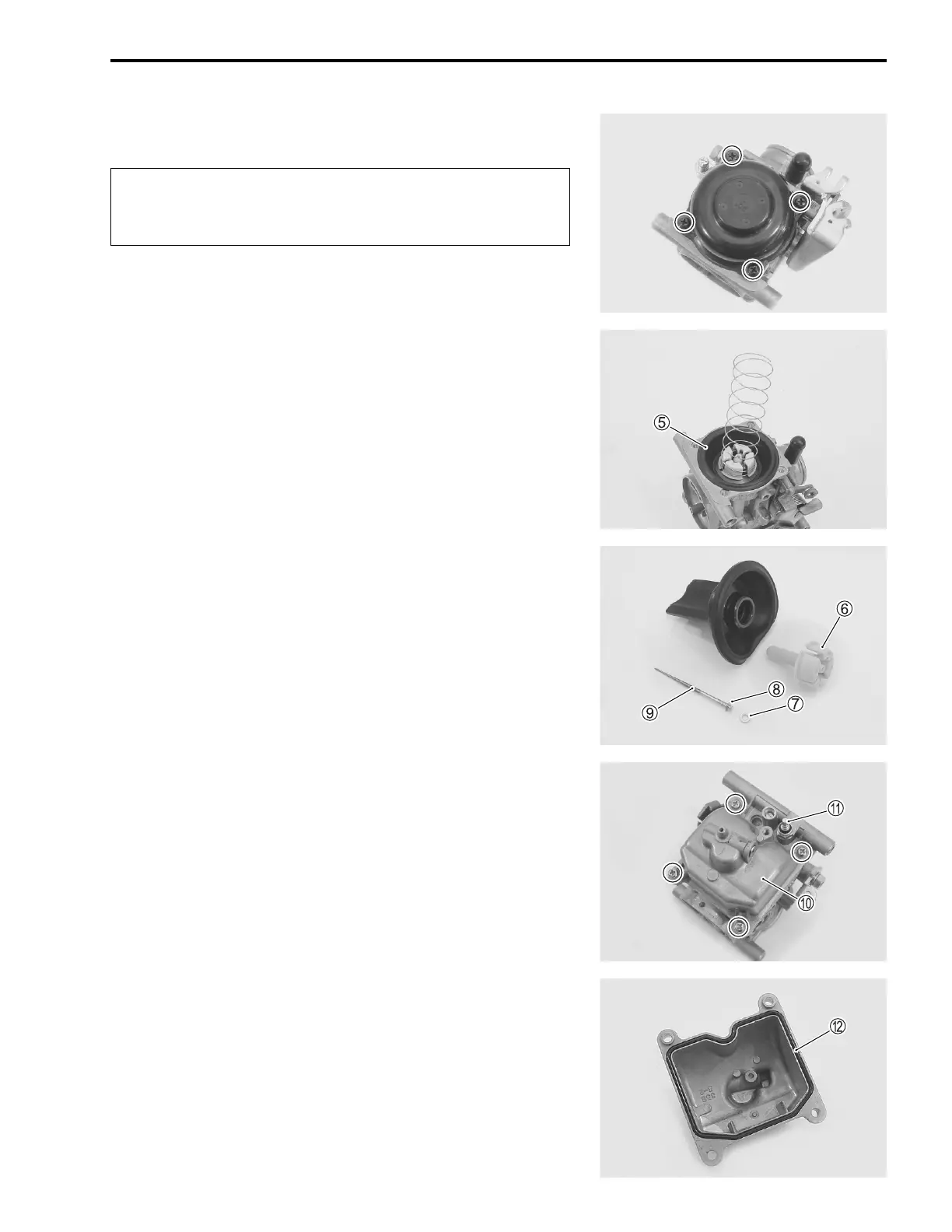

FUEL SYSTEM 4-17
• Remove the top cap.
#
• Remove the spring and piston valve assembly
5.
• Remove the jet needle stopper
6, washer
7, E-ring
8 and
jet needle
9 from the piston valve.
• Remove the float chamber
0.
• Remove the carburetor heater
A.
• Remove the O-ring
B.
Do not use compressed air on the carburetor body,
before removing the diaphragm; this may damage the
diaphragm.
