5-56 CHASSIS

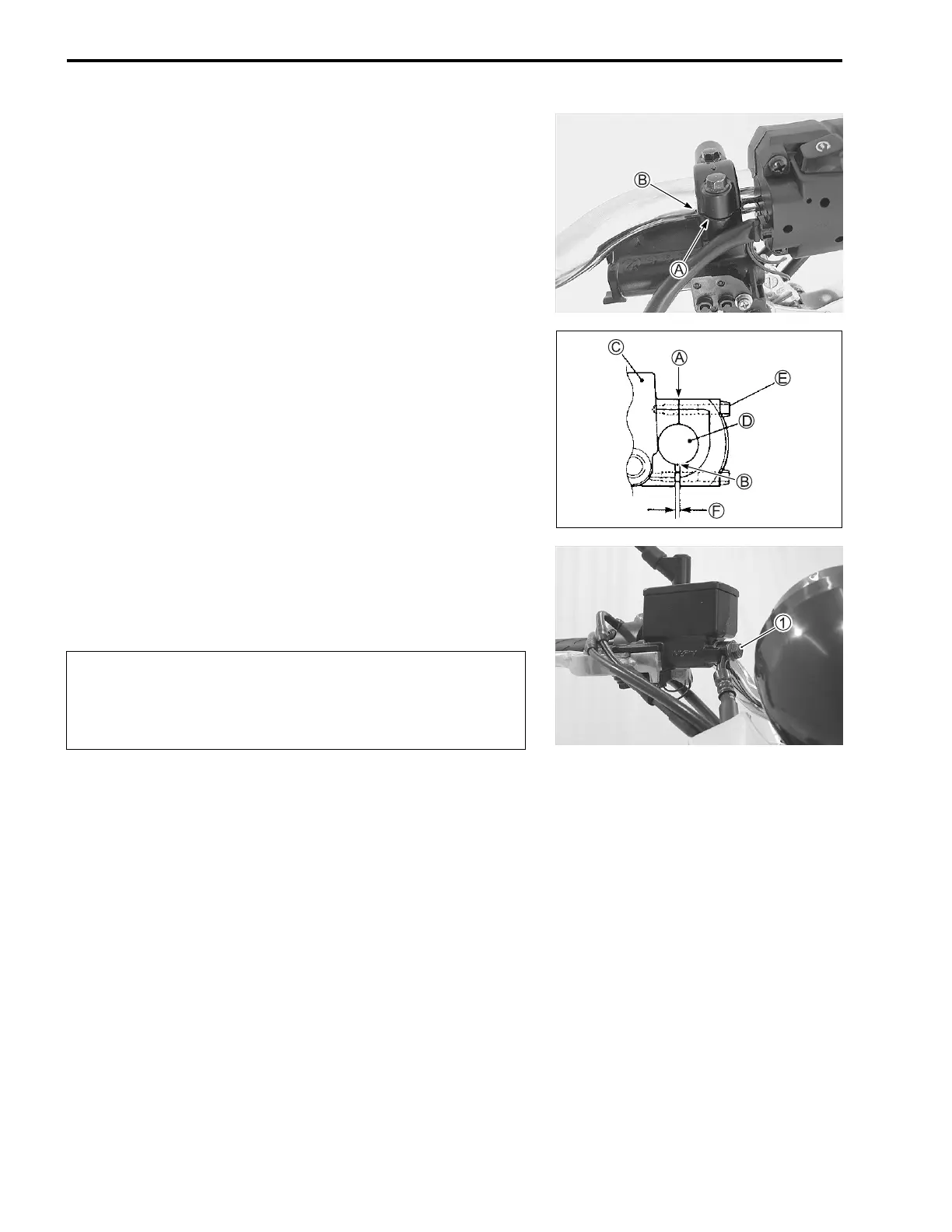

• When installing the master cylinder onto the handlebar, align
the master cylinder holder’s mating surface

A with the punch
mark

B on the handlebar and tighten the upper holder bolt
first.

A Mating surface

B Punch mark

C Master cylinder

D Handlebar

E Upper holder bolt

F Clearance
# Master cylinder holder bolt (upper and lower):
10 N·m (1.0 kgf-m)
• After setting the brake hose union to the stopper, tighten the
union bolt

1 to the specified torque.
# Brake hose union bolt: 23 N·m (2.3 kgf-m)
$
* The seal washers should be replaced with the new
ones to prevent fluid leakage.
* Bleed air from the brake system after reassembling
the master cylinder. (!2-17)

Suzuki GSF650S Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Displacement	656 cm³
Front Brakes	Disc
Rear Brakes	Disc
Front Tire	120/70ZR17
Rear Tire	160/60ZR17
Fuel Tank Capacity	19 liters
Seat Height	790 mm
