CHASSIS 5-65

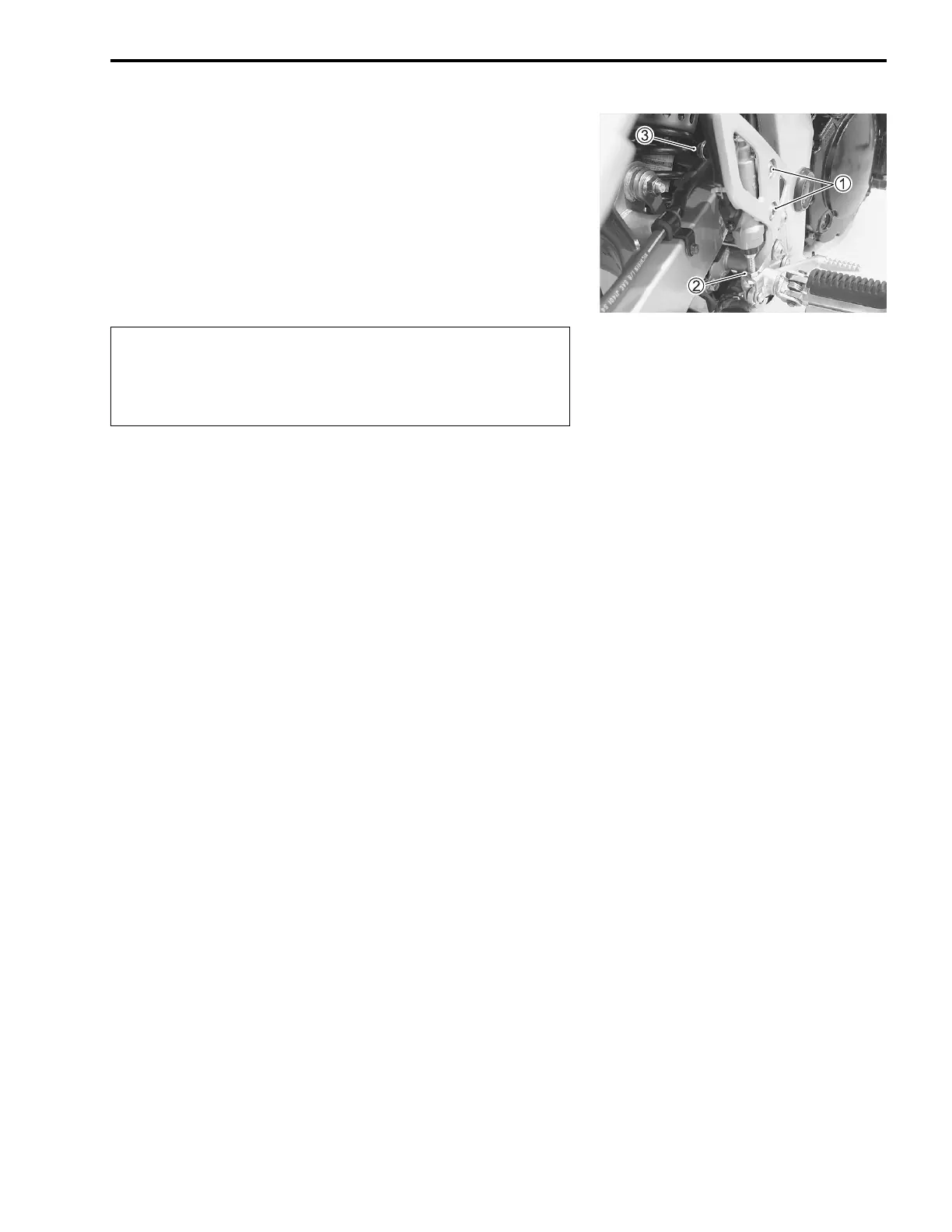

• Tighten the master cylinder mounting bolts

1 to the specified
torque.
• Tighten the locknut

2 to the specified torque.
• After setting the brake hose union to the stopper, tighten the
union bolt

3 to the specified torque.
# Master cylinder mounting bolt

1: 25 N·m (2.5 kgf-m)
Master cylinder push rod locknut

2: 18 N·m (1.8 kgf-m)
Brake hose union bolt

3: 23 N·m (2.3 kgf-m)
$
* The seal washers should be replaced with the new
ones to prevent fluid leakage.
* Bleed air from the system after reassembling the cal-
iper. (! 2-17)

Suzuki GSF650S Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Displacement	656 cm³
Front Brakes	Disc
Rear Brakes	Disc
Front Tire	120/70ZR17
Rear Tire	160/60ZR17
Fuel Tank Capacity	19 liters
Seat Height	790 mm
