ELECTRICAL SYSTEM 6-19

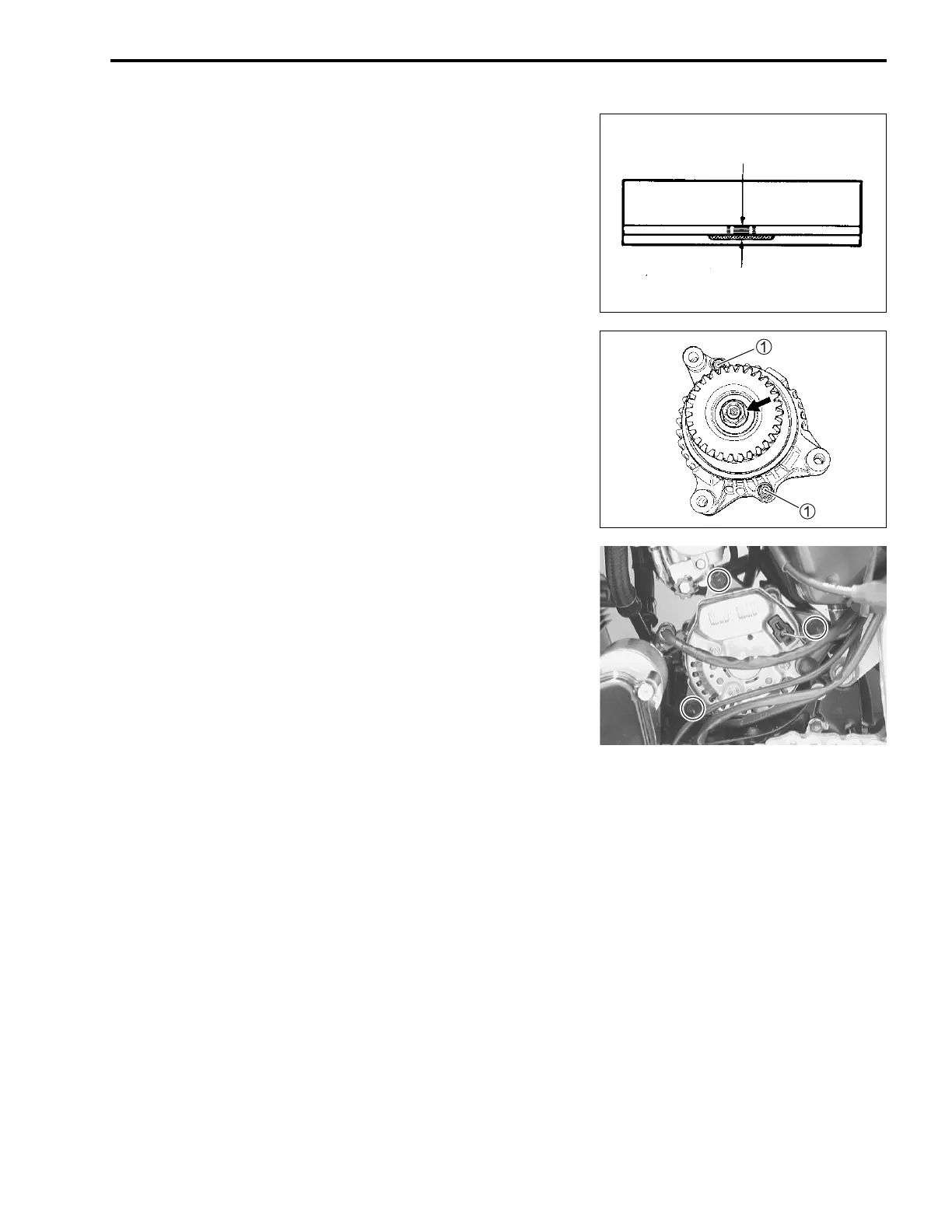

NOTE:
Before reinstalling the slip ring side bearing onto the generator
end housing, turn the expander ring and align the expander ring
lug with the center of the chamfered edge of the bearing outer
race.
• Tighten the generator housing nuts

1 to the specified torque.
( Generator housing nut: 4.5 N·m (0.45 kgf-m)
• Tighten the generator driven gear nut to the specified torque.
( Generator driven gear nut: 55 N·m (5.5 kgf-m)
NOTE:
After tightening the generator driven gear nut to the specified
torque, stake the nut using a punch.
• Tighten the generator mounting bolts to the specified torque.
( Generator mounting bolt: 26 N·m (2.6 kgf-m)
• Route the wire harness properly. (!7-14)
• Remount the engine sprocket cover. (!3-9)
Expander ring lug
Chamfered edge

Suzuki GSF650S Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Displacement	656 cm³
Front Brakes	Disc
Rear Brakes	Disc
Front Tire	120/70ZR17
Rear Tire	160/60ZR17
Fuel Tank Capacity	19 liters
Seat Height	790 mm
