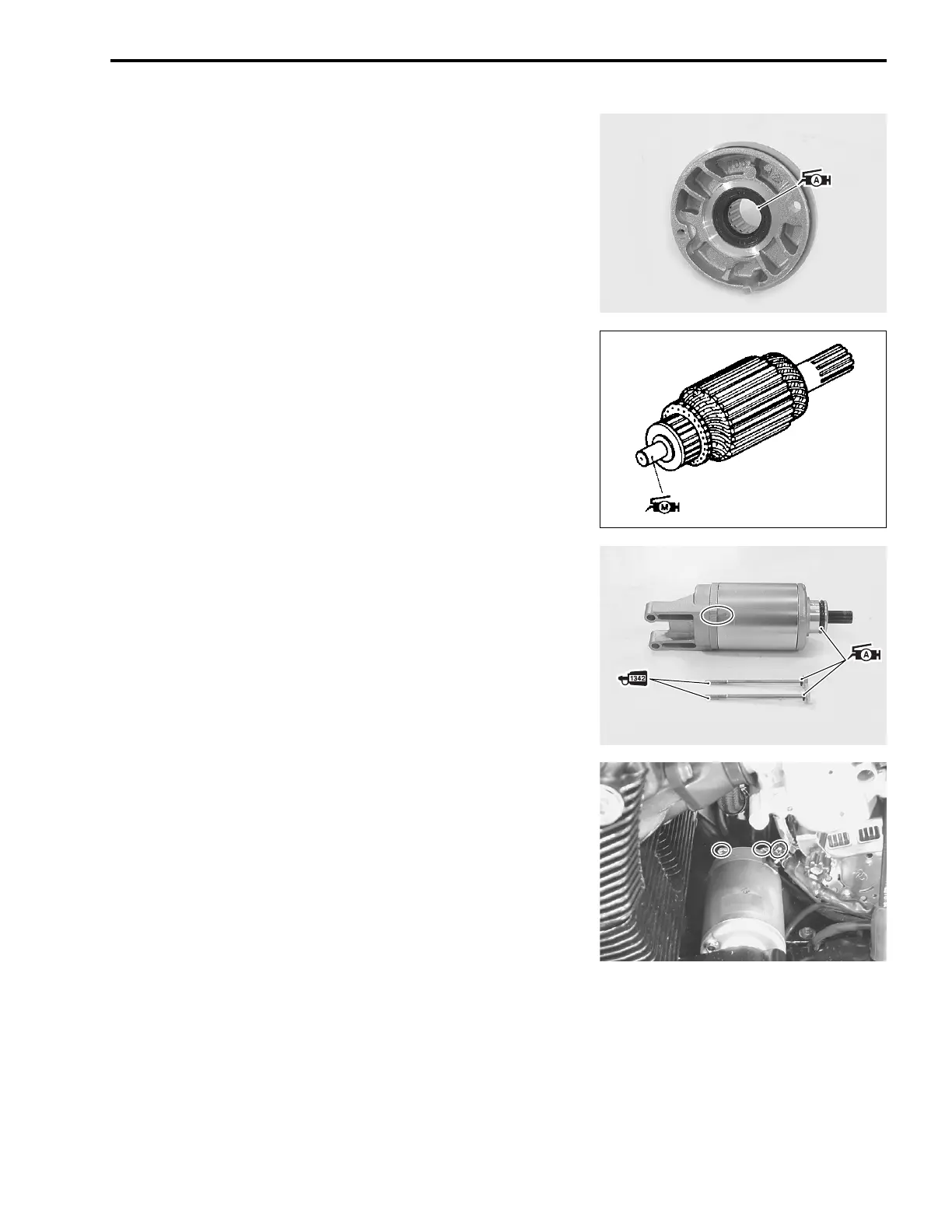

ELECTRICAL SYSTEM 6-25
• Apply SUZUKI SUPER GREASE “A” to the oil seal lip.
. 99000-25010: SUZUKI SUPER GREASE “A”
• Apply a small quantity of SUZUKI MOLY PASTE to the arma-
ture shaft.
) 99000-25140: SUZUKI MOLY PASTE
• Align the marks on the housing ends with the marks on the
starter motor case.
• Apply a small quantity of THREAD LOCK “1342” to the starter
motor housing bolts.
/ 99000-32050: THREAD LOCK “1342”
• Apply SUZUKI SUPER GREASE “A” to the O-rings.
. 99000-25010: SUZUKI SUPER GREASE “A”
• Install the starter motor. (!3-75)
( Starter motor mounting bolt: 6 N·m (0.6 kgf-m)
Lead wire connecting screw: 3 N·m (0.3 kgf-m)

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Suzuki GSF650S and is the answer not in the manual?

Suzuki GSF650S Specifications

General IconGeneral
Engine Type4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke65.5 mm x 48.7 mm
Compression Ratio11.5:1
Fuel SystemFuel injection
IgnitionElectronic ignition (transistorized)
Transmission6-speed constant mesh
Final DriveChain
Front SuspensionTelescopic, coil spring, oil damped
Rear SuspensionLink type, coil spring, oil damped
Displacement656 cm³
Front BrakesDisc
Rear BrakesDisc
Front Tire120/70ZR17
Rear Tire160/60ZR17
Fuel Tank Capacity19 liters
Seat Height790 mm
