6-28 ELECTRICAL SYSTEM

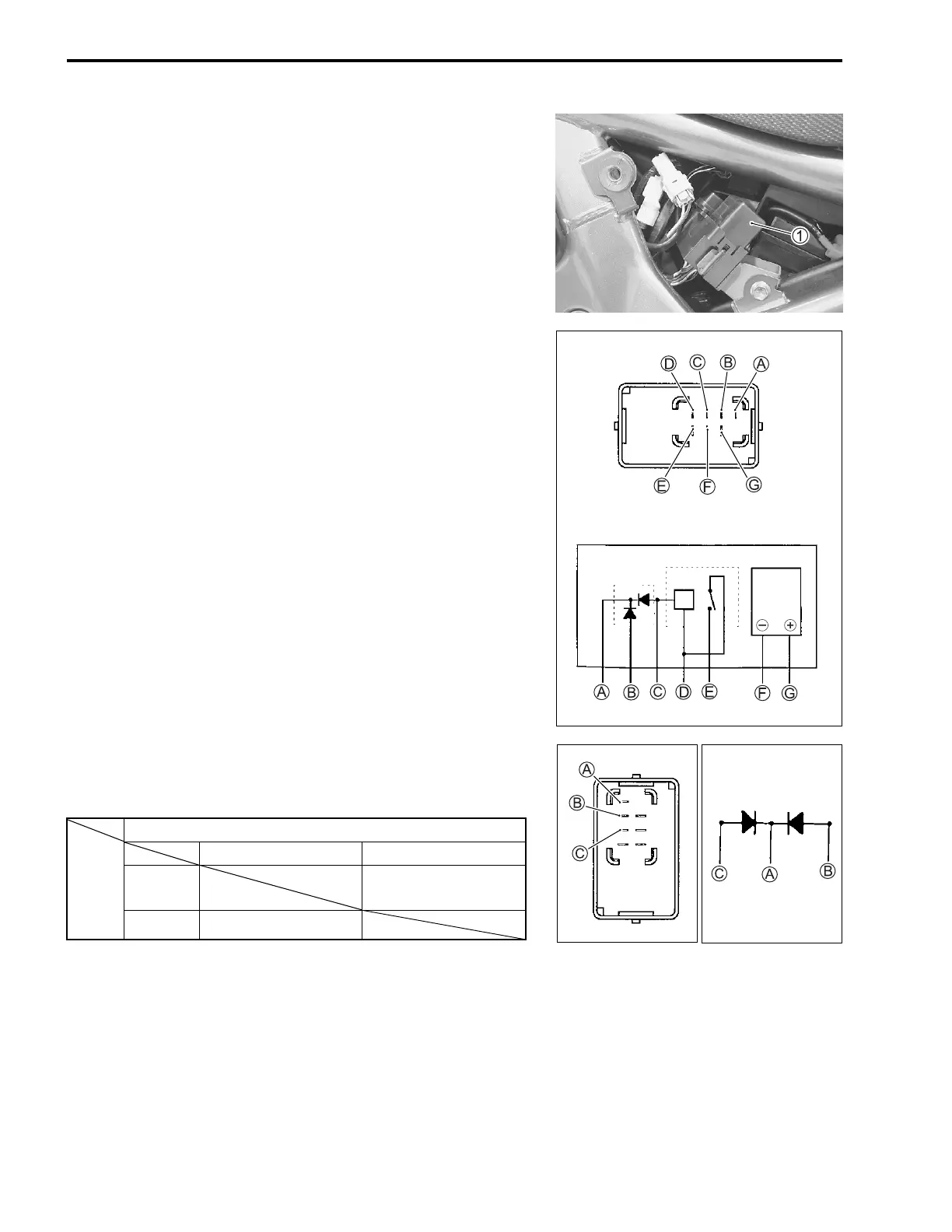

TURN SIGNAL/SIDE-STAND RELAY
The turn signal/side-stand relay is composed of the turn signal
relay, side-stand relay and diode.
• Remove the frame cover (LH). (!5-4)
• Remove the turn signal/side-stand relay

1.
First check the insulation between

D and

E terminals with the
multi-circuit tester. Then apply 12 V to terminals

D and

C (

+ to

D and

- to

C) and check the continuity between

D and

E. If
there is no continuity, replace the turn signal/side-stand relay
with a new one.
" 09900-25008: Multi circuit tester set
* Tester knob indication: Continuity test (+)
DIODE INSPECTION
Measure the voltage between the terminals using the multi cir-
cuit tester. Refer to the following table.
" 09900-25008: Multi-circuit tester set
, Tester knob indication: Diode test (-)
NOTE:
If the multi circuit tester reads 1.4 V and below when the tester
probes are not connected, replace its battery.
Diode
Side-stand relay
Tur n
signal
relay

+ Probe of tester to:

- Probe of tester to:

C,

B

A

C,

B
1.4 V and more
(Tester’s battery voltage)

A 0.4 – 0.6 V

Suzuki GSF650S Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Displacement	656 cm³
Front Brakes	Disc
Rear Brakes	Disc
Front Tire	120/70ZR17
Rear Tire	160/60ZR17
Fuel Tank Capacity	19 liters
Seat Height	790 mm
