2-16 PERIODIC MAINTENANCE

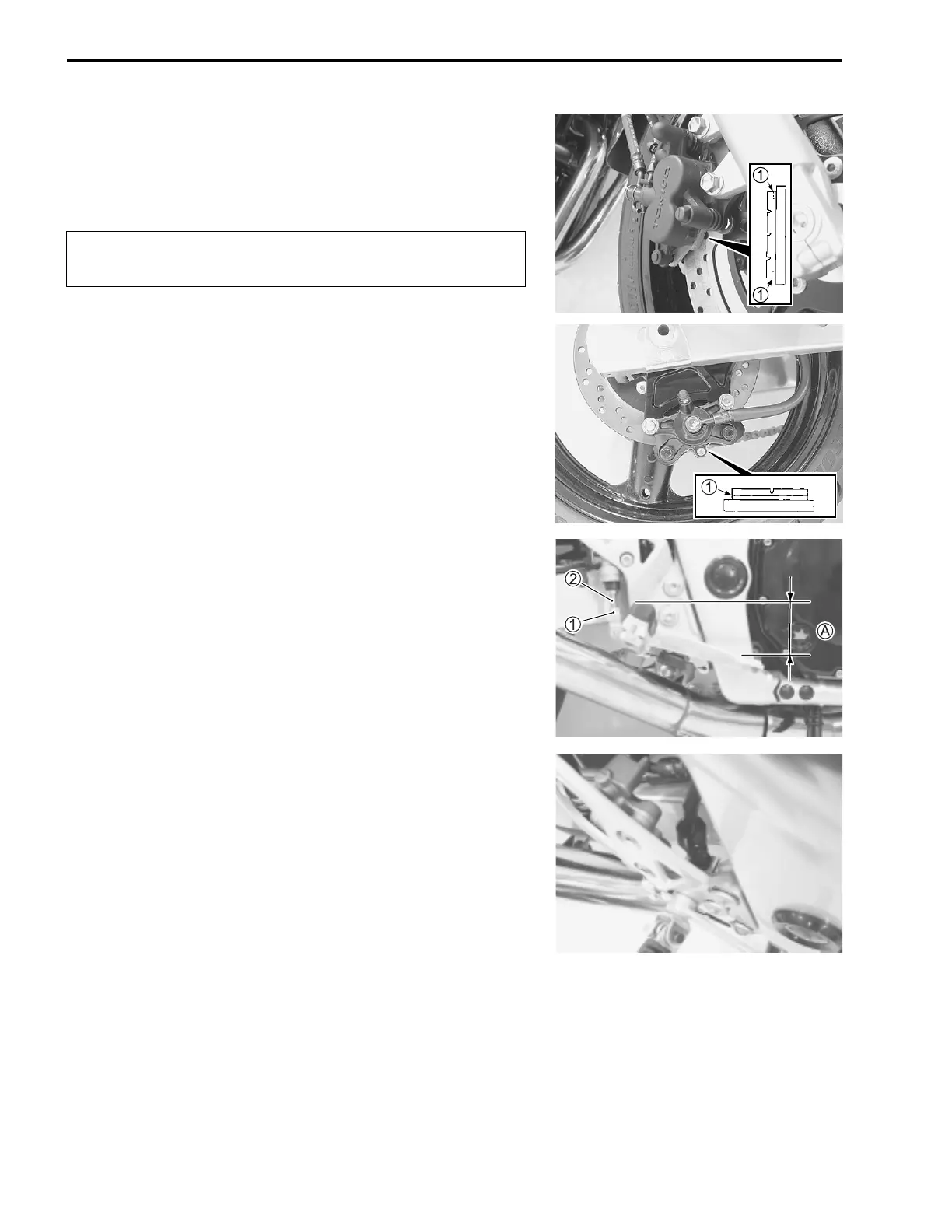

BRAKE PADS
The extent of brake pad wear can be checked by observing the
grooved limit line

1 on the pad. When the wear exceeds the
grooved limit line, replace the pads with new ones. (!5-47)
$
BRAKE PEDAL HEIGHT
• Loosen the locknut

1.
• Turn the push rod

2 until the brake pedal is 60 mm

A below
the top of the footrest.
• Tighten the locknut

1 securely.
" Brake pedal height

A
Standard: 60 mm
& Master cylinder push rod locknut: 18 N·m (1.8 kgf-m)
BRAKE LIGHT SWITCH
Adjust the rear brake light switch so that the brake light will
come on just before pressure is felt when the brake pedal is
depressed.
Replace the brake pads as a set, otherwise braking
performance will be adversely affected.

Suzuki GSF650S Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Displacement	656 cm³
Front Brakes	Disc
Rear Brakes	Disc
Front Tire	120/70ZR17
Rear Tire	160/60ZR17
Fuel Tank Capacity	19 liters
Seat Height	790 mm
