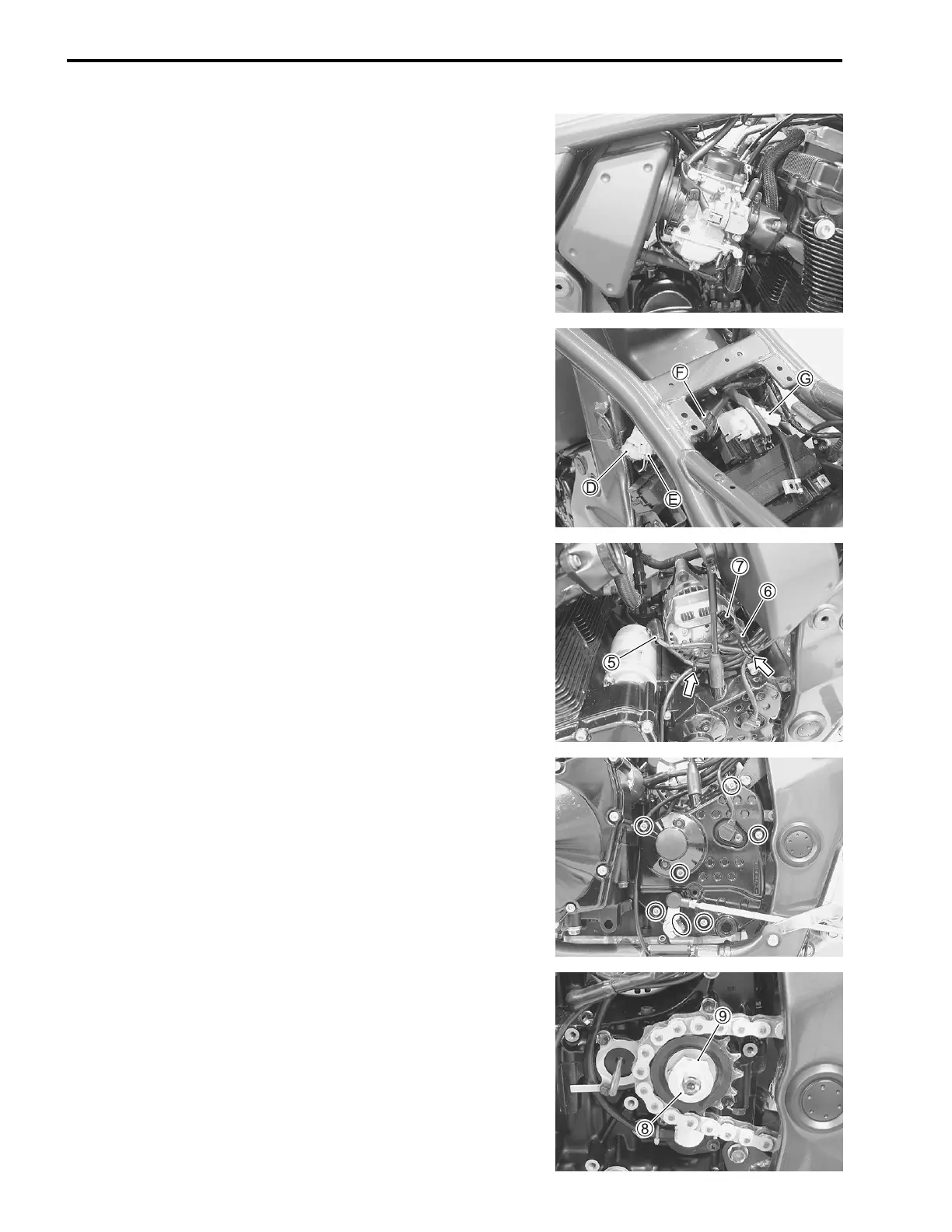

3-4 ENGINE
• Remove the carburetor assembly. (!4-15)
• Disconnect the lead wire couplers

D to

G.

D Signal generator

E Side-stand switch

F Speed sensor

G Gear position switch
• Open the clamps.
• Disconnect the starter motor lead wire

5.
• Disconnect the generator lead wire

6 and coupler

7.
• Disengage the gearshift lever link by removing the bolt.
• Remove the engine sprocket cover along with the clutch cable
and speed sensor.
• Remove the speed sensor rotor

8 and engine sprocket nut

9
while depressing the rear brake pedal.

Suzuki GSF650S Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Displacement	656 cm³
Front Brakes	Disc
Rear Brakes	Disc
Front Tire	120/70ZR17
Rear Tire	160/60ZR17
Fuel Tank Capacity	19 liters
Seat Height	790 mm
