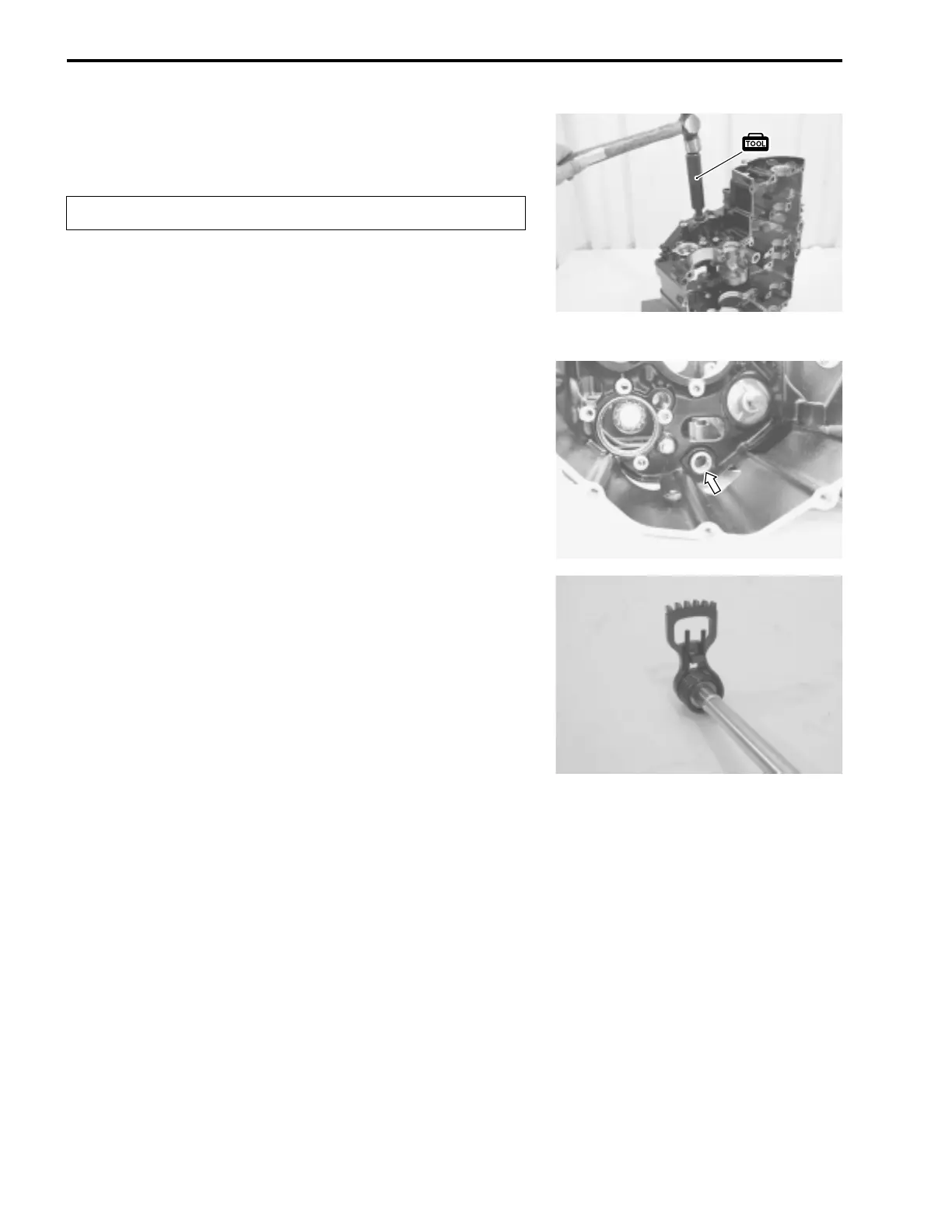

3-46 ENGINE
• Install the new oil seal using the special tool.
) 09943-88211: Pinion bearing installer
$
NOTE:
Apply SUZUKI SUPER GREASE “A” onto the oil seal lip to pre-
vent oil seal damage when installing the lower crankcase.
' 99000-25010: SUZUKI SUPER GREASE “A”
GEARSHIFT SHAFT HOLE
Check the gearshift shaft hole for damage or wear.
GEARSHIFT SHAFT REASSEMBLY
When installing the gearshift shaft return spring, position the
stopper between the ends of the gearshift shaft return spring.
The removed oil seal must be replaced with a new one.
