3-48 ENGINE
DISASSEMBLY

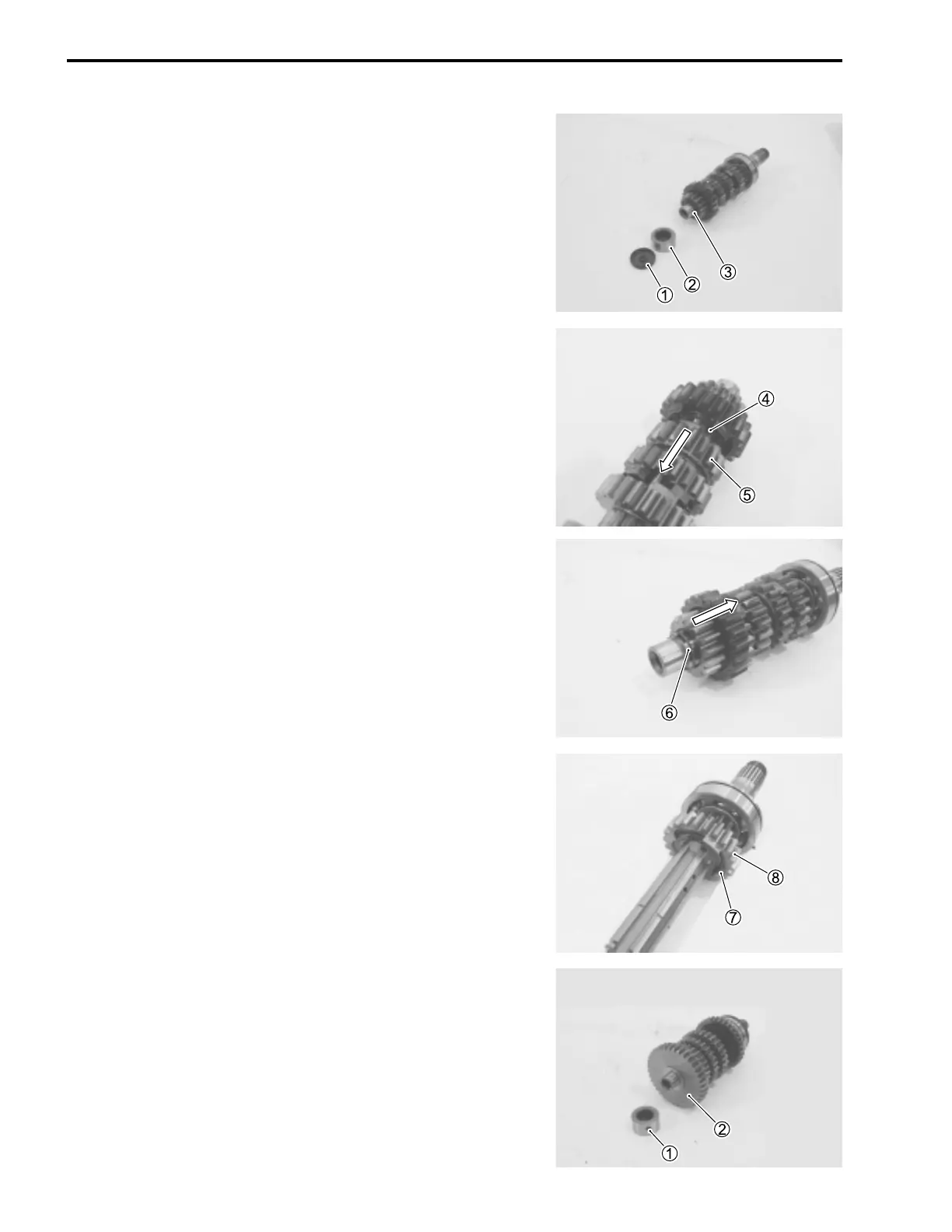

Countershaft assembly
• Remove the cap

1, left end bearing

2 and oil seal

3.
• Remove the 6th (top) drive gear circlip

4 from its groove and
slide it towards the 3rd/4th drive gears

5.
) 09900-06107: Snap ring pliers
• Slide the 6th (top) and 2nd drive gears toward the 3rd/4th
drive gears, then remove the 2nd drive gear circlip

6.
• Remove the 2nd, 6th (top), washer, circlip and 3rd/4th drive
gears.
• Remove the circlip, 5th drive gear bushing

7 and the 5th
drive gear

8.
Driveshaft assembly
• Remove the right end bearing

1, washer and 1st (low) driven
gear

2.
