Suzuki VL125 Service Manual

CHASSIS 5-49

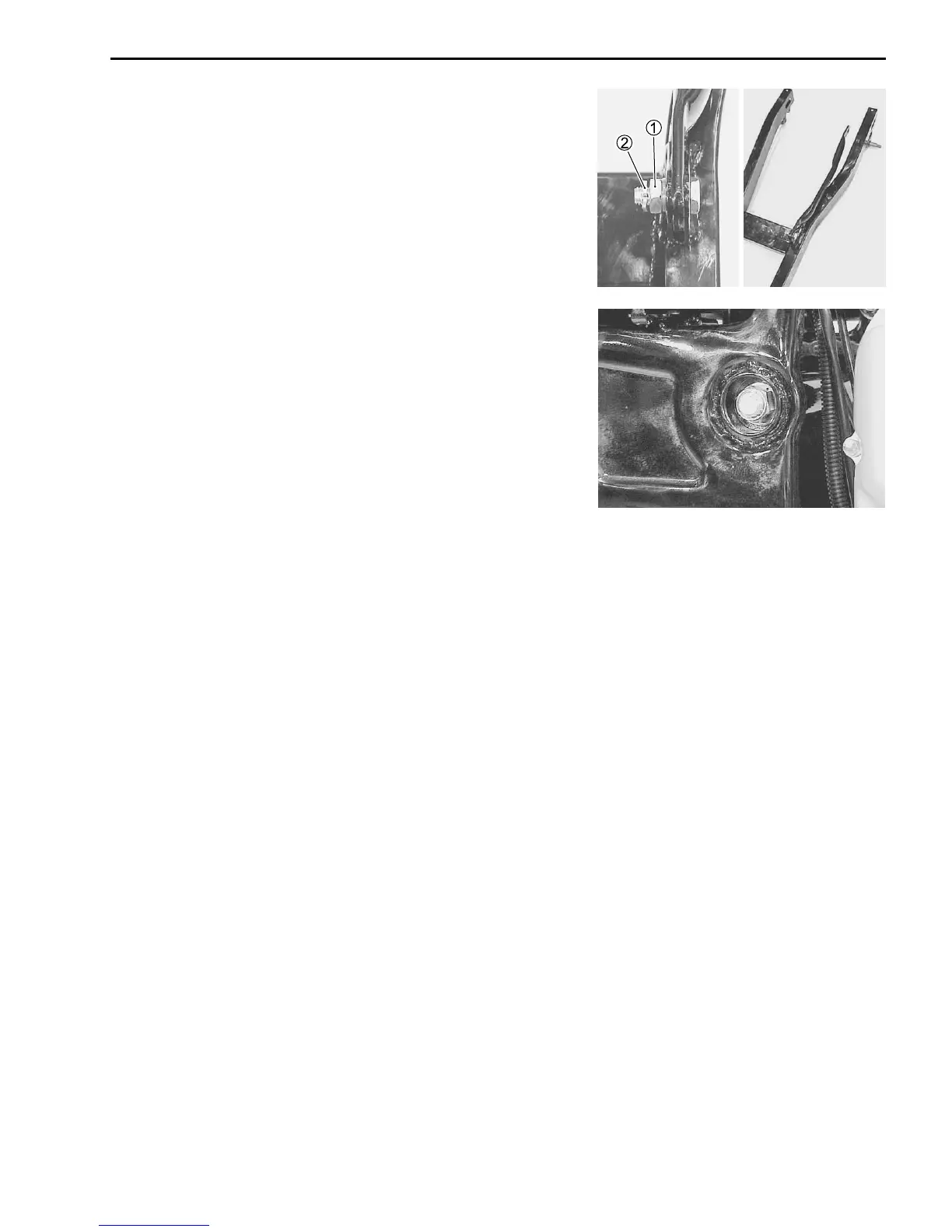

• Install the torque link and washer 1, tighten the torque link nut
to the specified torque.
" Torque link nut (Front): 13 N
.
m (1.3 kgf
.
m)
• Install the new cotter pin 2.
• Install the swingarm and tighten the swingarm pivot nut to the
specified torque.
" Swingarm pivot nut: 72 N
.
m (7.2 kgf
.
m)
• Install the rear shock absorber. (95-45)
• Install the rear wheel. (95-39)
• Adjust the following points:
Drive chain slack: 92-13
Rear brake pedal free travel: 92-18

Suzuki VL125 Specifications

General

Displacement	124 cc
Ignition	Electronic ignition (CDI)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm, coil spring, oil damped
Rear Brake	Drum
Overall Length	2, 080 mm
Overall Width	760 mm
Ground Clearance	150 mm
Fuel System	Carburetor
Front Brake	Single disc
Front Tire	90/90-18
Seat Height	735mm
