2-10 PERIODIC MAINTENANCE

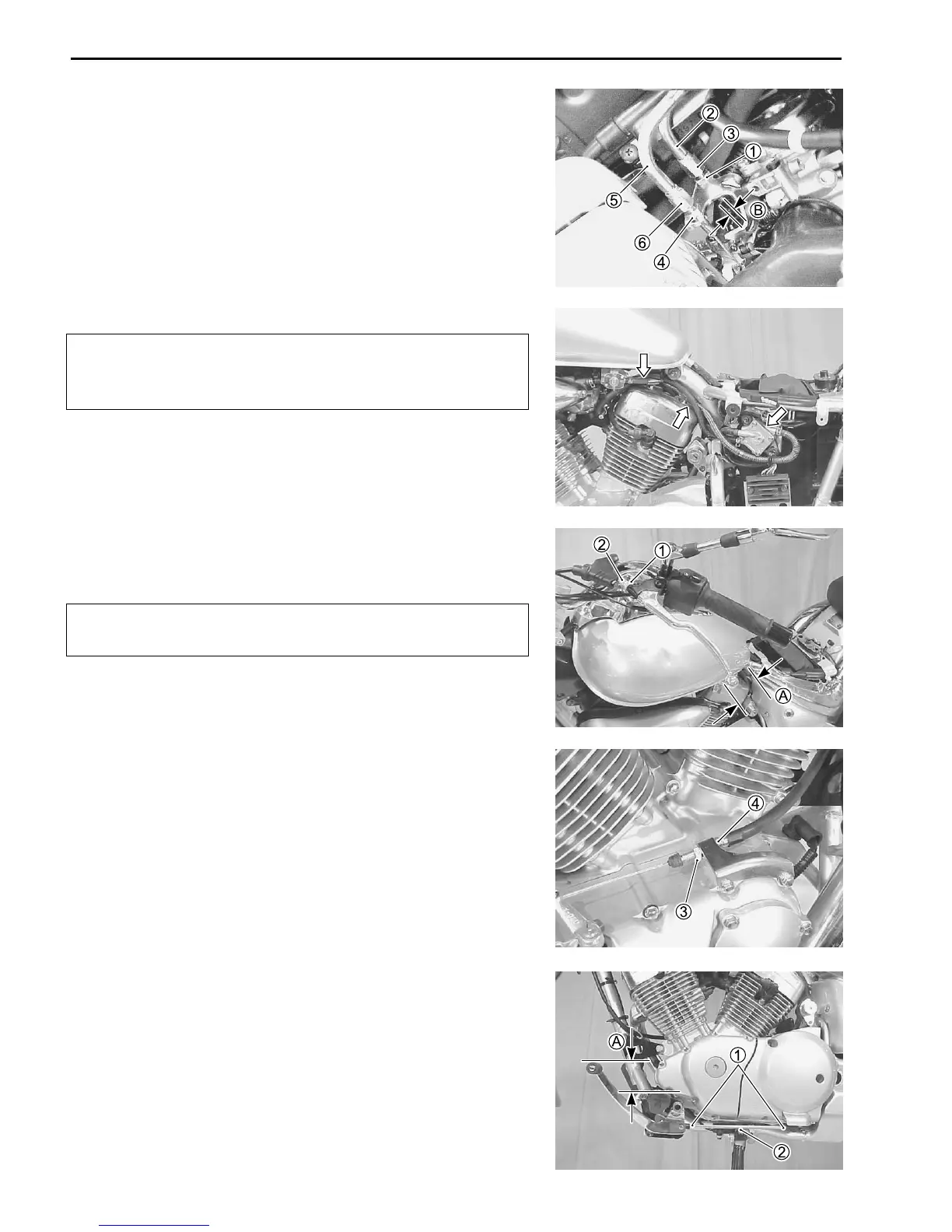

FUEL HOSE
Inspect initially at 1 000 km (5 months) and every 4 000
km (20 months).
Replace every 4 years.
• Remove the left frame cover. (96-2)
Inspect the fuel hoses for damage and fuel leakage. If any de-
fects are found, the fuel hoses must be replaced.
FUEL FILTER
Visually check the fuel filter. If accumulation of sediment or clog-
ging is found, replace the fuel filter with a new one. (94-3)
CLUTCH
Inspect initially at 1 000 km (5 months) and every 4 000
km (20 months) thereafter.
• Loosen the lock nut 1 and turn the adjuster 2 fully in.
• Loosen the lock nut 3 and turn the adjuster 4 until the clutch
lever play A is within specificaton.
# Clutch lever play
AA
AA
A: 10 – 15 mm
• Tighten the lock nuts 1 and 3.
GEARSHIFT LEVER HEIGHT ADJUSTMENT
• Loosen the lock nuts 1.
• With the link rod 2 turned, adjust the gearshift lever height A.
# Gearshift lever height: 65 – 75 mm
• Loosen the lock nuts 4 of the throttle pulling cable 5.
• Turn the pulling cable adjuster 6 in or out until the throttle cable
play should be 2.0 – 4.0 mm at the throttle grip.
• Tighten the lock nuts 4 securely while holding the adjuster 6.
• While holding the throttle grip at the fully closed position, slowly
turn the returning cable adjuster 3 to obtain a cable slack B of
1.0 mm.
• Tighten the lock nuts 1 securely.
