Suzuki VL125 Service Manual

HOW TO USE THIS MANUAL
TO LOCATE WHAT YOU ARE
LOOKING FOR:
1.The text of this manual is divided into sections.
2.The section titles are listed in the GROUP INDEX.
3.Holding the manual as shown at the right will allow you
to find the first page of the section easily.
4.The contents are listed on the first page of each section
to help find the item and page you need.

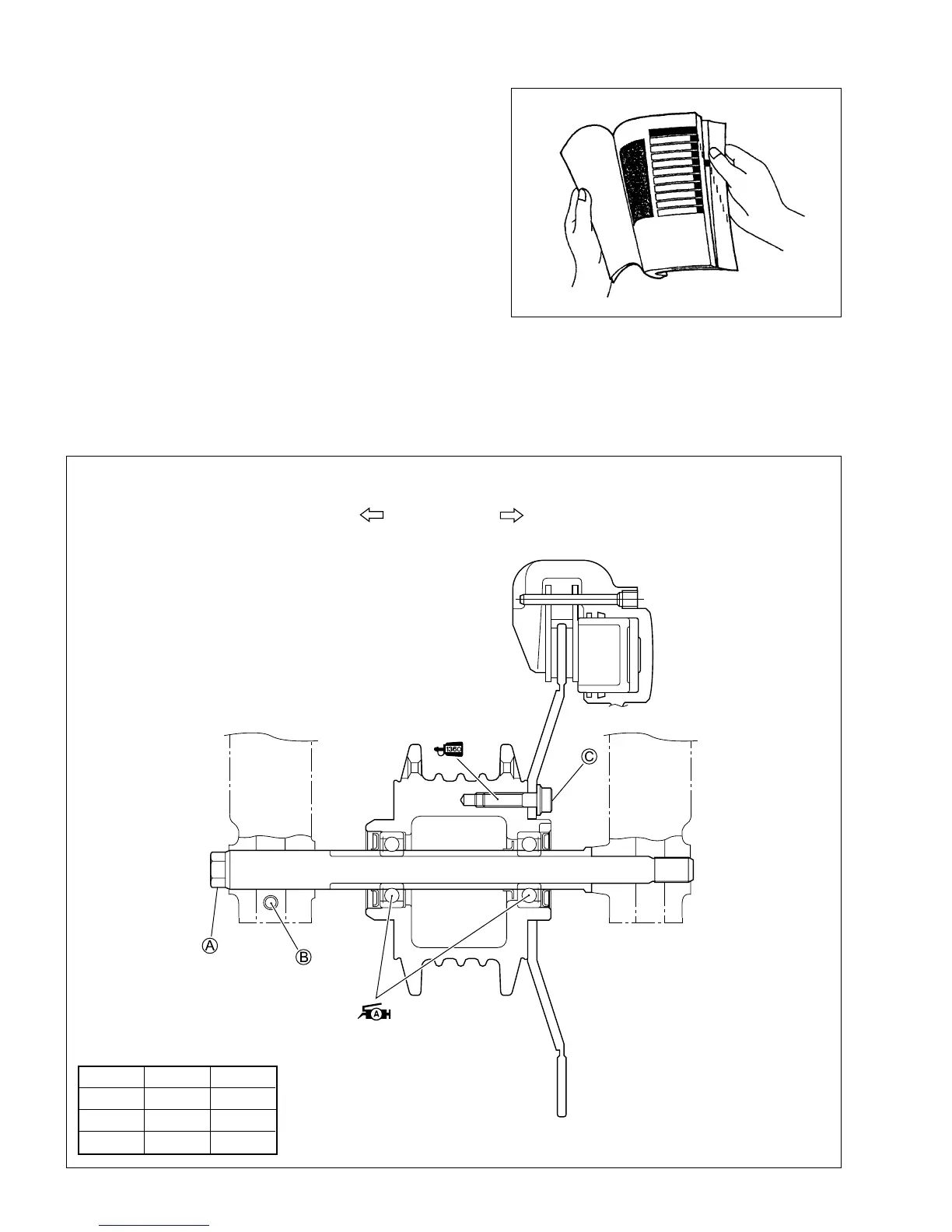

COMPONENT PARTS AND WORK TO BE DONE
Under the name of each system or unit, is its exploded view. Work instructions and other service information
such as the tightening torque, lubricating points and locking agent points, are provided.
Example: Front wheel
Left
Right
"
ITEM N
.
m kgf
.
m
A 65 6.5
B 23 2.3
C 23 2.3
A Front axle
B Axle pinch bolt
C Brake disc bolt

Suzuki VL125 Specifications

General

Displacement	124 cc
Ignition	Electronic ignition (CDI)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm, coil spring, oil damped
Rear Brake	Drum
Overall Length	2, 080 mm
Overall Width	760 mm
Ground Clearance	150 mm
Fuel System	Carburetor
Front Brake	Single disc
Front Tire	90/90-18
Seat Height	735mm
