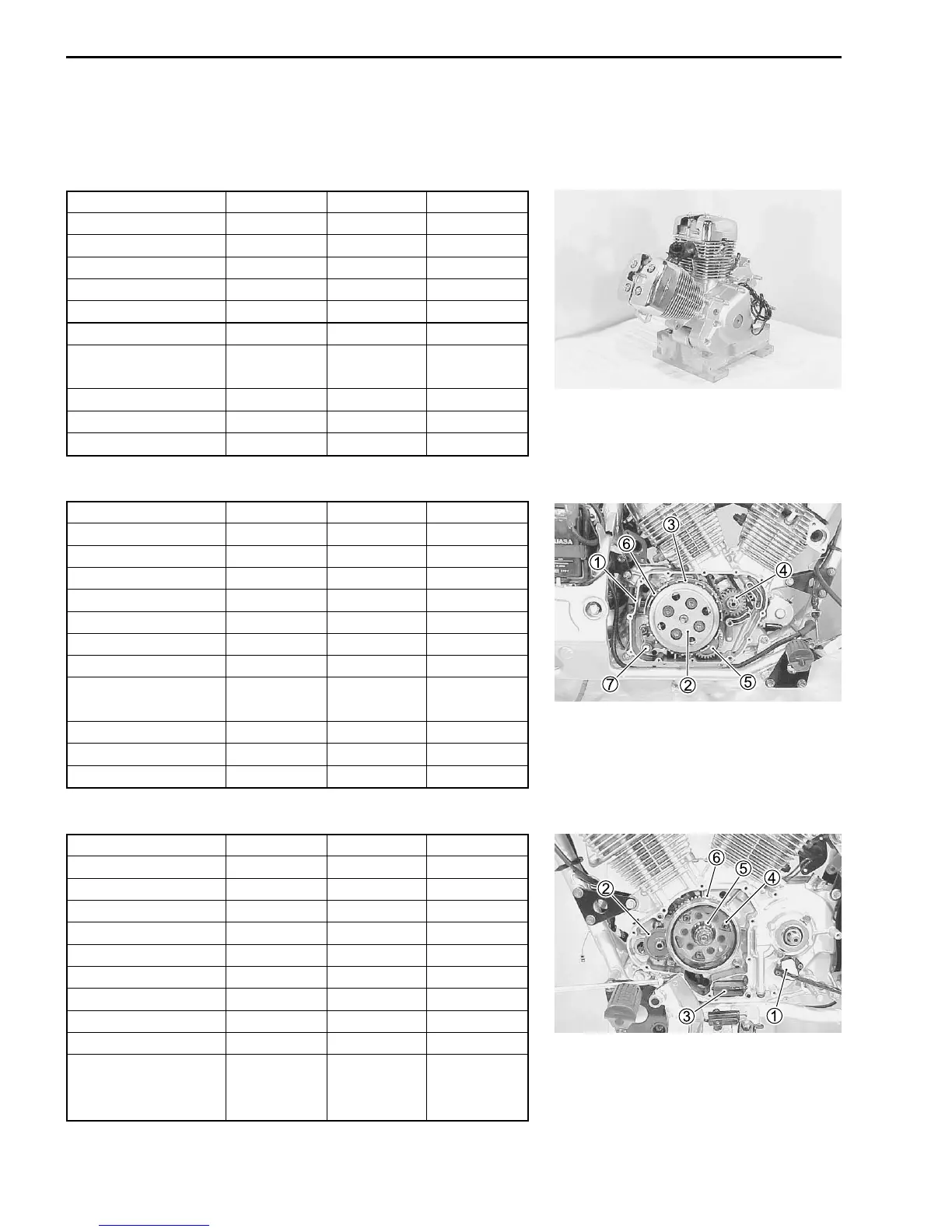

3-2 ENGINE
ENGINE CENTER
ITEM REMOVAL INSPECTION REINSTALLATION
Air cleaner box 93-3 92-7 –––––
Starter motor
93-11 96-12 93-70
Cylinder head cover
93-11 93-20 93-67
Camshaft
93-12 93-22 93-65
Intake pipe
93-13 ––––– 93-64
Cylinder head (only No. 2) 93-13 93-24 93-63
Cam chain tension
adjuster
93-13 93-23 93-64
Cam chain guide
93-13 93-23 93-63
Cylinder (only No. 2)
93-13 93-33 93-63
Piston (only No. 2)
93-14 93-35 93-62
ENGINE RIGHT SIDE
ITEM REMOVAL INSPECTION REINSTALLATION
Clutch cable 93-4 ––––– –––––
Exhaust pipe and muffler 93-5 ––––– 93-10
1Speed sensor 93-11 96-24 93-69
Clutch cover
93-15 93-41 93-59
2Clutch (plates) 93-15 93-42 93-58
3 Primary driven gear 93-16 93-43 93-57
4Primary drive gear 93-16 ––––– 93-57
Rear cylinder cam chain
and cam chain tensioner
93-16 93-24 93-57
5Oil pump 93-17 93-43 93-56
6Speed rotor 93-17 ––––– 93-56
7Gearshift shaft 93-18 93-43 93-56
ENGINE LEFT SIDE
ITEM REMOVAL INSPECTION REINSTALLATION
Engine sprocket 93-6 95-37 93-9
Gearshift pedal
93-6 ––––– 93-9
1 Gear position switch 93-11 96-15 93-69
Generator (cover)
93-14 96-8 93-61
2Starter idle gear 93-14 ––––– 93-61
3Oil sump filter 93-14 ––––– 93-61
4Generator rotor 93-14 ––––– 93-61
5Starter clutch 93-39 93-39 93-39
6Starter driven gear 93-15 93-30 93-61
Front cylinder cam
chain and cam chain
93-15 93-24 93-60
tensioner
ENGINE COMPONENTS REMOVABLE WITH ENGINE IN PLACE
The parts listed below can be removed and reinstalled without removing the engine from the frame. Refer
to page listed in each section for removal and reinstallation instructions.

Suzuki VL125 Specifications

General

Displacement	124 cc
Ignition	Electronic ignition (CDI)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm, coil spring, oil damped
Rear Brake	Drum
Overall Length	2, 080 mm
Overall Width	760 mm
Ground Clearance	150 mm
Fuel System	Carburetor
Front Brake	Single disc
Front Tire	90/90-18
Seat Height	735mm
