Suzuki VL125 Service Manual

ELECTRICAL SYSTEM 6-27

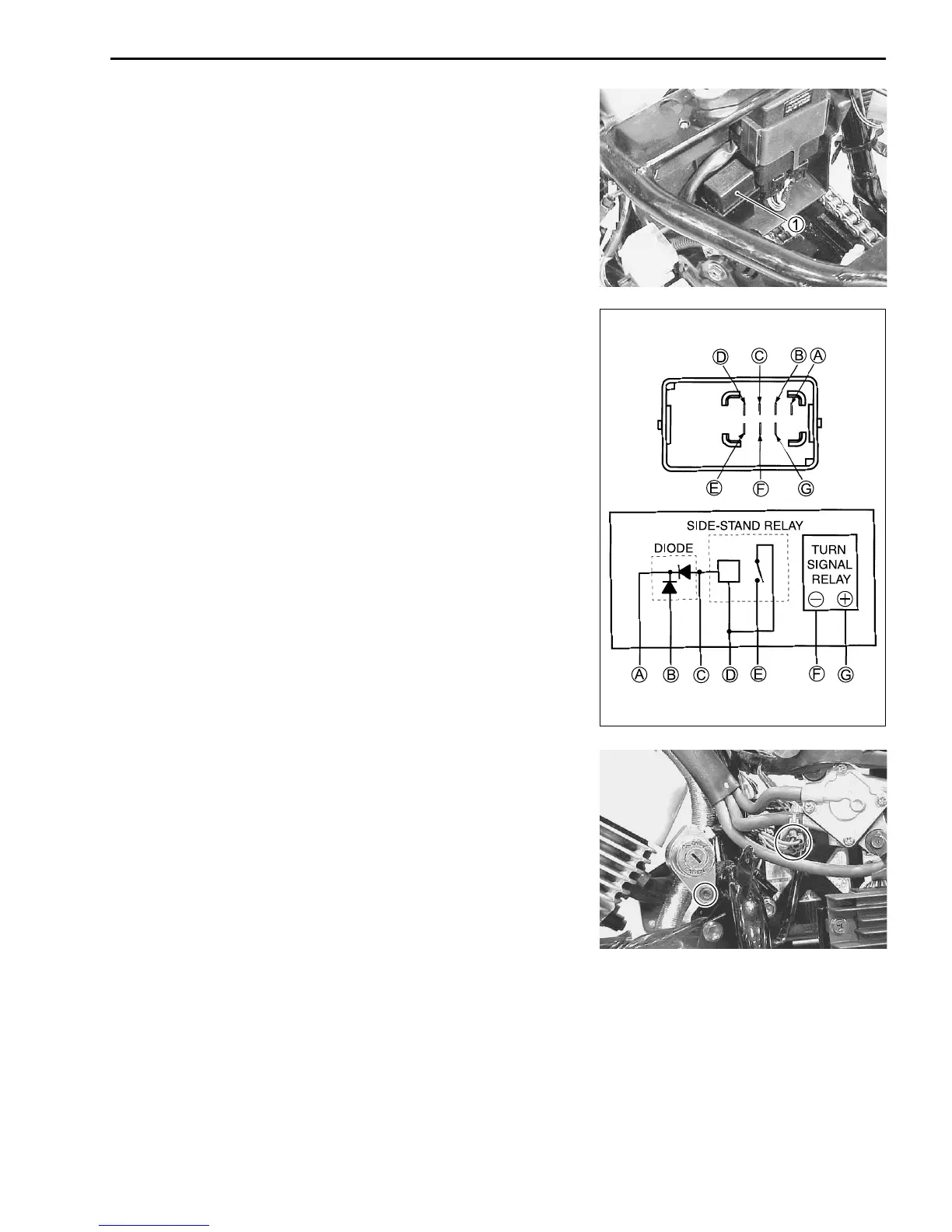

TURN SIGNAL/SIDE-STAND RELAY
The turn signal/side-stand relay 1 is composed of the turn sig-
nal relay, side-stand relay and diode.
• Remove the luggage box. (!6-7)
INSPECTION
Before removing the turn signal/side-stand relay, check the op-
eration of the turn signal light.
If the turn signal light does not illuminate, inspect the bulb, turn
signal switch and circuit connection.
If the bulb, turn signal switch and circuit connection are OK, the
turn signal relay may be faulty; therefore, replace the turn sig-
nal/side-stand relay with a new one.
NOTE:
* Make sure that the battery is fully charged.
* Refer to the page 6-16 for the side-stand relay and diode in-
spection.
SWITCHES
IGNITION SWITCH REMOVAL
• Remove the left frame cover. (!5-3)
• Disconnect the coupler.
• Remmove the ignition switch by removing the bolt.
/ Ignition switch bolt: 10 N
.
m (1.0 kgf
.
m)

Suzuki VL125 Specifications

General

Displacement	124 cc
Ignition	Electronic ignition (CDI)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm, coil spring, oil damped
Rear Brake	Drum
Overall Length	2, 080 mm
Overall Width	760 mm
Ground Clearance	150 mm
Fuel System	Carburetor
Front Brake	Single disc
Front Tire	90/90-18
Seat Height	735mm
