6-22 ELECTRICAL SYSTEM
Signal
generator
Signal
generator
coupler

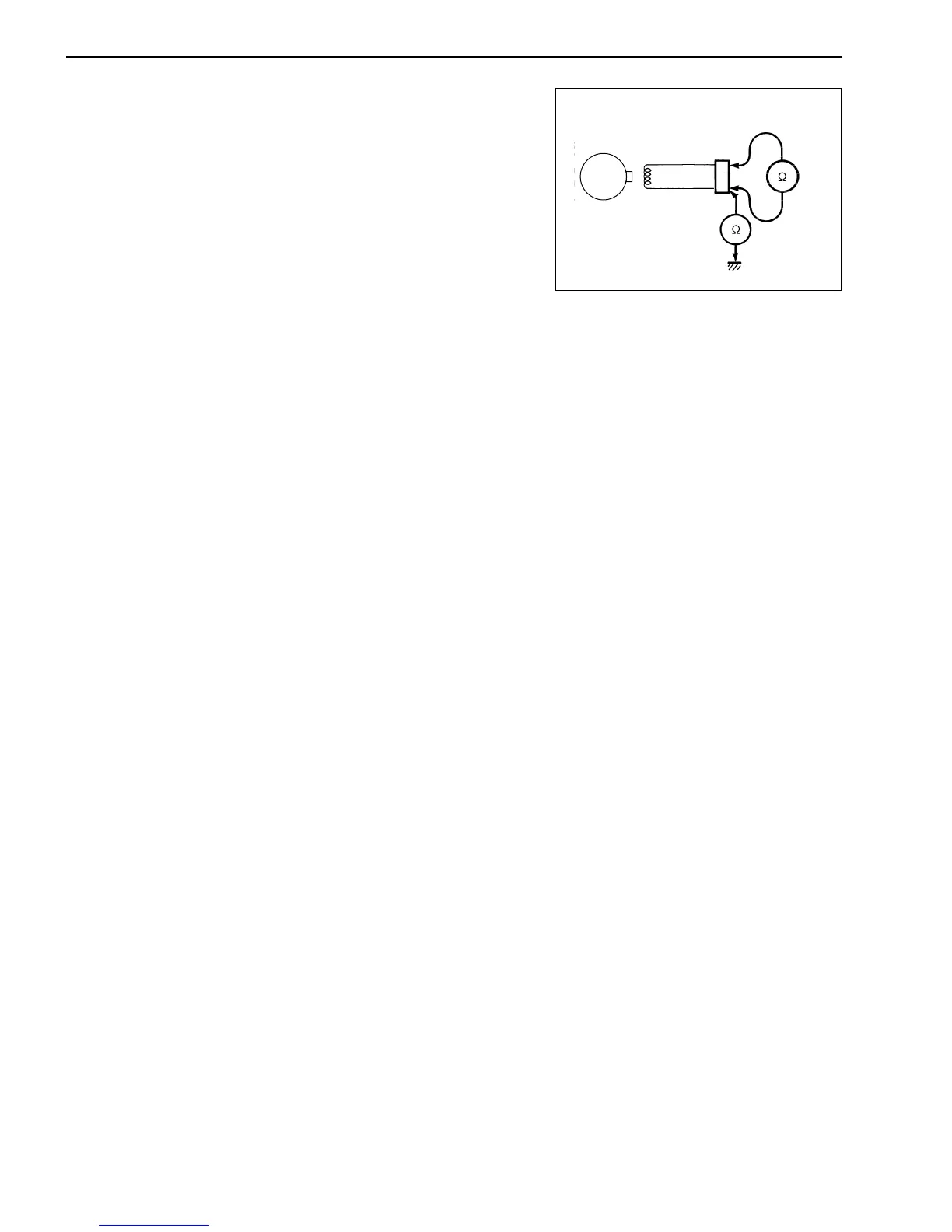

SIGNAL GENERATOR RESISTANCE
• Measure the resistance between the lead wires and ground. If
the resistance is not specified value, the signal generator must
be replaced.
" 09900-25008: Multi circuit tester set
( Tester knob indication: Resistance (Ω)
# Signal generator resistance
: 180 – 280 Ω (Green – Blue)
: ∞Ω (Green – Ground)
