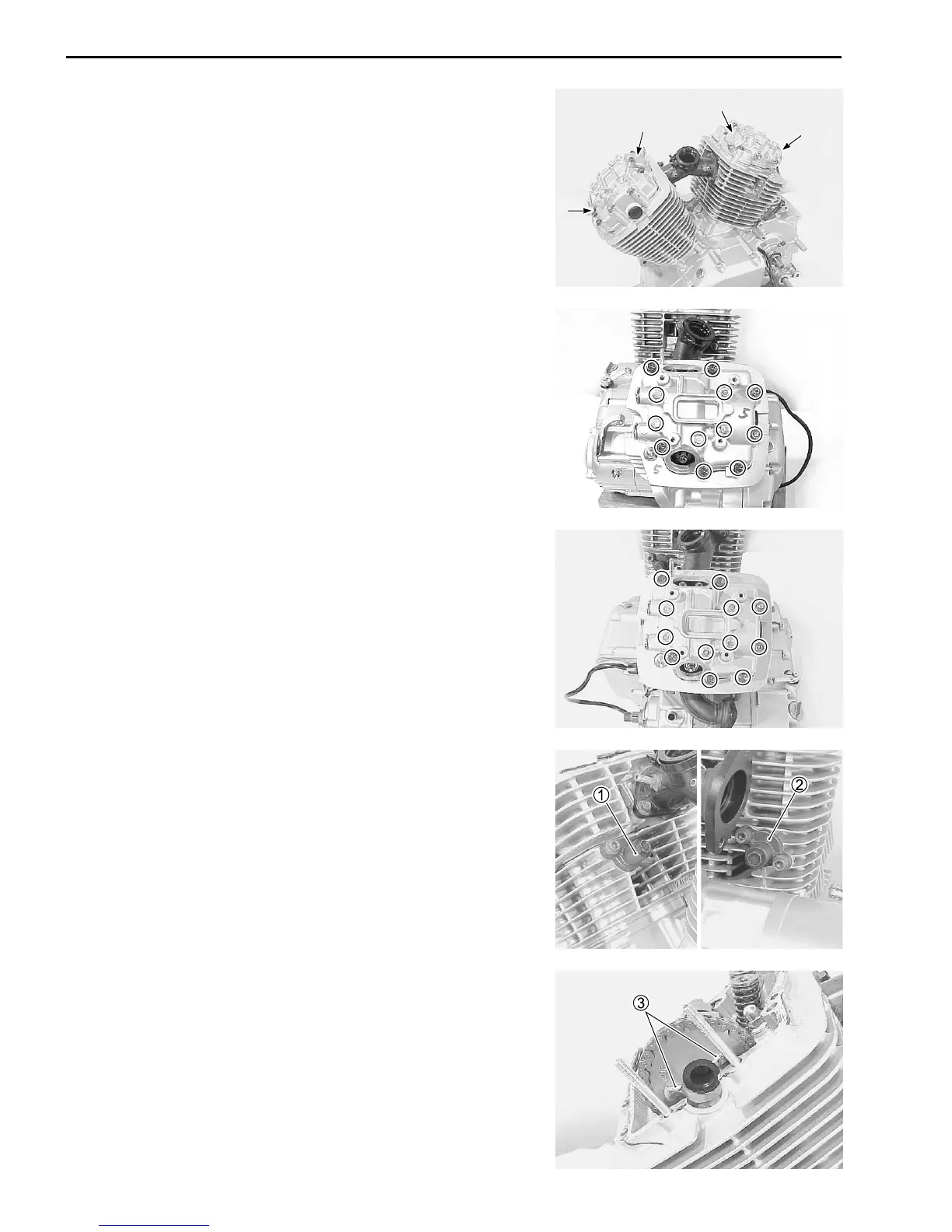

3-12 ENGINE
• Remove the valve inspection caps.
• Remove the front cylinder head cover.
NOTE:
When removing the cylinder head covers, the piston must be at
top dead center on the compression stroke. (
9
2-4)
• Remove the rear cylinder head cover.
No. 1 (REAR)
CAM SHAFT AND SPROCKET
• Remove the cam chain tension adjusters 1 and 2.
No. 2 (FRONT)
• Remove the camshaft sprocket bolts 3.
• Remove the camshafts and sprockets.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Suzuki VL125 and is the answer not in the manual?

Suzuki VL125 Specifications

General IconGeneral
Displacement124 cc
IgnitionElectronic ignition (CDI)
StarterElectric
Transmission5-speed constant mesh
Final DriveChain
Front SuspensionTelescopic, coil spring, oil damped
Rear SuspensionSwingarm, coil spring, oil damped
Rear BrakeDrum
Overall Length2, 080 mm
Overall Width760 mm
Ground Clearance150 mm
Fuel SystemCarburetor
Front BrakeSingle disc
Front Tire90/90-18
Seat Height735mm
