ENGINE 3-19

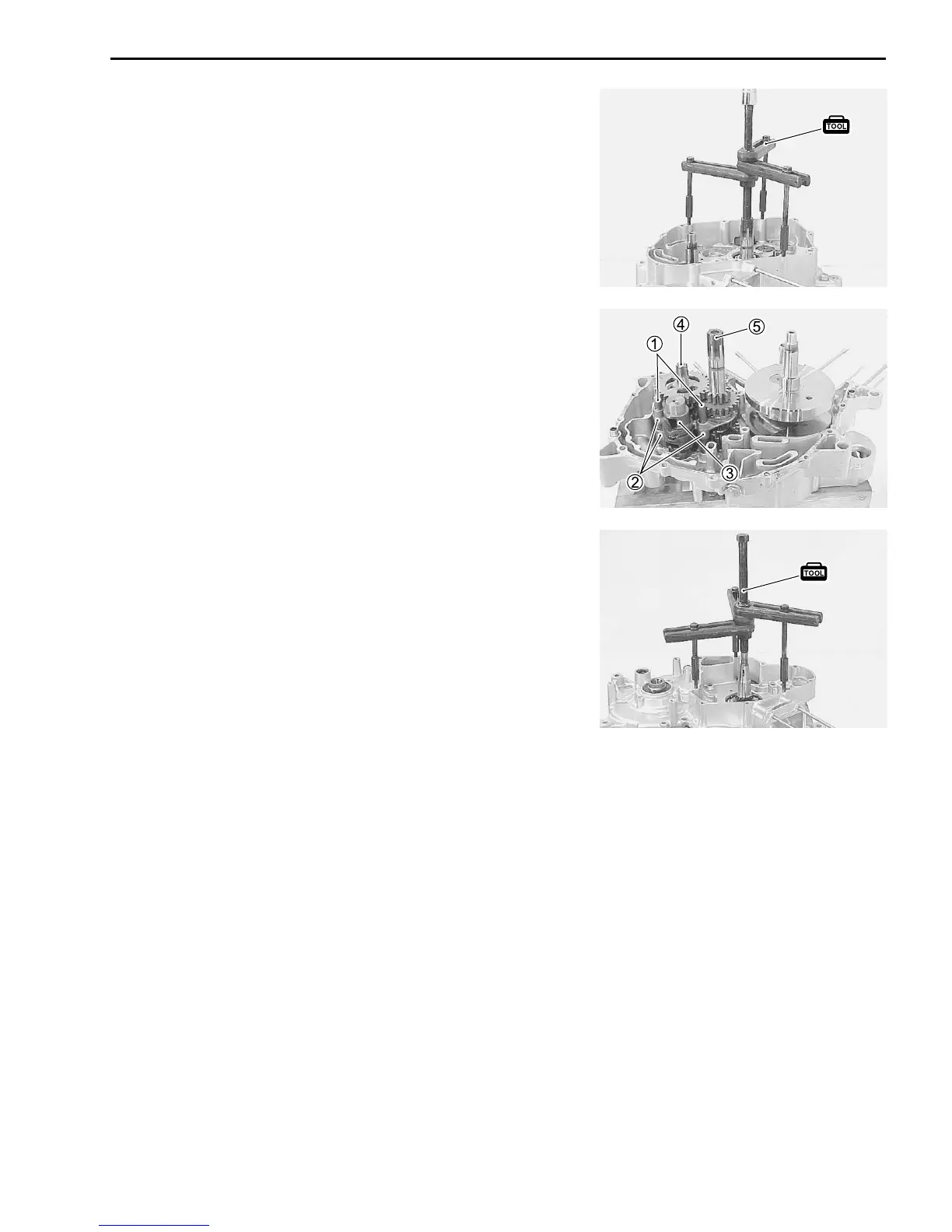

Separate the crankcase into 2 parts, right and left, with a crank-
case separating tool.
! 09920-13120: Crankcase separator
NOTE:
Fit the crankcase separating tool, so that the tool arms parallel
the side of the crankcase. The crankshaft and transmission com-
ponents must remain in the left crankcase half.
Remove the crankshaft by using the special tool.
! 09920-13120: Crankcase separator
Remove the gearshift fork shafts 1 and gearshift forks 2.
Remove the gearshift cam 3.
Remove the driveshaft assembly 4, countershaft assembly 5.
