Cabling
It is recommended that you route all cables to and from the base station
along the side of the cabinet so the cooling airflow is not restricted.
Cables should be well supported so that the connectors or terminals on the
base station and on the ends of the cables do not have to support the full
weight of the cables.
Cables must be routed so that they do not restrict the air outlets at the rear
of the base station.
5.6.1 Mounting and Support Kits
For TB7300 mounted and support operation, Tait offers the following kits
for order:

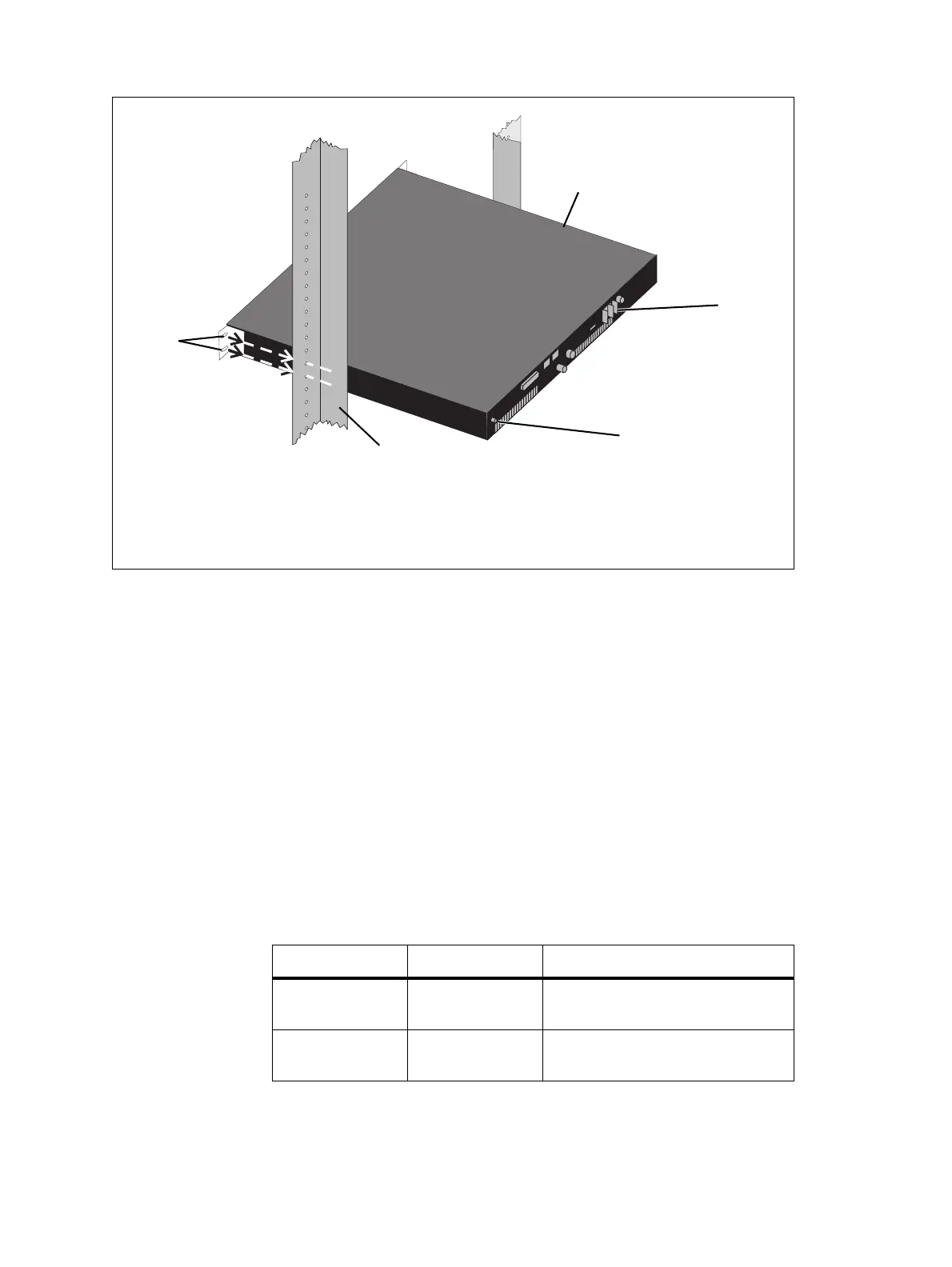

Figure 5.3 Base station mounting points
b
main mounting holes
e
ground point
c
base station
f
rack frame
d
DC power connector
f
E
c
b
D
Item Number Item Description
TBD-SP-0002 TB7300 Wall
Mounting Kit
Wall-mounting option with brackets
that attach to the rear of the chassis
TBD-SP-0003 TB7300 Rear
Support Bracket Kit
Provides additional support when the
base station is mounted in a rack
