Tektronix DPO71254C Printable Help

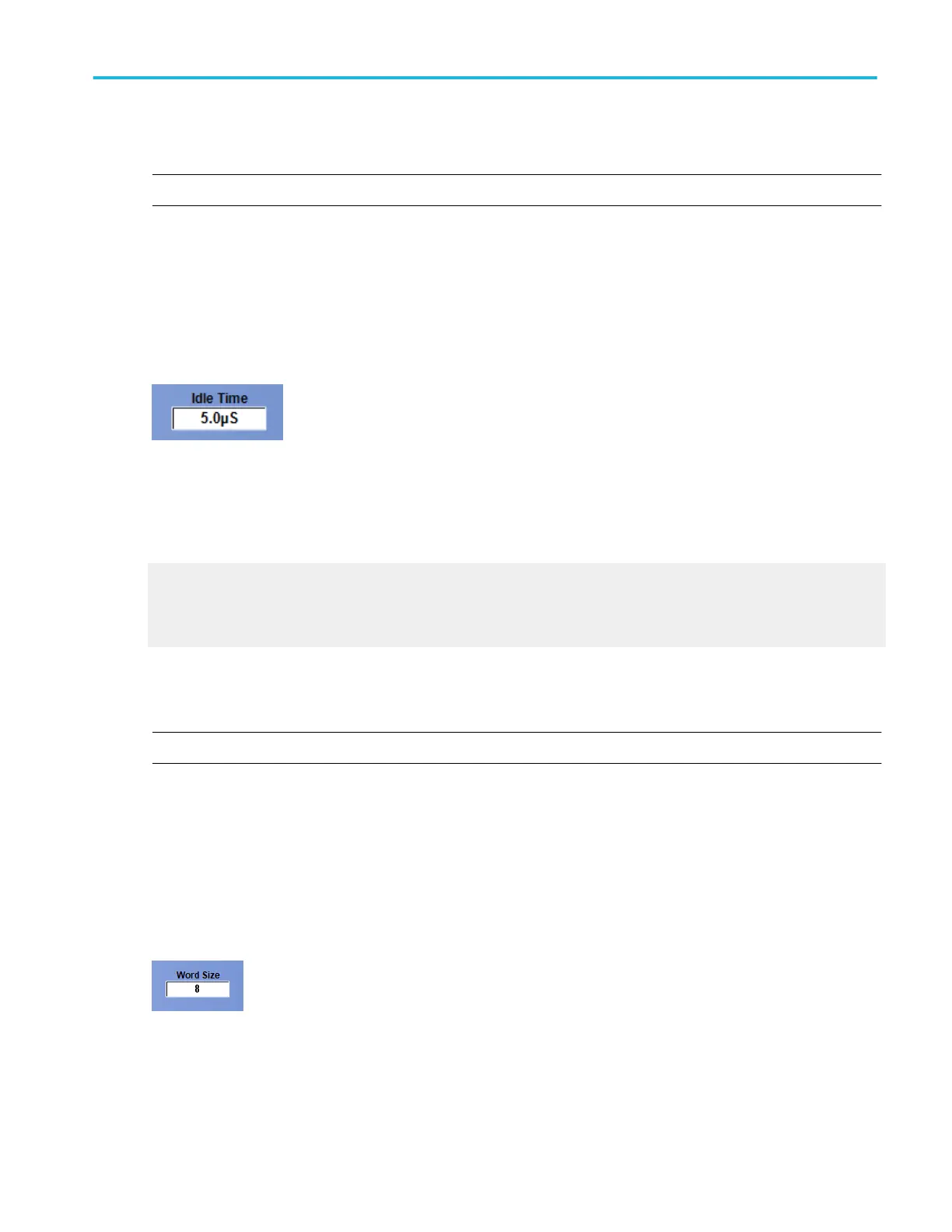

Set the SPI bus idle time
NOTE. The SPI bus Idle Time option is available only on instruments with option SR-EMBD.
From the Bus Setup window, select the Select tab and the SPI Serial bus type.
To use
■
Select the Idle framing from the drop-down list.
■
To change the idle time, click the Idle Time entry box and use the keypad to enter a value.
Behavior
The instrument changes the idle time and uses that to decode the selected SPI bus.
What do you want to do next?
Learn more about bus setups.
Learn about bus configuration.
Learn about digital setups.
Set the SPI bus word size
NOTE. The SPI Bus Word Size option is available only on instruments with option SR-EMBD.
From the Bus Setup window, select the Select tab and the SPI Serial bus type.
To use
■
Scroll through the Bus list and select the SPI bus to configure.
■
Click the Word Size box and enter a size using the key pad. You can also edit the value with the keyboard or multipurpose
knob.
Bus setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 145
