To use.
1. Select either the Binary or Hex format option.
2. Use the editor controls to define the pattern to trigger on:
■
Use the alpha - numeric buttons to insert a character in the text box.
■
Click the Home button to place the cursor at the right most position of the text box.
■
Click the Left arrow button to move the cursor one space to the left.
■
Click the Bksp button to delete one character at a time from left to right.
■
Click the Right arrow button to move one space to the right.
■
Click the Clear button to clear the text box.
3. Click Enter to complete the edit.
Behavior. If you select the hexadecimal format and the binary pattern cannot be displayed in hexadecimal format, then the serial
pattern data will display a question mark (?) instead of an alpha - numeric character.
Clicking the X, 0, or 1 button inserts that character to the left of the cursor in the text box.
What do you want to do next?
Learn more about other trigger types.
Go to the Serial Trigger control window.

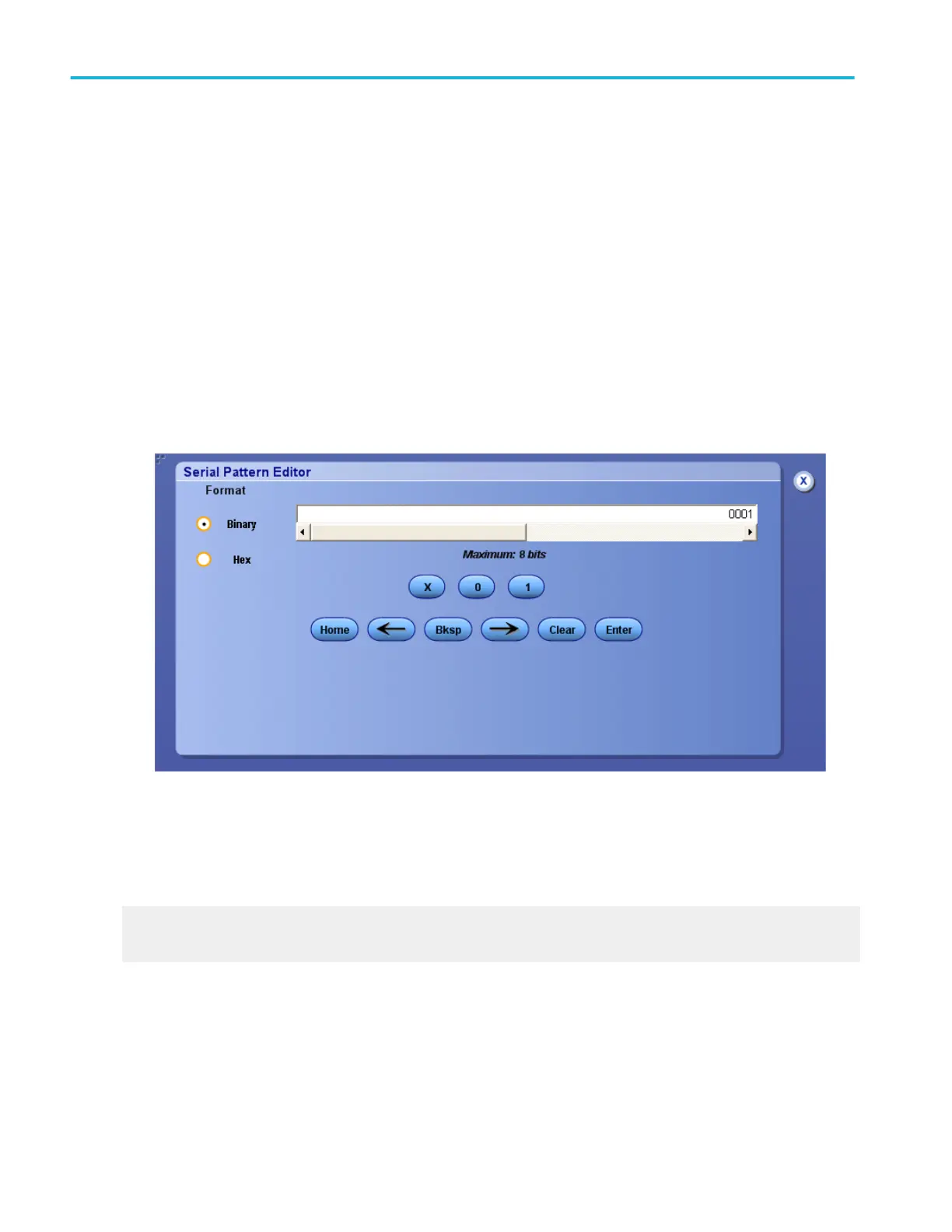

Define the serial trigger on pattern
From the Trig menu, select Serial Pattern Setup.
Oscilloscope reference
826 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
