Set up DDR search parameters

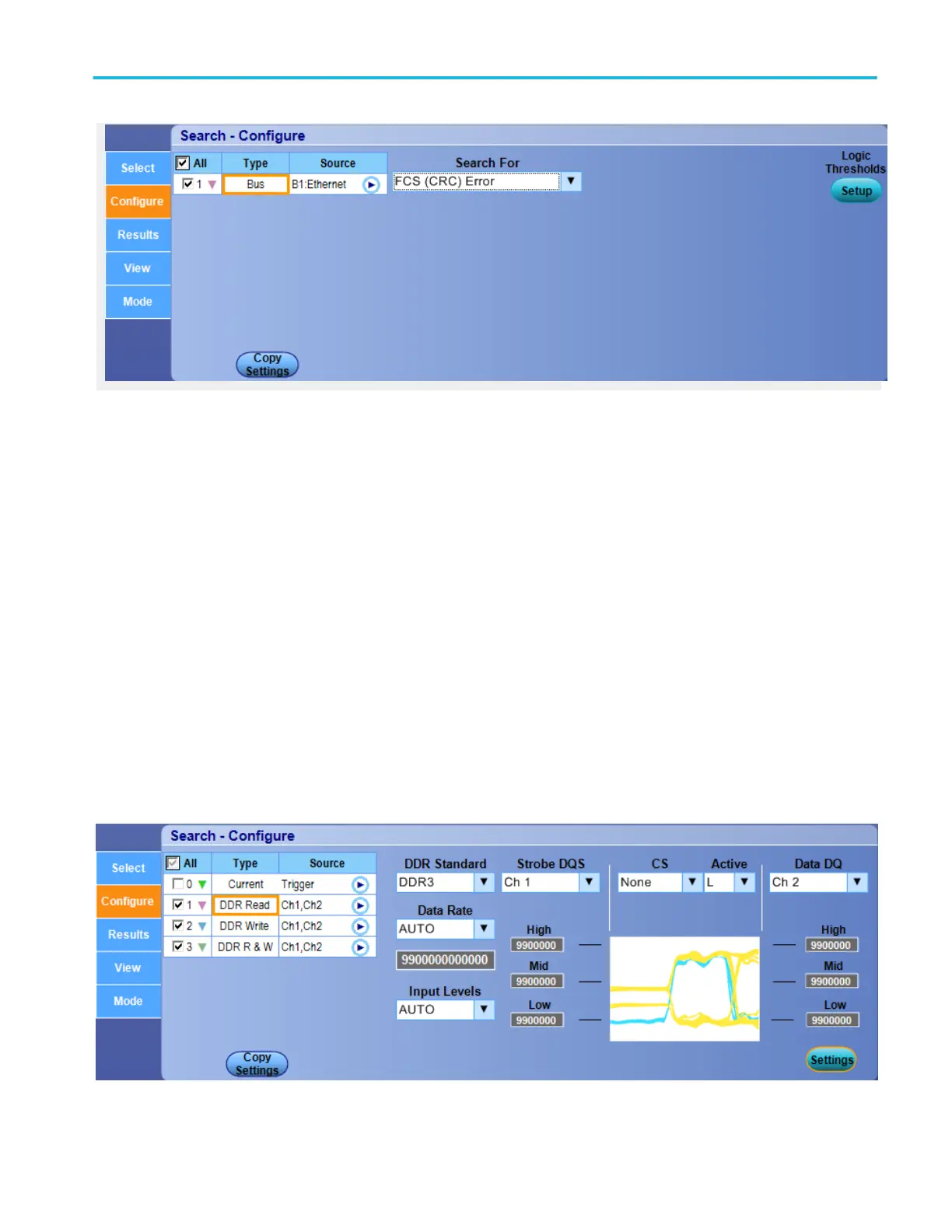

After setting up a DDR bus, go to the Analyze menu, select Search, and then select the bus trigger type; then open the Configure
tab.
Overview
Use the controls to set up DDR, DDR2, DDR3, DDR4, DDR3L, LPDDR, LPDDR2, LPDDR3, GDDR3, GDDR5 bus parameters.
To Use
For information on the controls, click the buttons.
■
Type
■
Source
■
Copy Settings
■
Search Parameters
■
Search / Mark Controls
Analyzing waveforms
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 359
