Set up an edge trigger

From the Trig menu, select Edge Setup.

Overview. Use the controls in this window to set up Edge trigger parameters for general-purpose testing.

To use. For information on the controls, click the buttons.

■

Trigger Type

■

Mark All Trigger Events

■

Settings

■

Source

■

Set to 50%

■

Level

■

Coupling

■

Slope

■

Force Trigger

■

Envelope

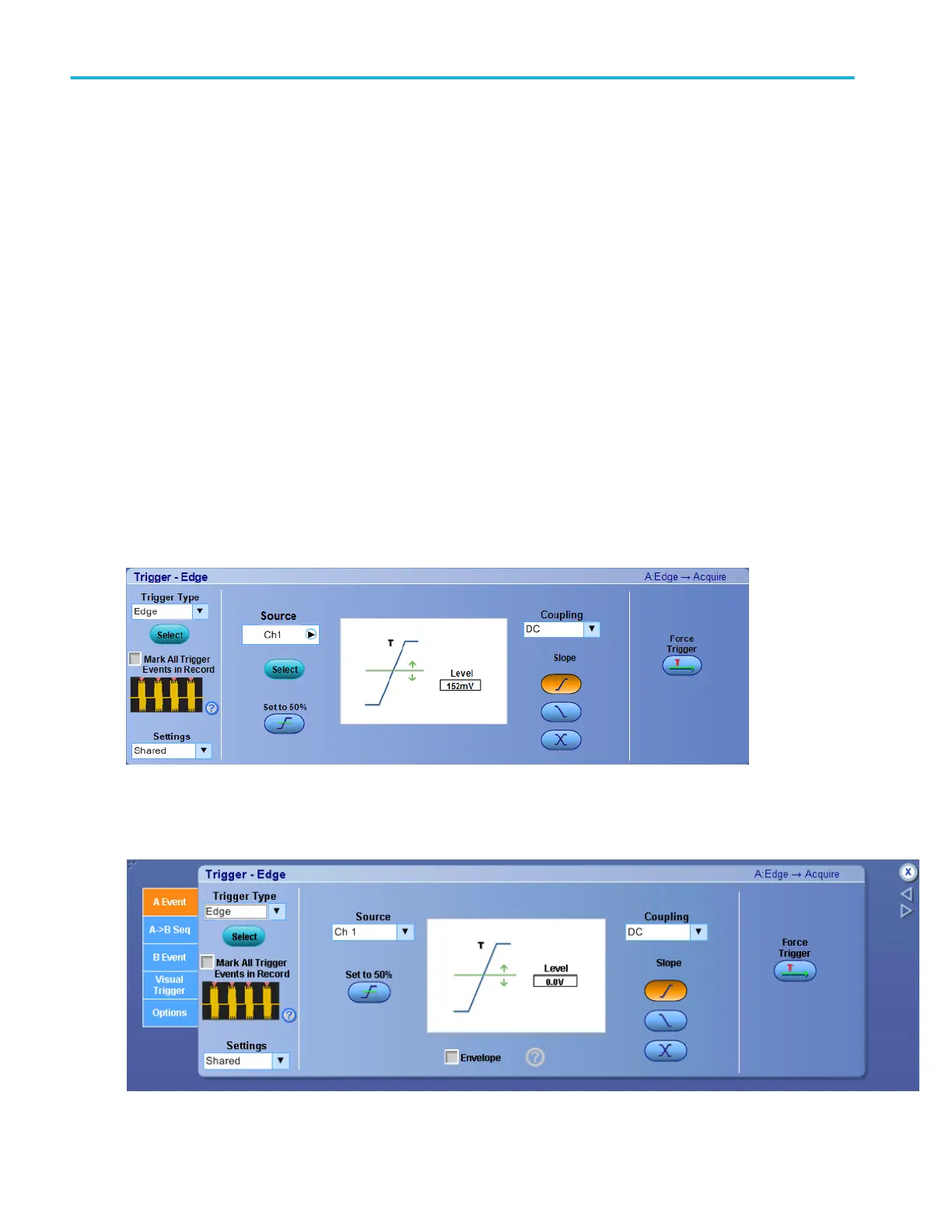

The following Trigger Edge screen appears on MSO70000C/DX Series instruments:

The following Trigger Edge screen appears on DPO70000SX Series instruments:

Trigger setups

414 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
