To use.
■
The correct input termination is set automatically when you attach a probe with a TekProbe or TekVPI interface. For other
probes, you must set the input termination manually.
■
Select the input coupling for the signal from the attached probe to the instrument.
What do you want to do next?
Learn more about the Bandwidth controls.
Offset and clipping

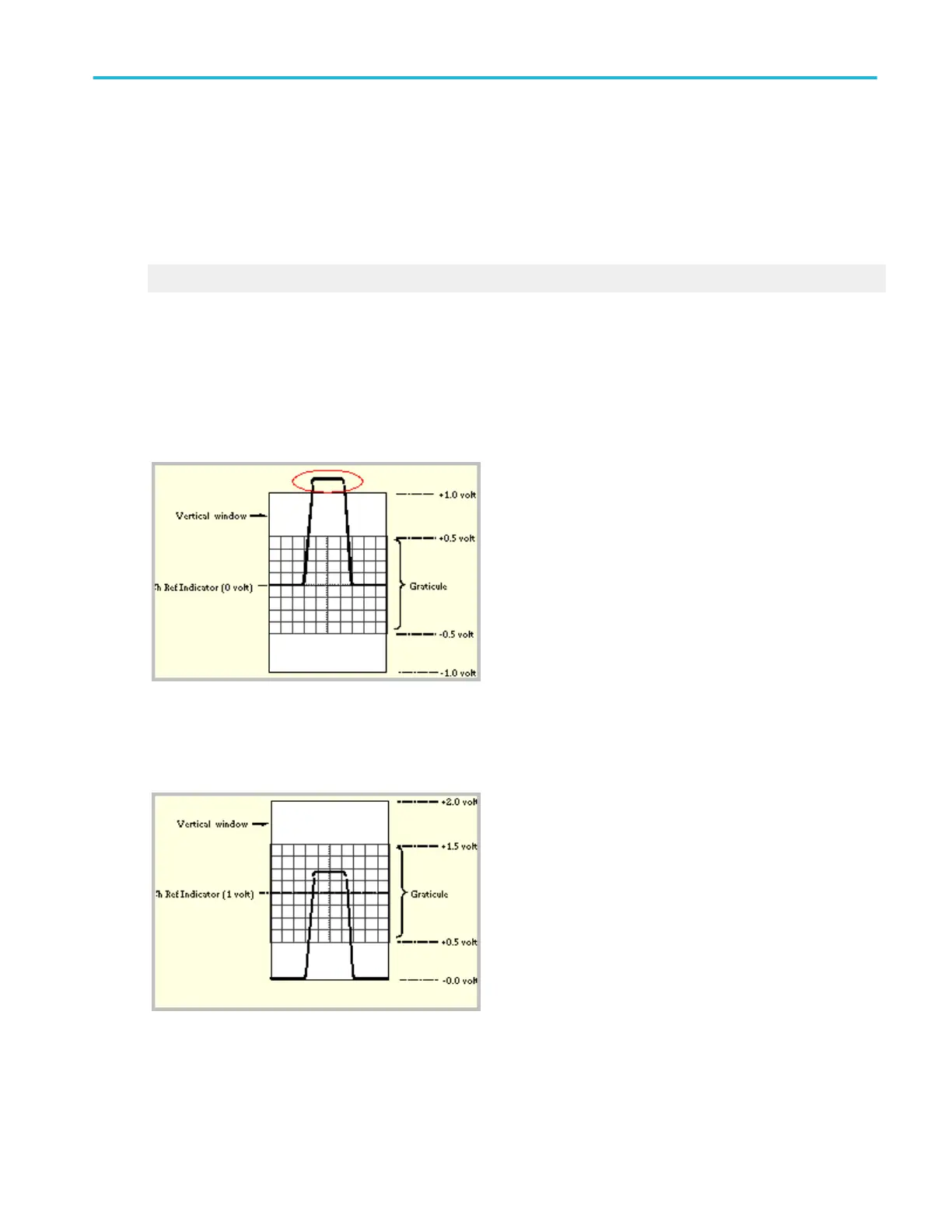

Clipping. The circled portion of the incoming waveform is clipped, and therefore, is not acquired.
The clipped portion cannot be processed or displayed.
Offset can move the acquisition window vertically relative to the incoming waveform.
Offset removes clipping. By setting an offset to vertically shift the acquisition positive relative to the waveform, the clipped
portion can be acquired.
Oscilloscope reference
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 813
