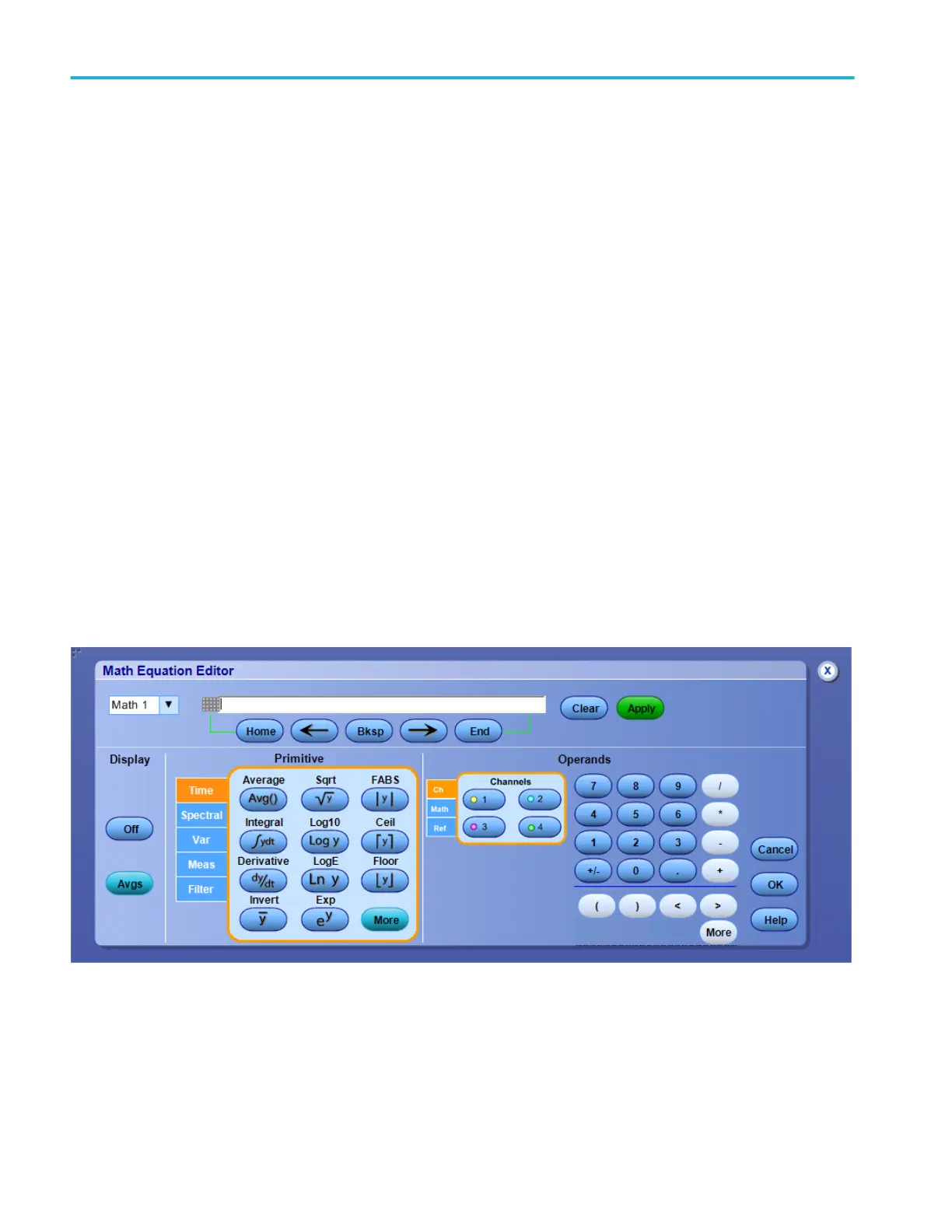

Math equation editor

Math equation editor control window

From the Math menu, select Equation Editor, or click the Editor button in the Math Setup or Spectral Setup control windows.

Overview. Use the Math Equation Editor control window to define or edit math waveforms. The readout shows the math

expression as you construct it. New functions are added at the beginning of the expression each time you click one of the

function buttons.

To use. For information on the controls, click the buttons.

■
