Tektronix DPO71254C Printable Help

To use. For information on the controls, click the buttons.
■
Trigger Type
■
Mark All Trigger Events
■
Settings
■
Source
■
Levels
■
Transition
■
Slope
■
Qualification
■
Pattern
■
Edit Button
NOTE. The Trigger Transition screen on DPO and MSO instruments is the same except for the source selection and Trigger if
Transition Qualification options. In some instruments, the source selection is a drop-down list and the Trigger if Transition
Qualification option has Occurs and Logic. In other instruments the source selection includes a combo list and a Select button.
The Trigger if Transition Qualification option has Occurs, Logic, and Occurs And.

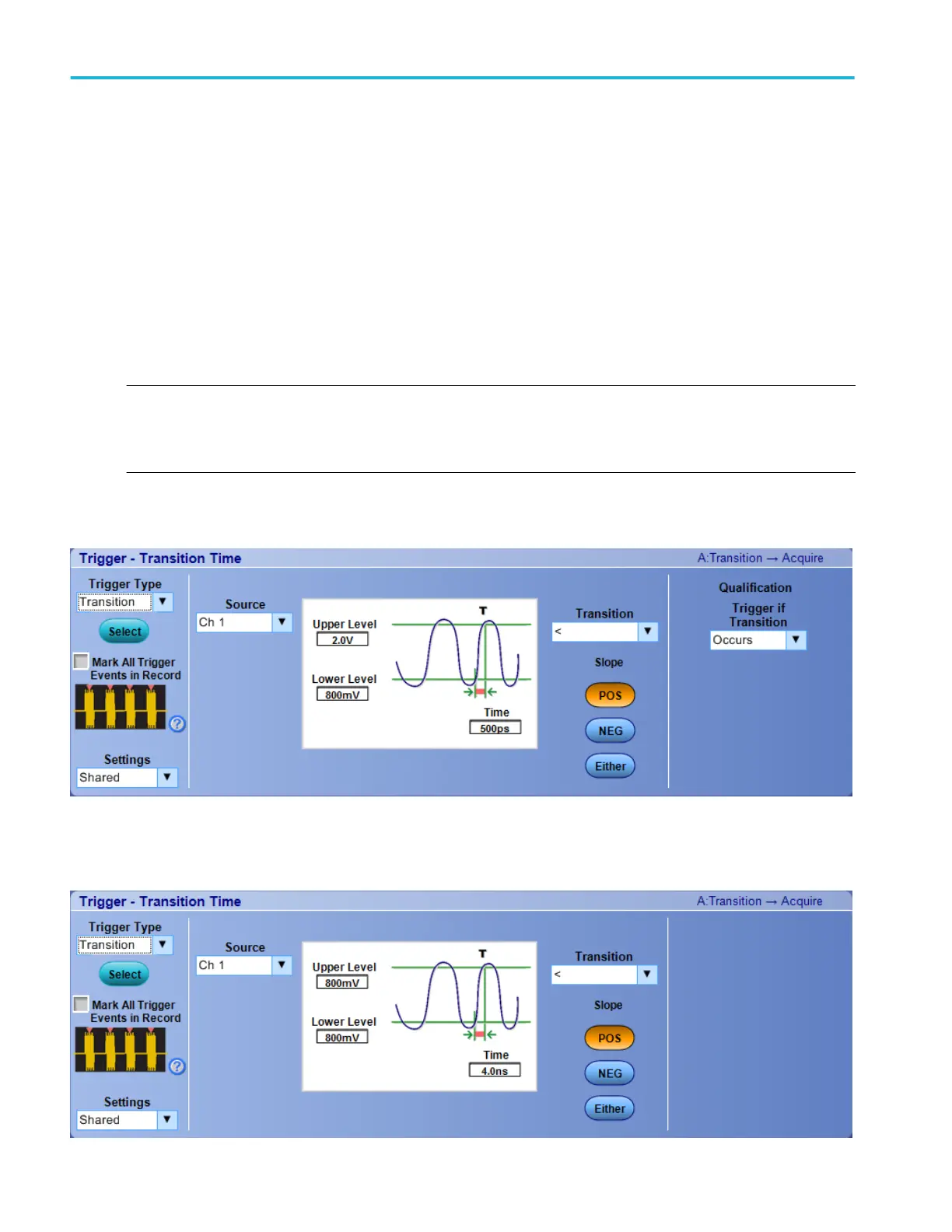

The following Trigger Transition screen appears on MSO70000C/DX and DPO7000C Series instruments:
The following Trigger Transition screen appears on MSO/DPO5000B Series instruments:
Trigger setups
434 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series

Tektronix DPO71254C Specifications

General

Bandwidth	12.5 GHz
Channels	4
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Record Length	125 Mpoints
Vertical Resolution	8 bits
Maximum Input Voltage	5 Vrms (50 Ω)
Trigger Modes	Edge, Pulse Width, Runt, Setup/Hold, Serial
Display	12.1 in. (307 mm) LCD
Interface	USB, Ethernet, GPIB, HDMI
Sample Rate	50 GS/s (all channels)
Input Impedance	50 Ω, 1 MΩ
