Set up a CAN bus trigger

NOTE. The Bus Trigger Control Window for CAN Serial option is available only on instruments with option SR-AUTO.

From the Trigger menu, select Bus setup.

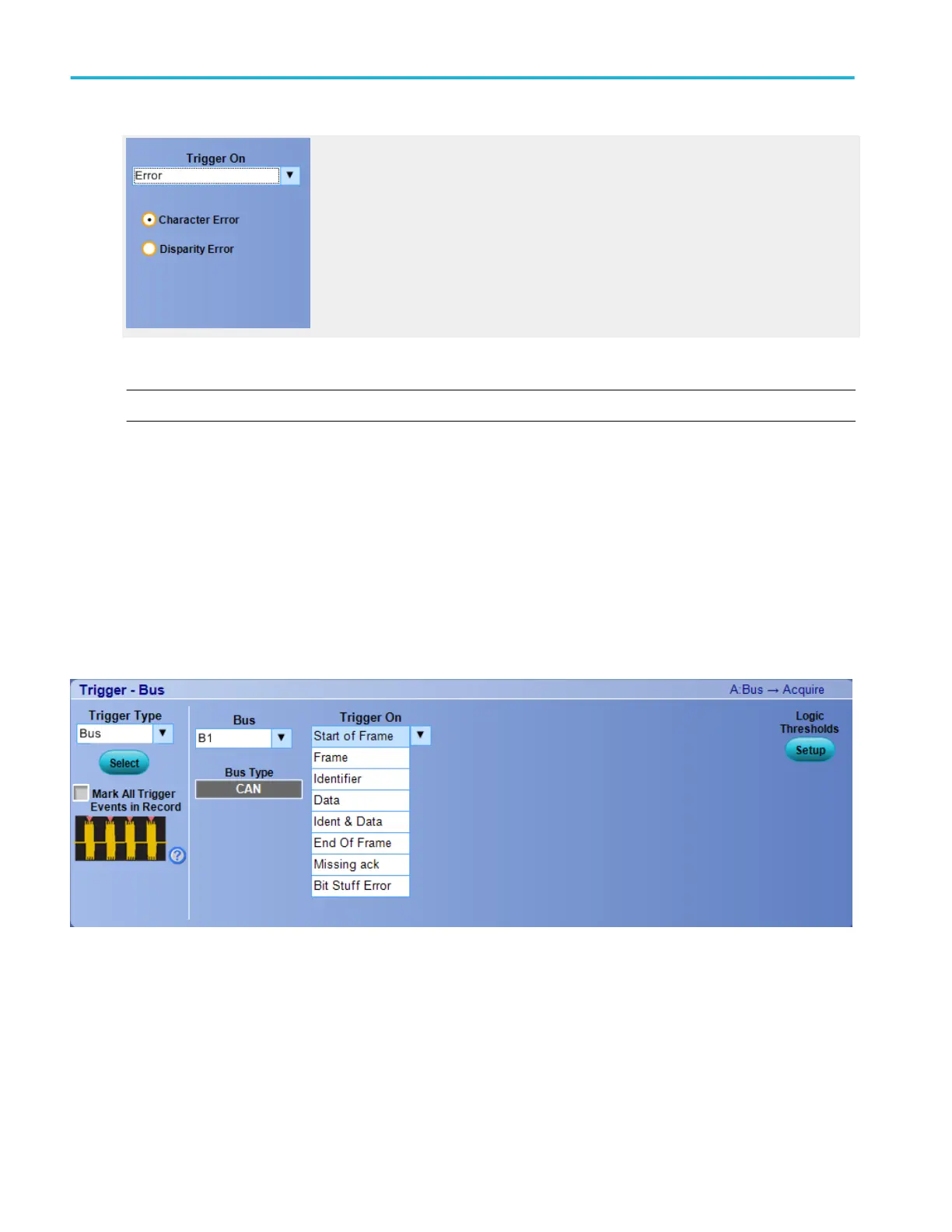

Overview. Use the controls to set up the CAN Bus parameters.

To use. For information on the controls, click the buttons.

■

Trigger Type

■

Mark All Trigger Events

■

Bus

■

Logic Thresholds

Trigger setups
