Zoom control window

From the Vertical or Horiz /Acq menus, select Zoom Controls, or push the front-panel MultiView Zoom button (DPO7AFP

required on DPO70000SX instruments).

Overview

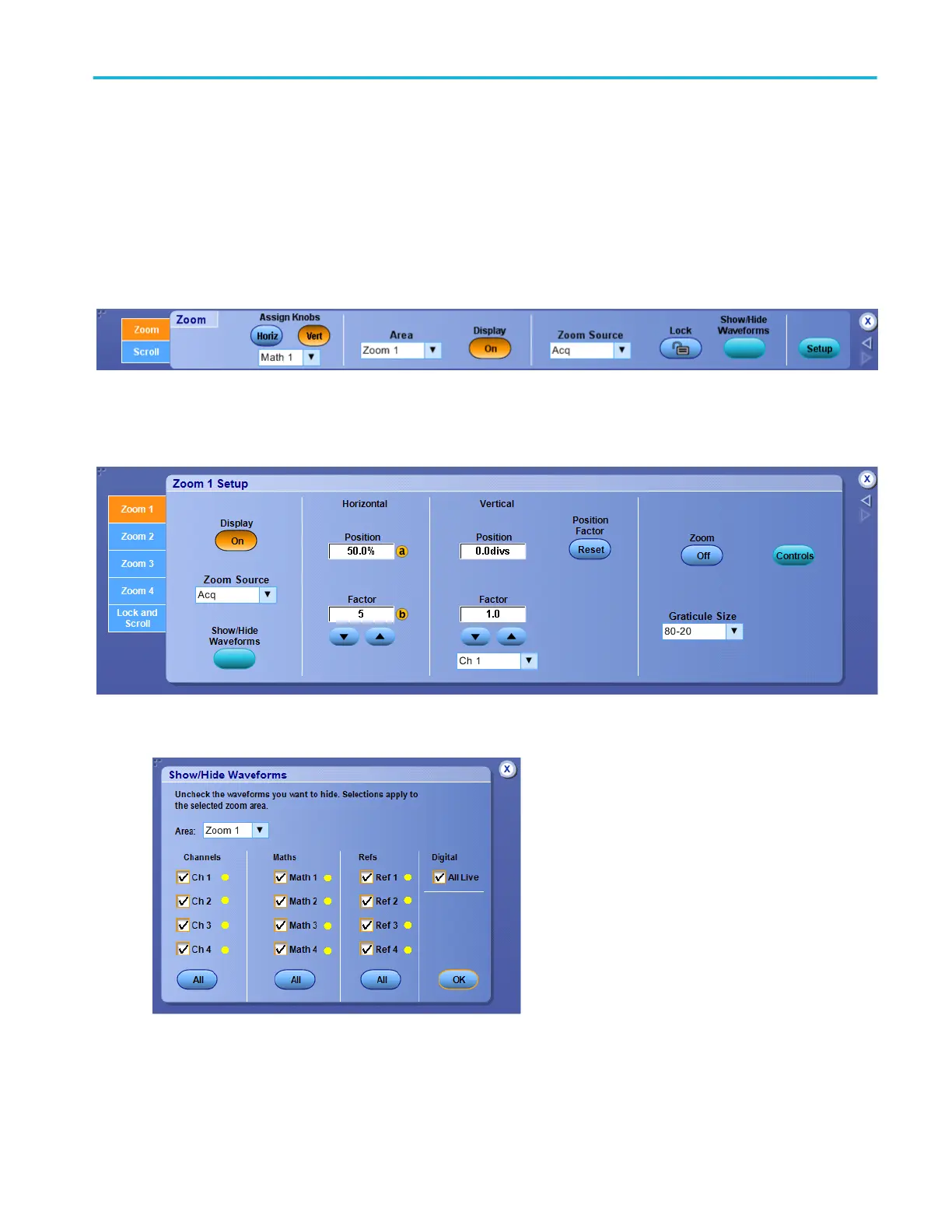

Use the Zoom control window to select the Zoom Area and Source, assign, and to lock and scroll the zoomed areas.

The following screen appears on MSO70000C/DX Series instruments:

Vertical setups

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 483
