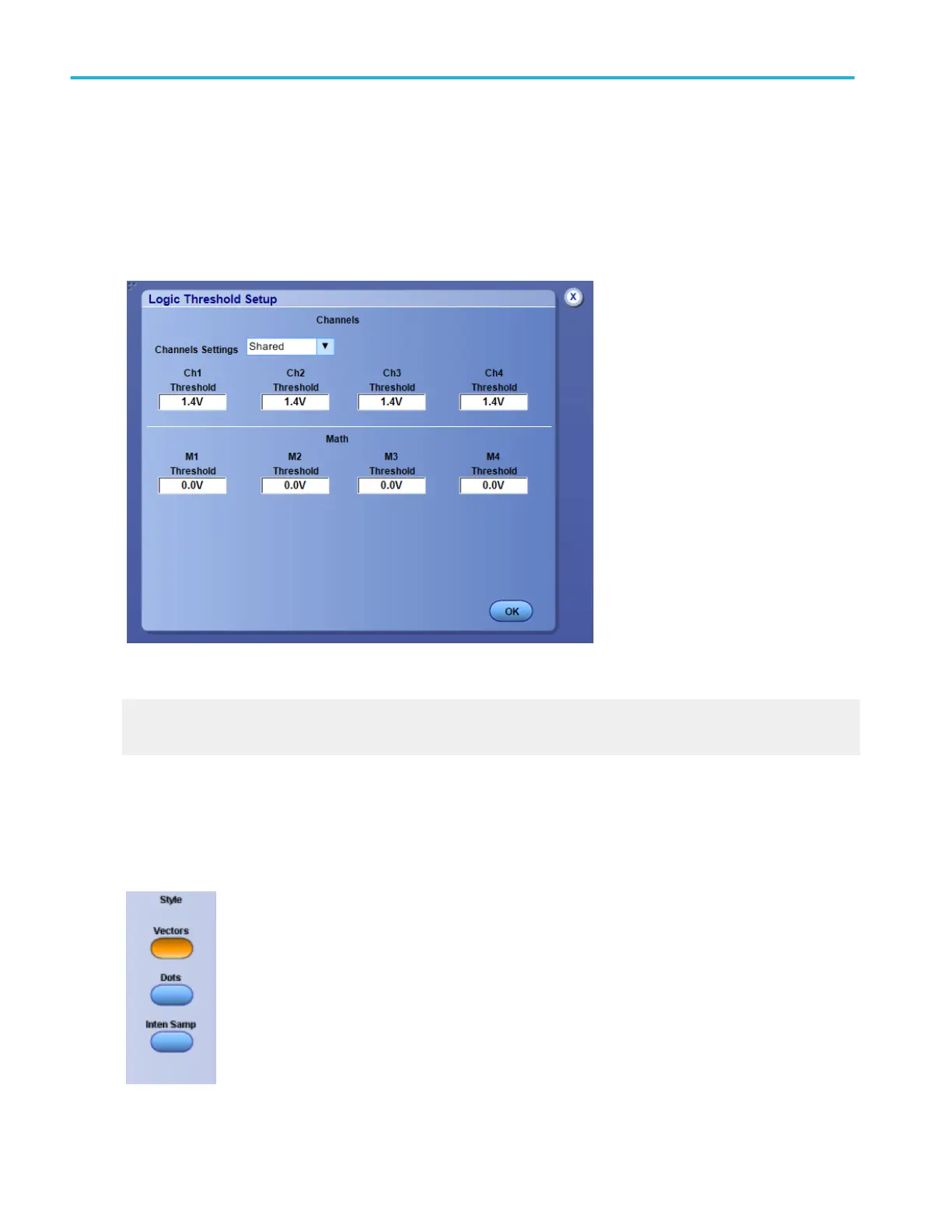

Click the Threshold entry box for the desired channel and use the keypad to enter a value or use the multipurpose knobs to

select a voltage level.

■

Click the OK button.

What do you want to do next?

Learn about the digital channel setup.

Learn about bus setups.

Select the display style

From the Display menu, select Display Setup; then open the General tab.

To use. Click one of the buttons to select the waveform display style.
