Tektronix MDO34 User Manual

Double-tapping a digital waveform handle opens the digital channel configuration menu.
Dragging a digital signal handle over another handle swaps location of the signals in the waveform view
. Dragging a digital signal
handle out of the group, creates a new group. A selected digital group or signal handle can be moved using the Vertical Position
control.

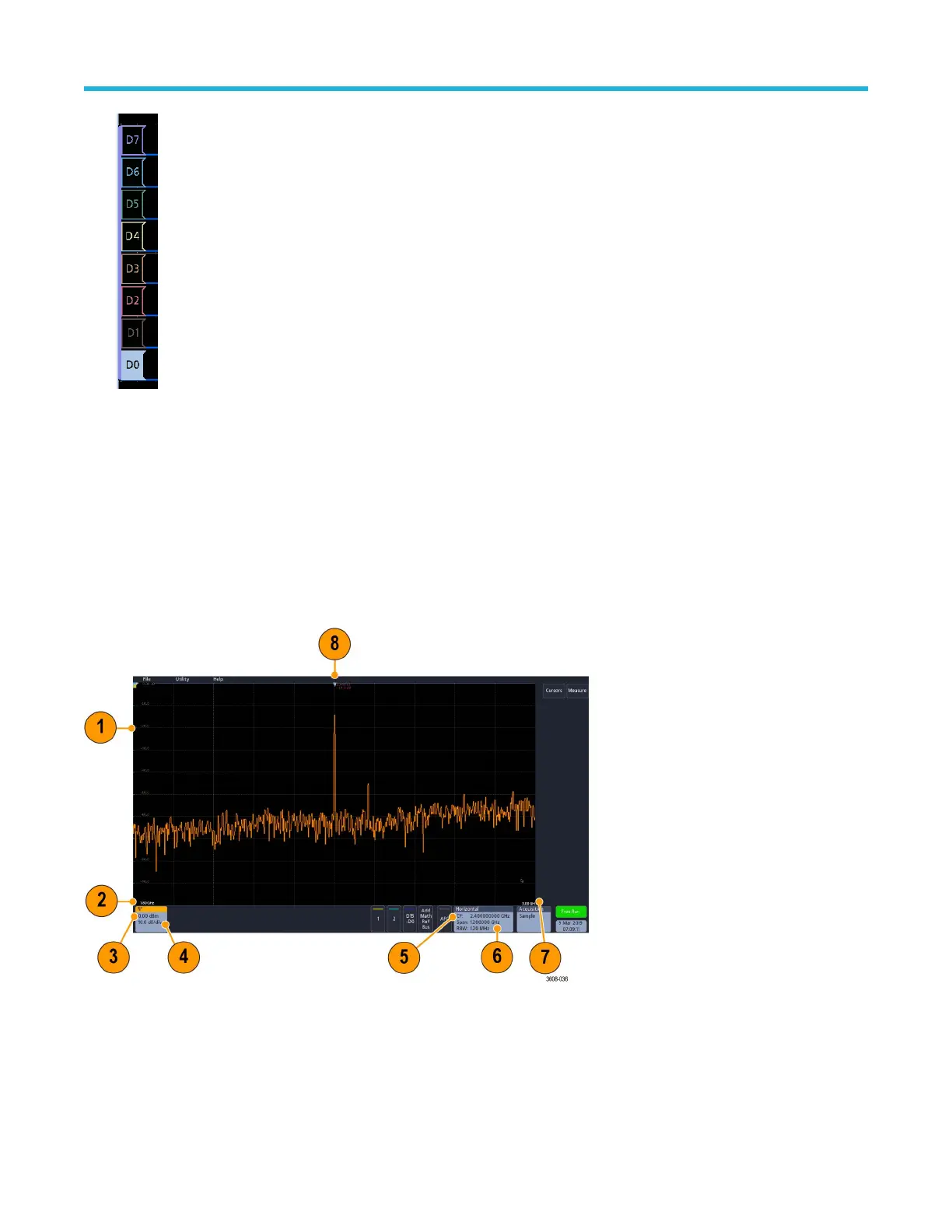

Identifying items in the frequency domain display
This topic shows and describes each element of the frequency domain display.
To activate the frequency domain display, press the front panel RF button or tap the RF button in the display .
Each area of the user interface has a specific function that helps manage information or controls.
1. V
ertical graticule labels
2. Start frequency
3. Reference level
4. Vertical scale
5. Center frequency
Getting acquainted with your instrument
3 Series Mixed Domain Oscilloscope Printable Help 47

Tektronix MDO34 Specifications

General

Analog Channels	4
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Mixed Domain Analysis	Yes
Waveform Capture Rate	>280, 000 wfms/s
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Operating Temperature	0°C to +50°C
Digital Channels	16
Connectivity	USB, LAN, HDMI
Arbitrary Function Generator	50 MHz
Trigger Types	Edge, Pulse Width, Runt, Logic, Setup/Hold, Rise/Fall Time, Video
Input Impedance	1 MΩ
Maximum Input Voltage	300 Vrms
Dimensions	140 mm
Weight	4.5 kg
Bandwidth	100 MHz, 200 MHz, 350 MHz, 500 MHz
Display	10.1-inch capacitive touch HD display
Voltmeter	4-digit
