This section describes concepts of and procedures for setting up the oscilloscope to acquire the signal as you want it to.
Setting Up Analog Channels
Use front-panel buttons and knobs to set up your instrument to acquire signals using the analog channels.

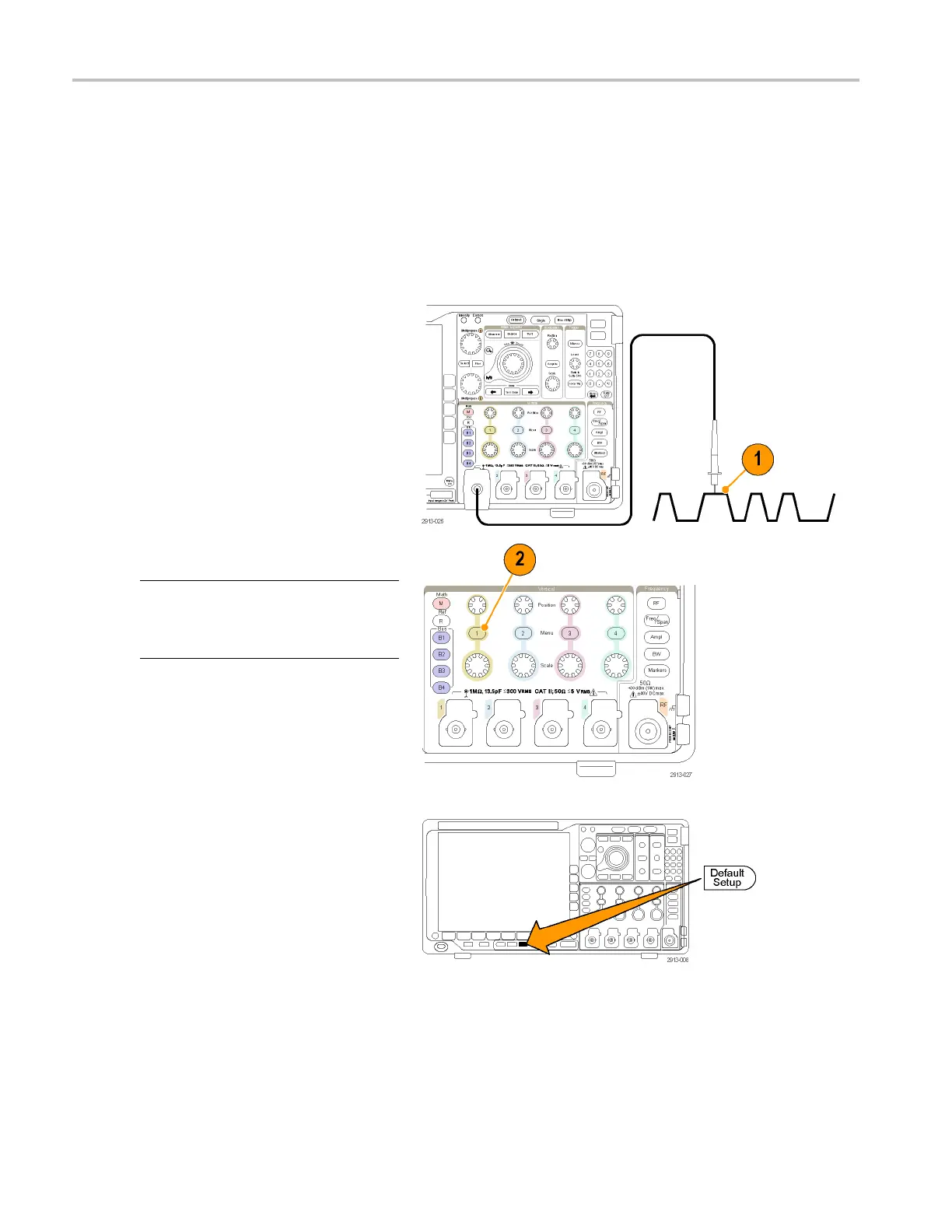

1. Connect the TPP0500/TPP1000 or VPI
probe to the
input signal source.
2. Select the input channel by pushing the
front-panel buttons.
NOTE. If you are using a probe that does not
supply probe encoding, set the attenuation
(probe factor) on the oscilloscope vertical
menu for the channel to match the probe.
3. Push D
efault Setup .
50 MDO4000 Series Oscilloscopes User Manual
