Removal and Replacement
6–8
TDS 340A, TDS 360 & TDS 380 Technical Reference
Line Fuse and Line Cord
WARNING. To avoid injury or death, unplug the line cord from the line voltage
power source before continuing.
Required tool: a flat-bladed screwdriver (Item 4).
1. Set the oscilloscope so its bottom is down on the work surface and its rear is
facing you.
2. Find the line cord on the rear cover. (See Figure 6–2.) Now, remove the
line-cord retaining clamp by first unplugging the line cord from its recep-
tacle.
3. Next, grasp both the line cord and the retaining clamp and rotate them
90 degrees counter-clockwise.
Unplug
Rotate
Pull
2
1
3

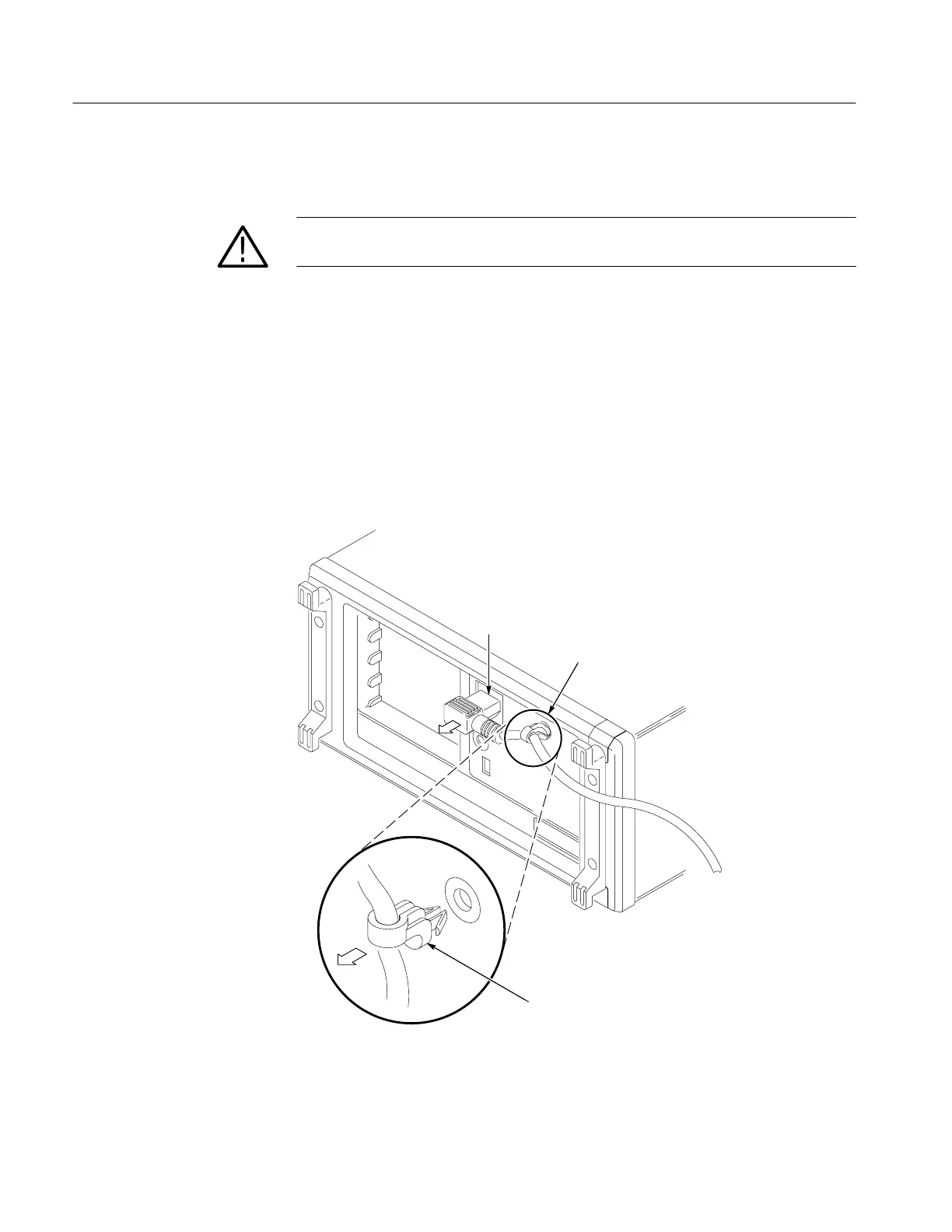

Figure 6–2: Line cord removal
To Next Page
