Removal and Replacement
TDS 340A, TDS 360 & TDS 380 T
echnical Reference
6–9
4.
Pull the line cord and clamp away to complete the removal.
5.

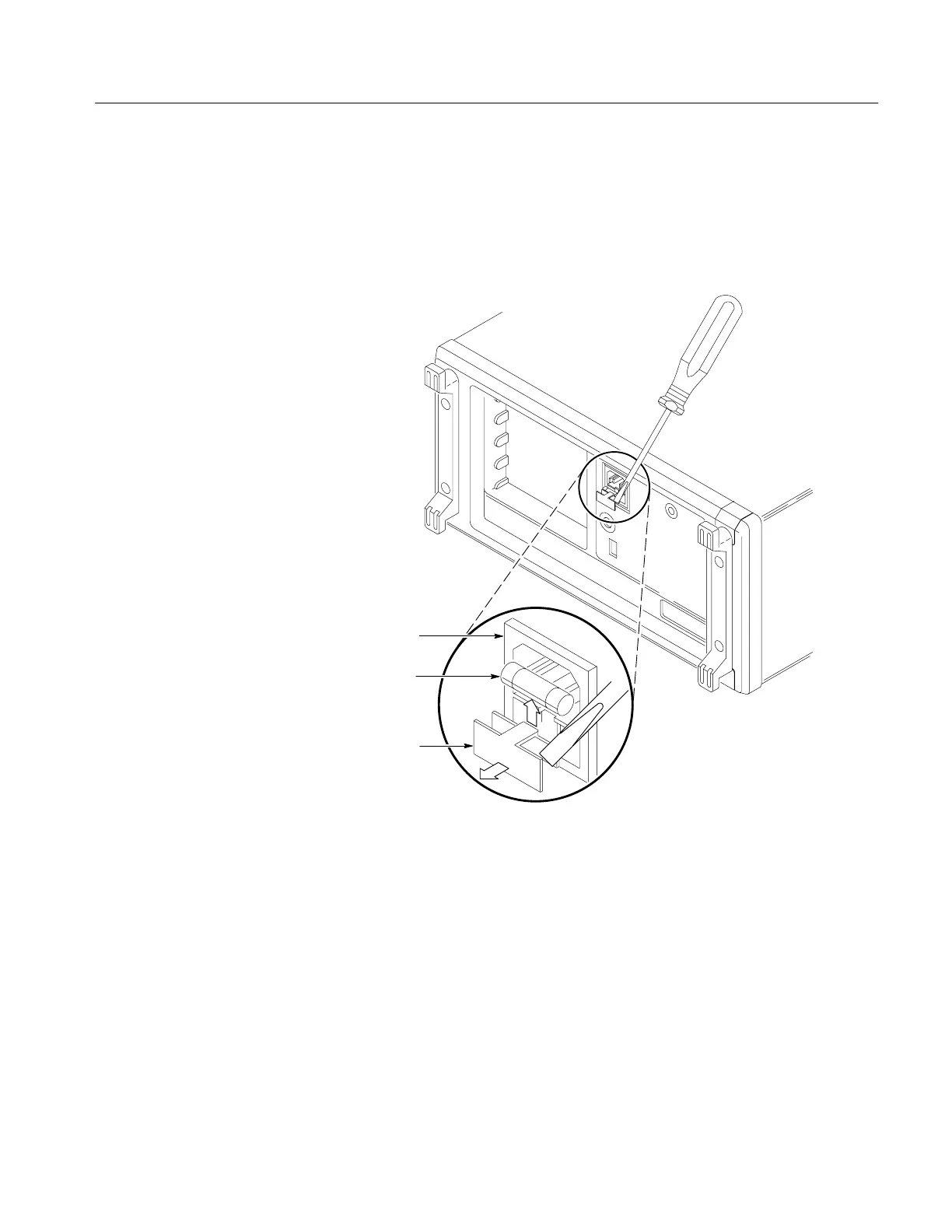

Locate the fuse drawer beneath the line voltage plug on the rear panel. Pry
open the drawer with a small flat-bladed screwdriver (Item 4), and remove
the line fuse. (See Figure 6–3.)
Fuse
Power connector
Fuse drawer
Figure 6–3: Line fuse removal
6.
Reinstallation:
Do in reverse steps 5 through 2 to reinstall the line fuse and
then the line cord.
