Device Installation
- 9 -

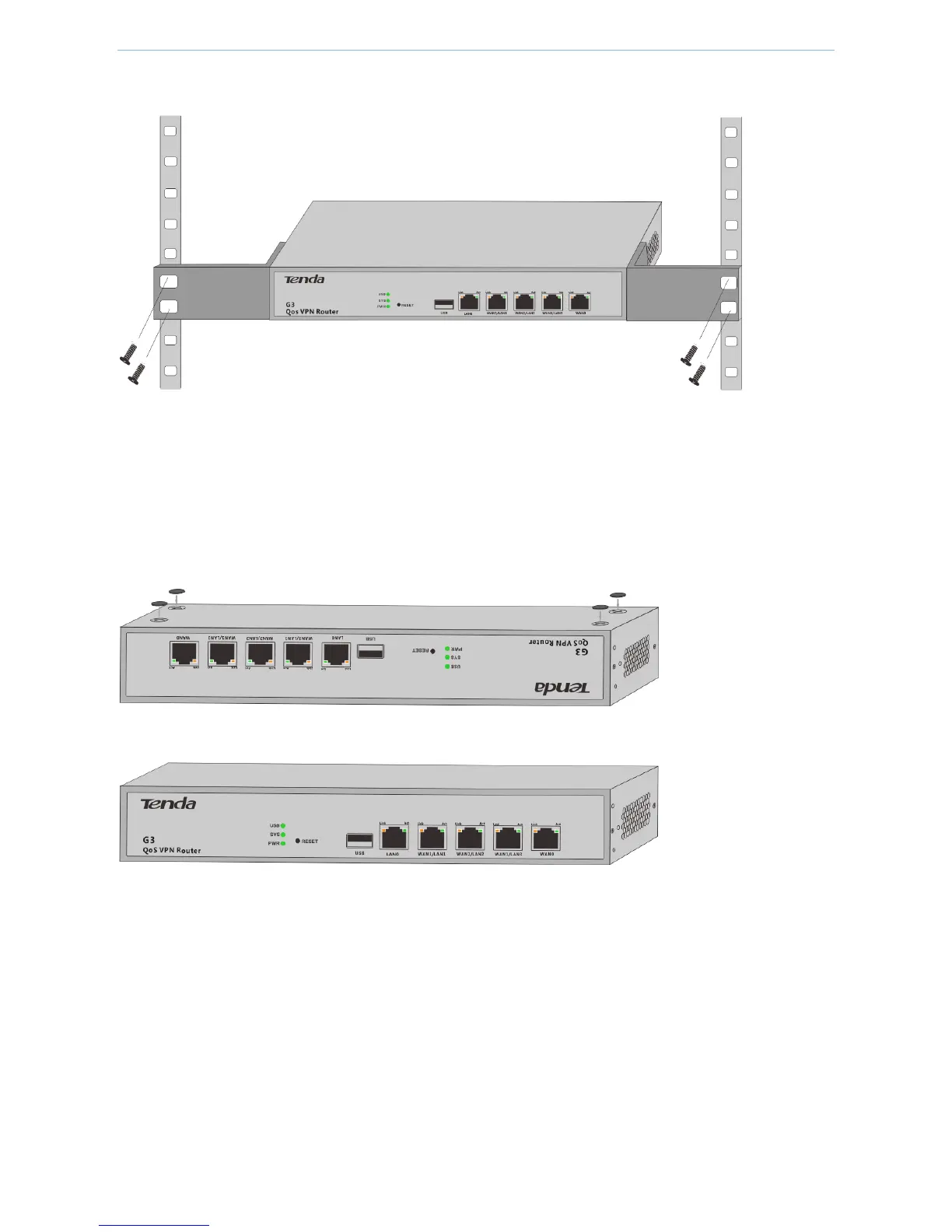

Step 3: Fix the device on the rack with screws (provided by the user).
2.2.2 Tabletop Installation
If the user does not have a 19-inch standard cabinet, the tabletop installation mode can be used.
Step 1: Place the device on the tabletop with the bottom upward and paste 4 foot pads into the round groove at
the bottom of the shell.
Step 2: Turn over the device so that it is placed on the tabletop with its front upward.
2.3 Connecting the Router
Step 1: Connect the Extranet cable to the WAN port of the device.
