6.5 VLAN settings
6.5.1 Overview
The device supports the IEEE 802.1Q VLAN function, so that it can be used in networks with
QVLAN. By default, the function is disabled.
6.5.2 Set up VLAN
Step 1 Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Network > VLAN Settings to enter the configuration page.
Step 2 Enable the function.

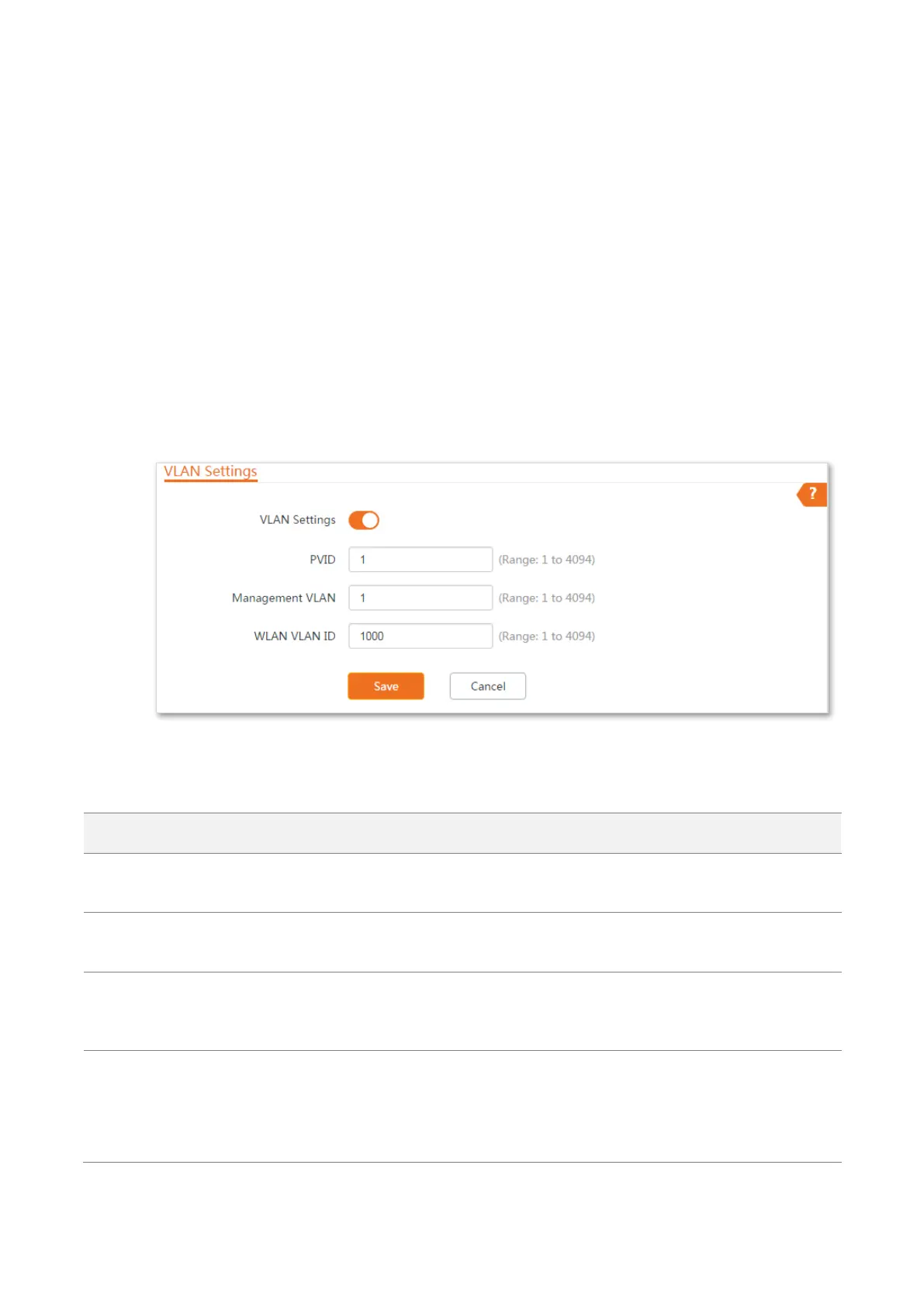

Step 3 Set the parameters as needed.
Step 4 Click Save.
----End
Parameters description
Name
Description
VLAN Settings
It specifies whether to enable the VLAN function of this device. By default, it is
disabled. After the VLAN function is enabled, the PoE/LAN port is used as a trunk port.
PVID
It specifies the ID of the default native VLAN ID of the trunk port. The default ID is 1.
After the VLAN function is enabled, the PoE/LAN port is used as a trunk port.
Management VLAN
It specifies the ID of the management VLAN of this device. The default ID is 1. After
changing the management VLAN, you can manage this device only after connecting
your computer to the new management VLAN.
WLAN VLAN ID
It allows you to set a VLAN ID for the wireless network of this device. By default, it is
set to 1000.
After the VLAN function is enabled, the WLAN interface functions as an access port,
whose PVID is the same as VLAN ID.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
