Tenda O1 User Manual

86
6 Network
6.1 LAN setup
6.1.1 Overview
On the LAN Setup page, you can view the MAC address of the LAN port, configure the device
name, and type of obtaining an IP address and related parameters.
To access the page, choose Network > LAN Setup.

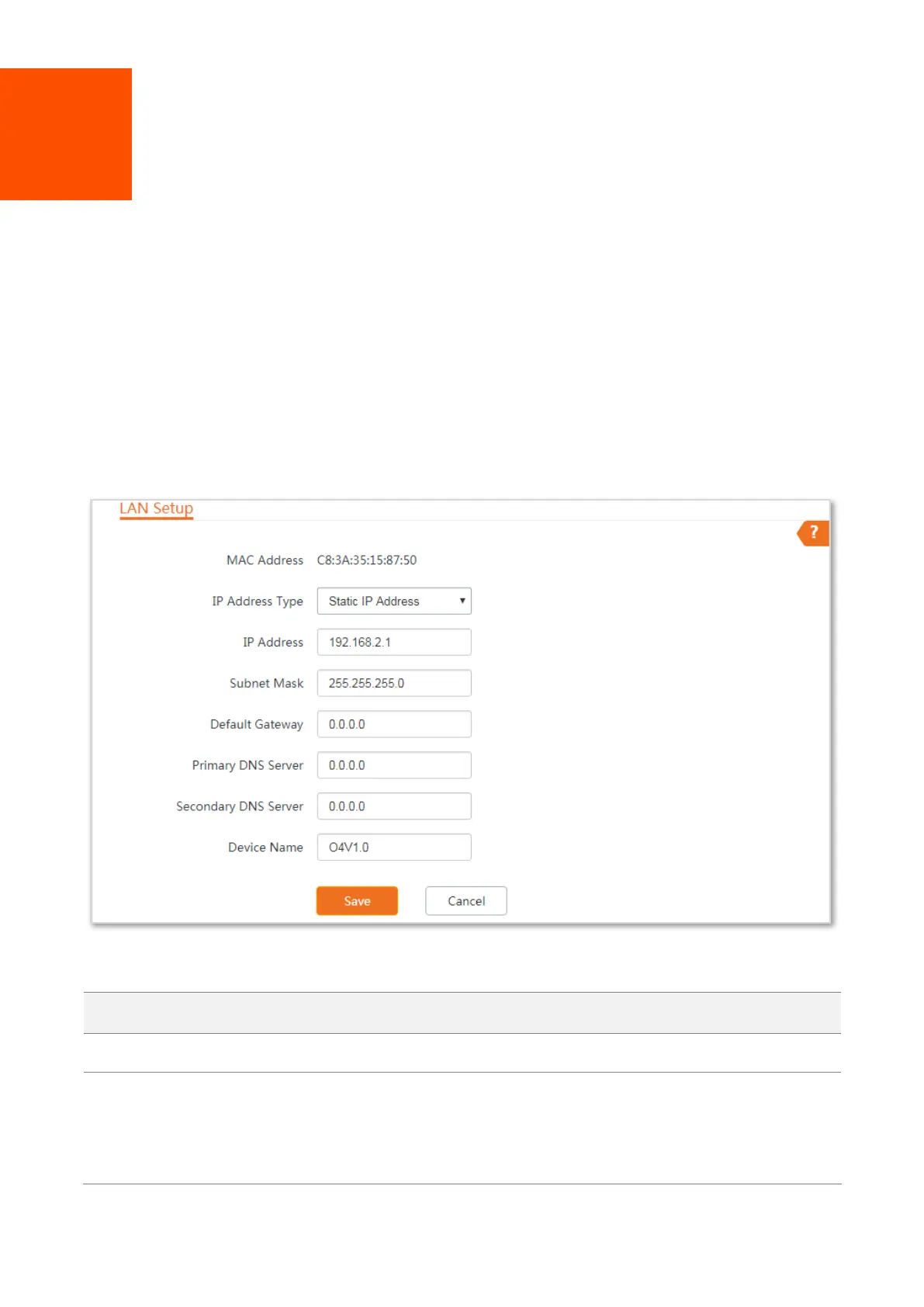

In AP, Client, Universal Repeater, Repeater, and P2MP modes, the page displays:
Parameters description
Name
Description
MAC Address
It specifies the MAC address of LAN port.
IP Address Type
It specifies the type of obtaining an IP address. The default is Static IP Address.

Static IP Address: Specify the IP address, subnet mask, default gateway, and DNS
server IP addresses manually.

DHCP (Dynamic IP Address): The device obtains an IP address, subnet mask,

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
