Tenda O1 User Manual

26
4.2 Client mode
In Client mode, this device serves as a wireless adapter, and connects to a wireless network of
upstream AP. The CPE is unable to be connected by wireless devices in this mode.
Application scenario

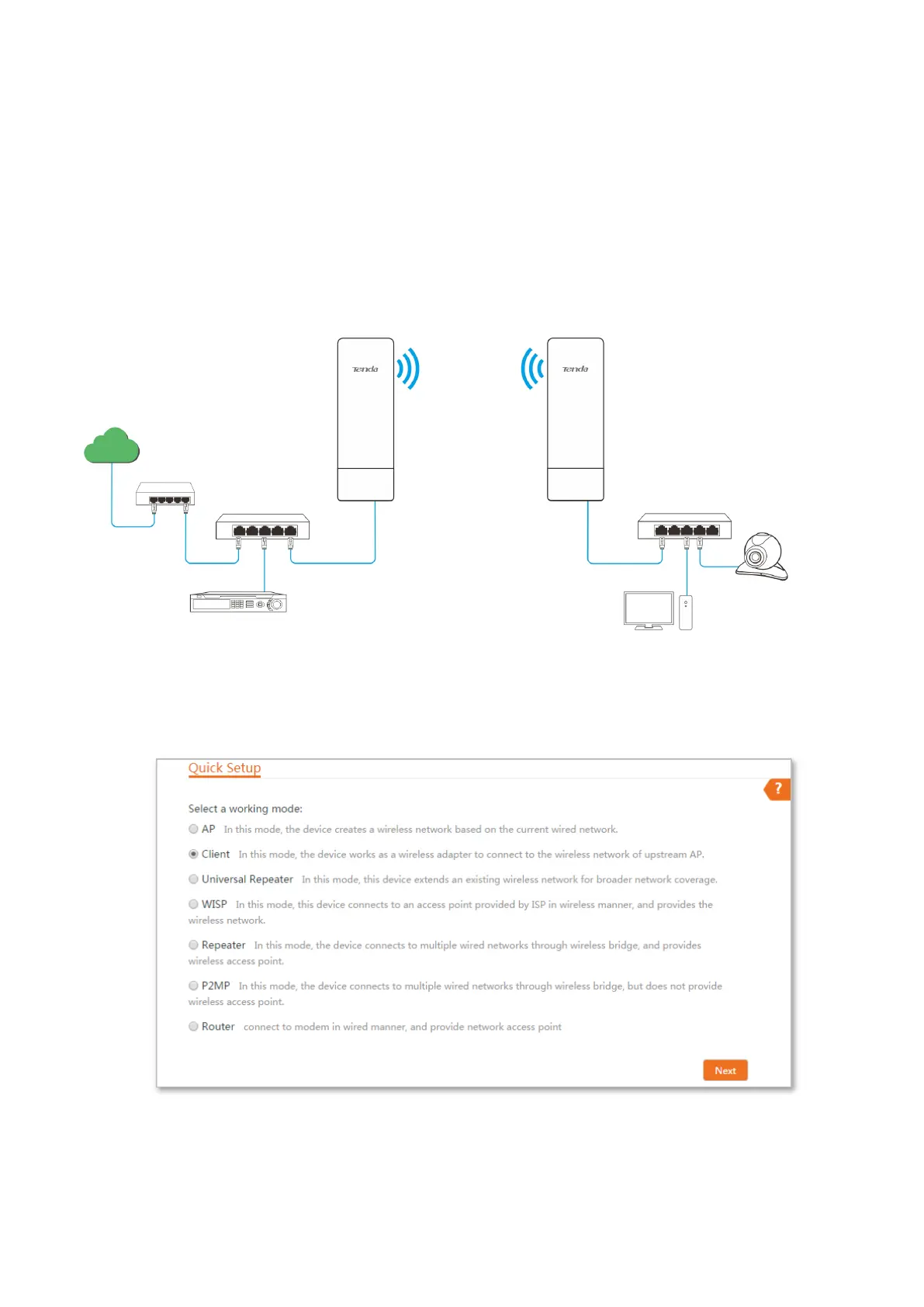

The CPE in AP mode usually works with another CPE in client mode to establish a CCTV
surveillance network, and use the CPE to connect to IP cameras. The network topology is shown as
below:
Configuration procedures:
Step 1 Log in to the web UI of CPE and choose Quick Setup to enter the configuration page.
Step 2 Select Client, and click Next.
AP mode
Client mode
Switch
Switch
IP camera
Computer
NVR
Router
Internet

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
