Tenda O1 User Manual

155
8.6 Network service
8.6.1 DDNS
The DDNS function is only available in WISP or Router mode.
DDNS, dynamic domain name server, enables the dynamic DNS client on the device to deliver the
current WAN IP address to the DNS server. Then the server maps the WAN IP address to a domain
name for dynamic domain name resolution.
This function often works with the port forwarding, DMZ host, and remote web management
functions. Then users can visit an address with a domain name instead of a dynamic WAN IP
address, which makes the visit easier.

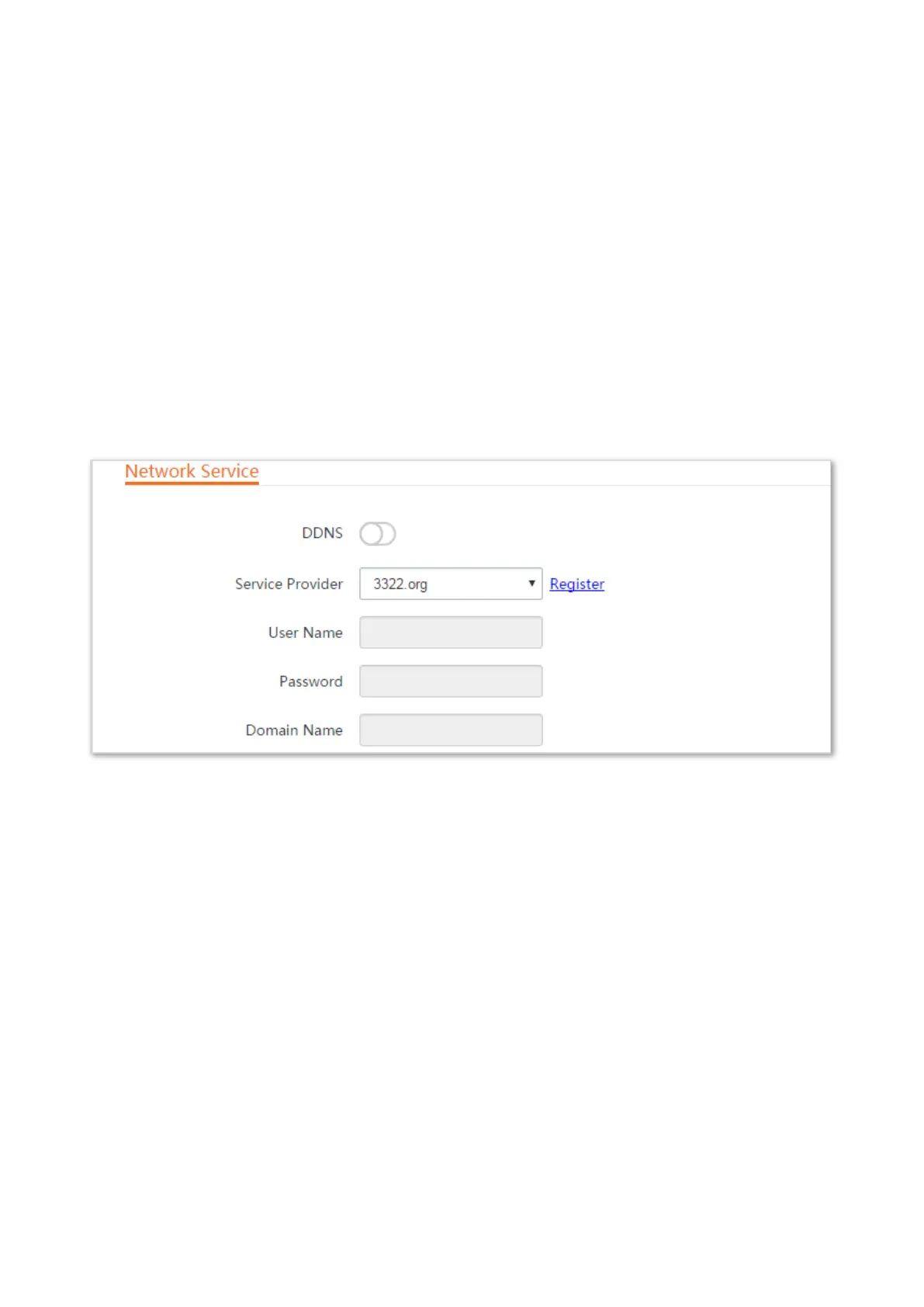

To access the page, choose Advanced > Network Service.
Configuration procedures:
Step 1 Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Advanced > Network Service.
Step 2 Enable the DDNS function.
Step 3 Select a dynamic DNS provider from the drop-down list.
Step 4 Enter the user name, password, and domain name you registered with DDNS service
provider.
Step 5 Click Save on the bottom of this page.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
