Tenda O1 User Manual

37
4.5 Example of universal repeater mode
Network requirement
You already had a wireless router in your office, but in your conference room, the wireless signal is
weak. Now you want to have a larger WiFi network coverage through your conference room.
Solution
Set the CPE to Universal Repeater mode to extend the WiFi network of the router.
Assume that the SSID and password of the router are shown as follows:
− SSID: WiFi_123456
− Password: 12345678

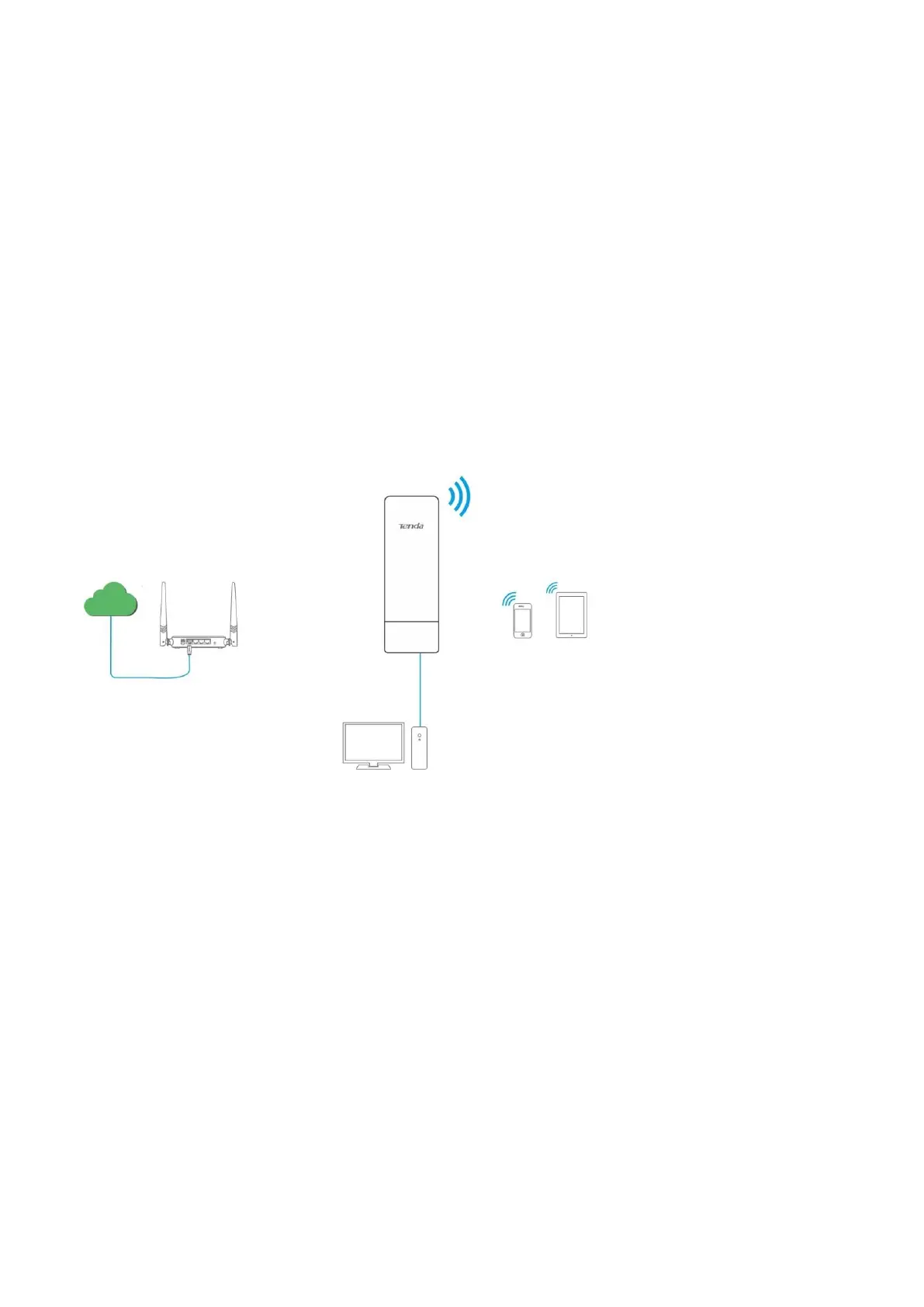

Network topology
Configuration procedures
Step 1 Log in to the web UI of the CPE and choose Quick Setup to enter the configuration page.
Step 2 Select Universal Repeater, and click Next.
SSID: WiFi_123456
Password: 12345678
Universal repeater mode
Router
Internet

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
