4.1 AP mode
In AP mode, this device connects to a wired network, and provides a wireless network for wireless
clients.

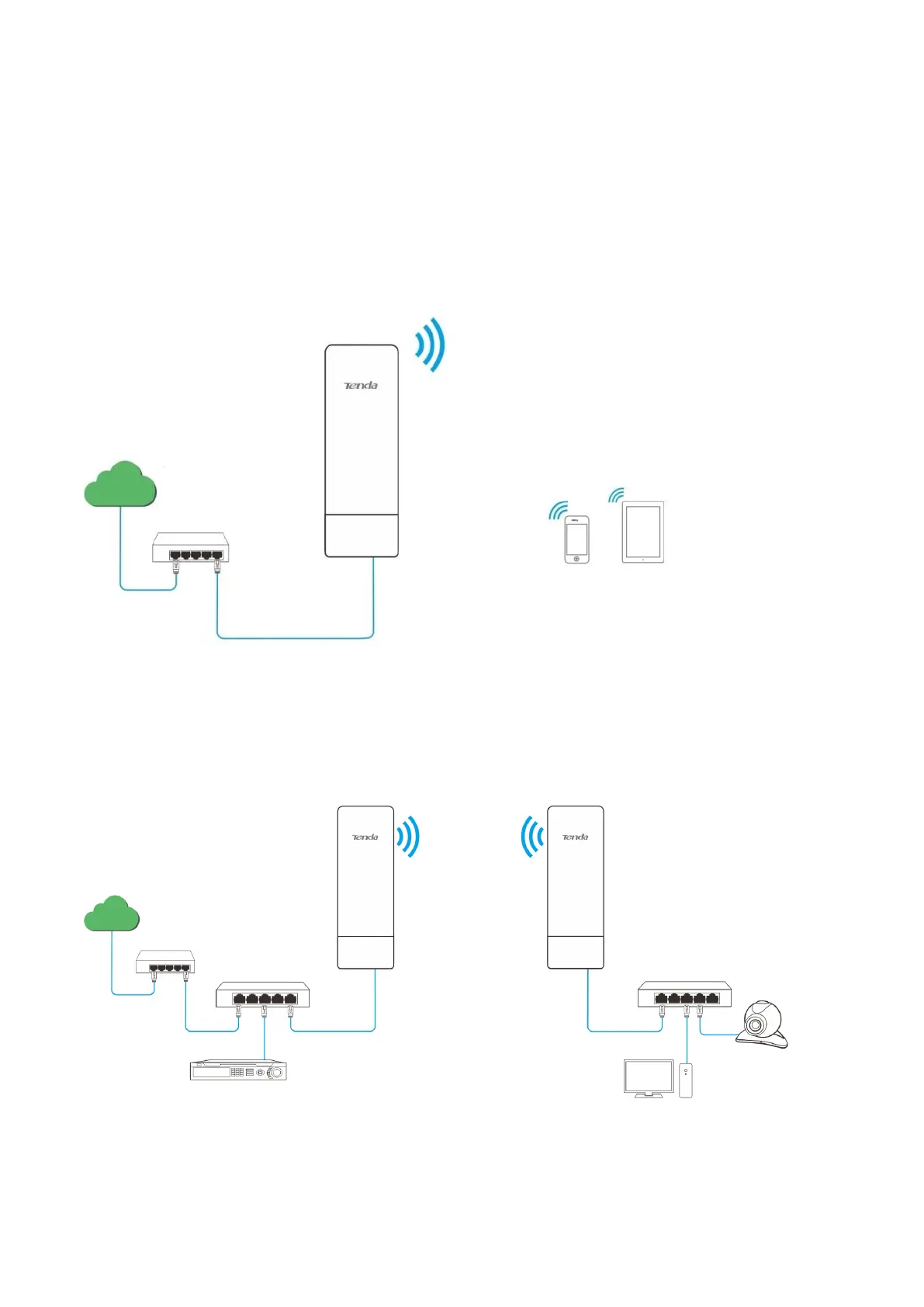

Application scenario 1
The CPE can be used to transform a wired network to a wireless one for your wireless devices to
access the internet. The network topology is shown as below:
Application scenario 2
The CPE in AP mode usually works with another CPE in client mode to establish a CCTV
surveillance network. Set one CPE to AP mode and connect it to the NVR, and the other to Client
mode, and connect it to an IP camera. The network topology is shown as below:
AP mode
AP mode
Client mode
Switch
NVR
Computer
Switch
IP Camera
Router
Router
Internet
Internet

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
